Pinpoint Test D: Transmission Control Indicator Lamp (TCIL) Is Not Operating Properly

WARNING: This page is about a different variant/trim than selected.

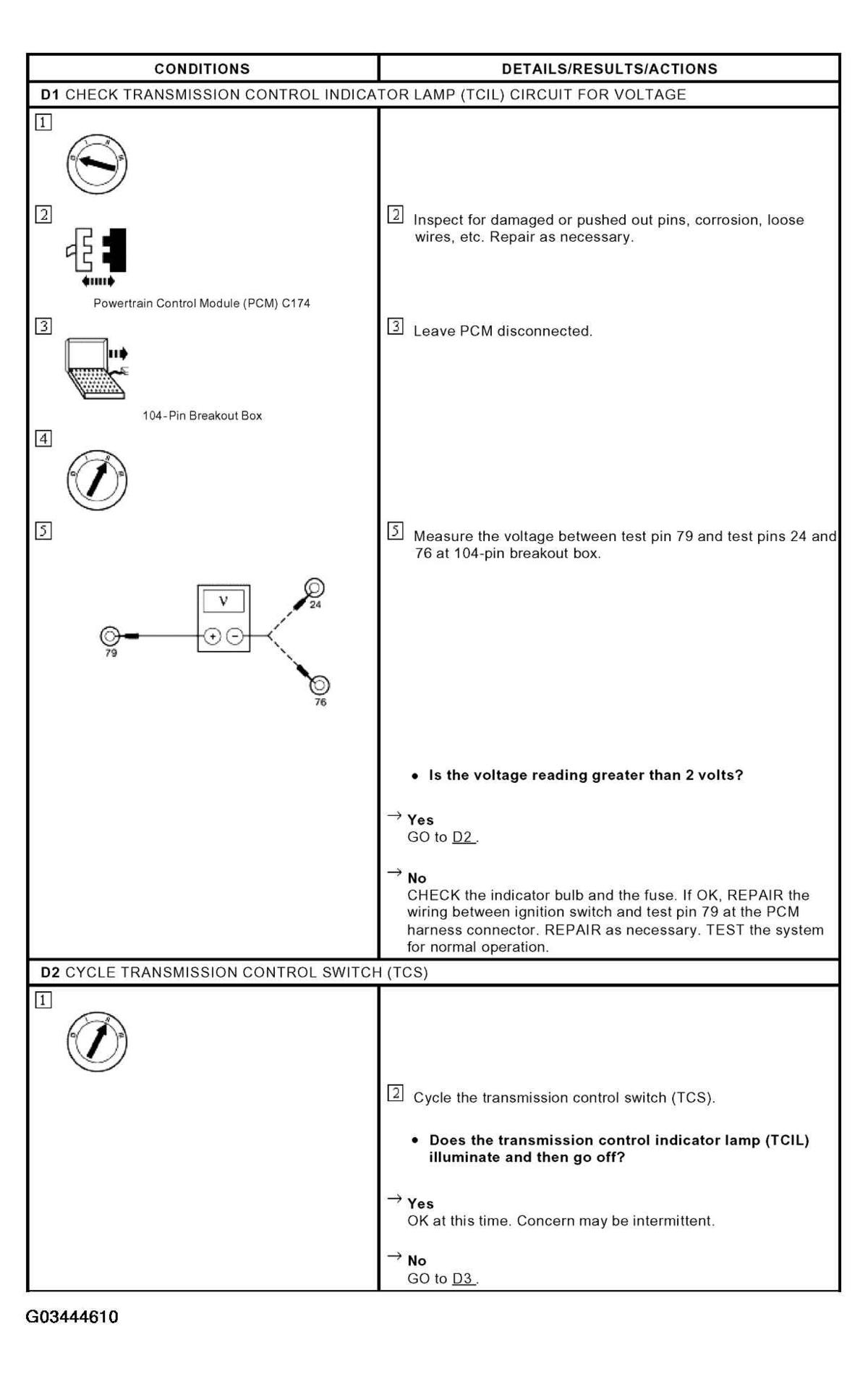

Fig 1: Pinpoint Test D: Transmission Control Indicator Lamp (TCIL) Is Not Operating Properly (D1-D2)

Courtesy of FORD MOTOR CO.

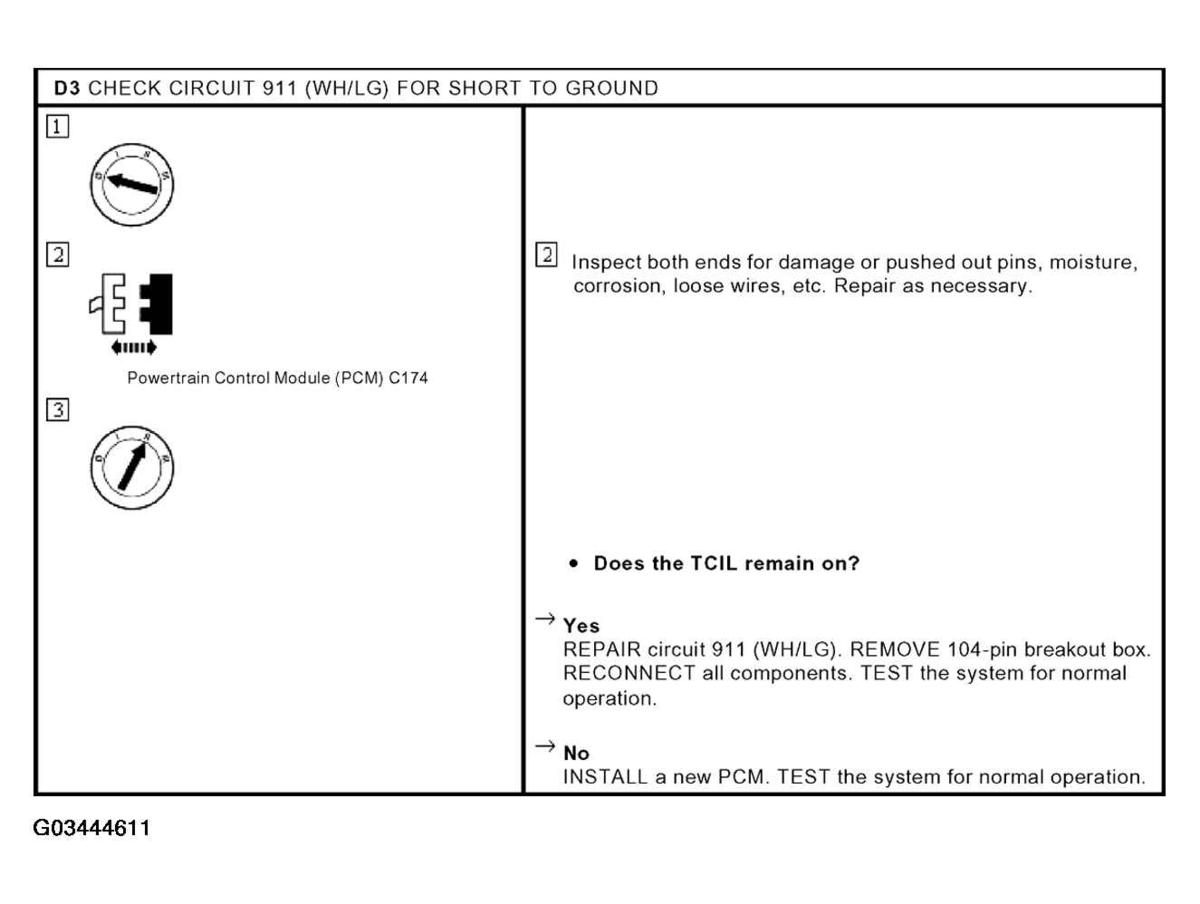

Fig 2: Pinpoint Test D: Transmission Control Indicator Lamp (TCIL) Is Not Operating Properly (D3)

Courtesy of FORD MOTOR CO.
