Pinpoint Test F: Steering Wheel Rotation Not Detected

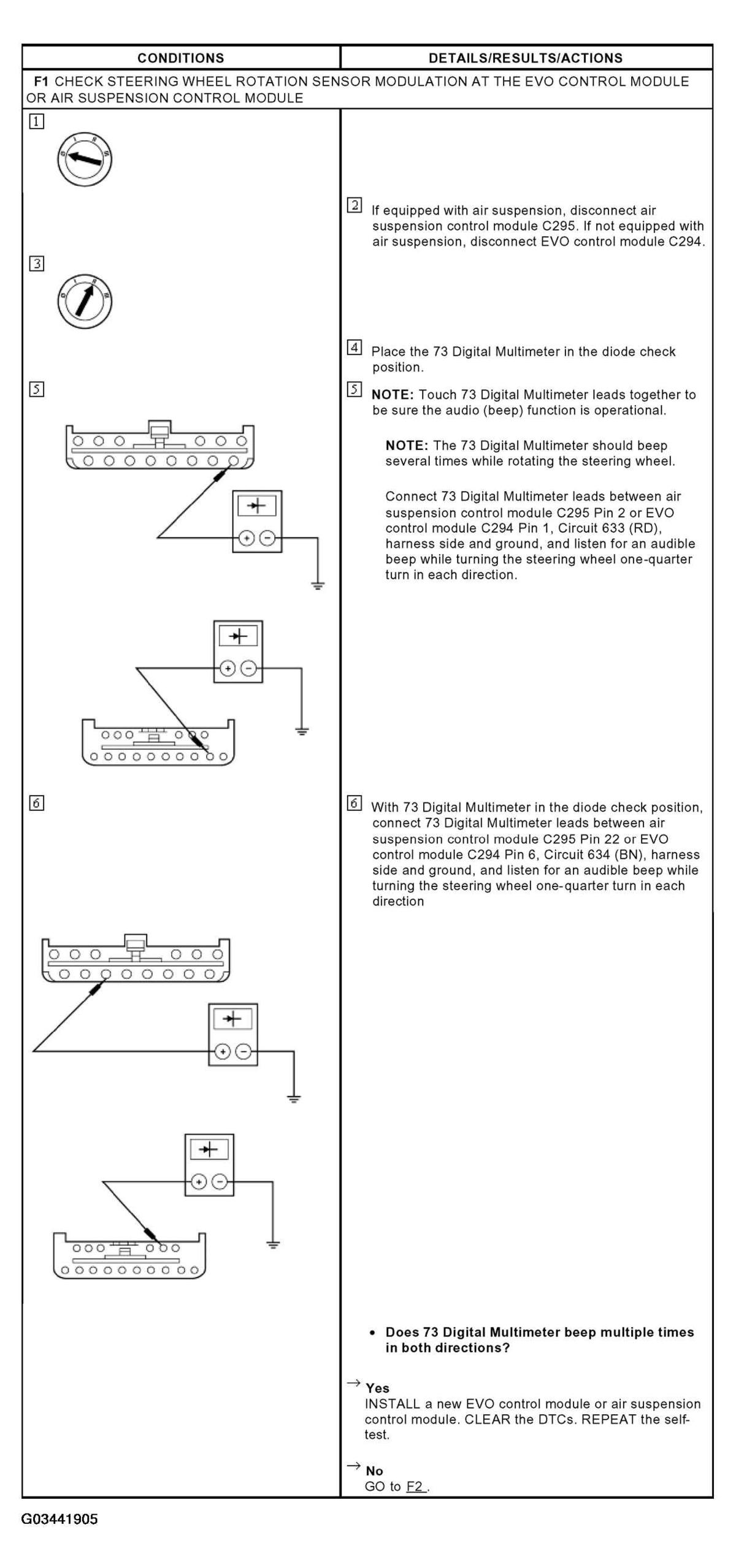

Fig 1: Pinpoint Test F: Steering Wheel Rotation Not Detected (Step F1)
G03441905Courtesy of FORD MOTOR CO.

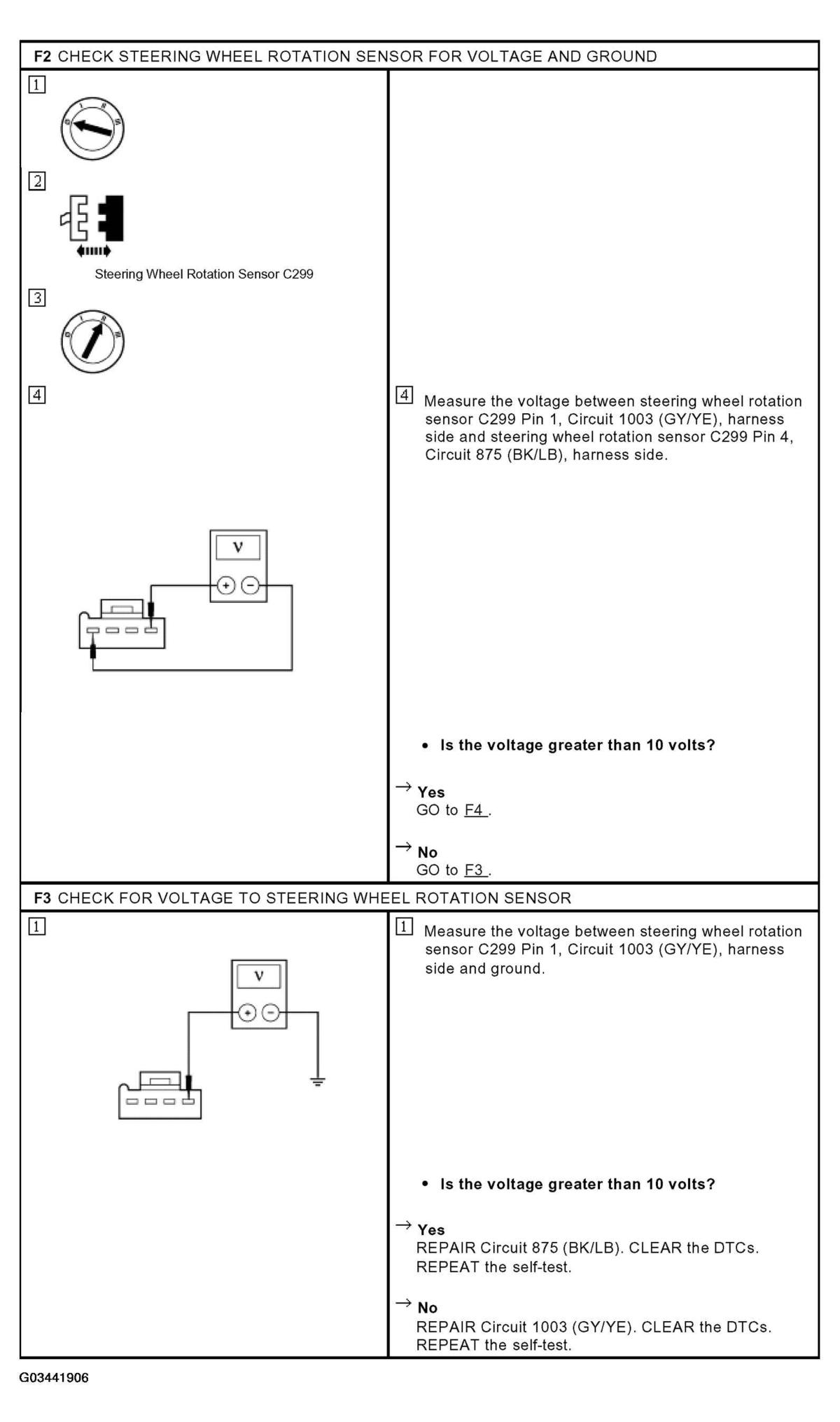

Fig 2: Pinpoint Test F: Steering Wheel Rotation Not Detected (Steps F2 - F3)
G03441906Courtesy of FORD MOTOR CO.

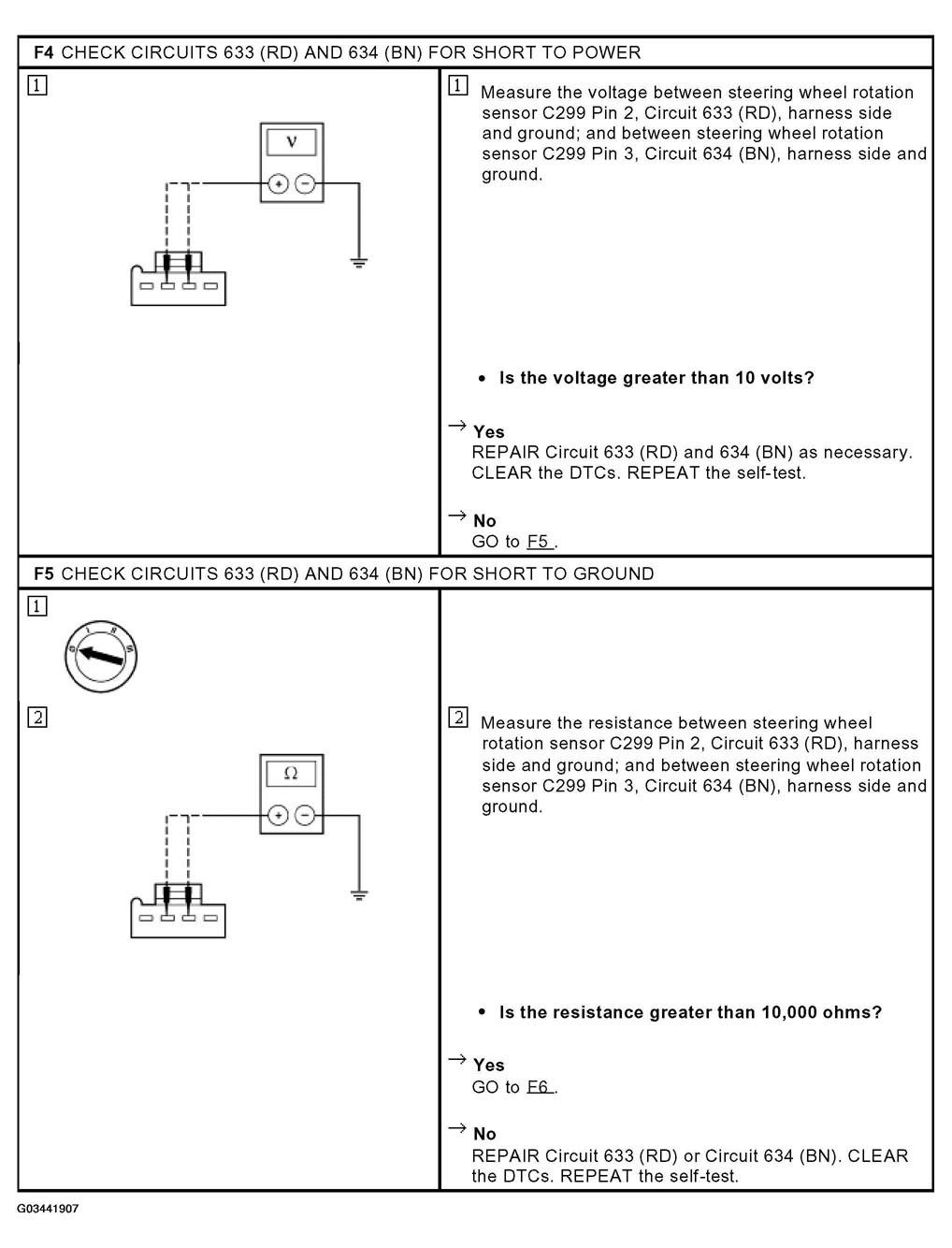

Fig 3: Pinpoint Test F: Steering Wheel Rotation Not Detected (Steps F4 - F5)
G03441907Courtesy of FORD MOTOR CO.
Fig 4: Pinpoint Test F: Steering Wheel Rotation Not Detected (Step F5)
G03441908Courtesy of FORD MOTOR CO.
