Pinpoint Test I: Steering System Noise

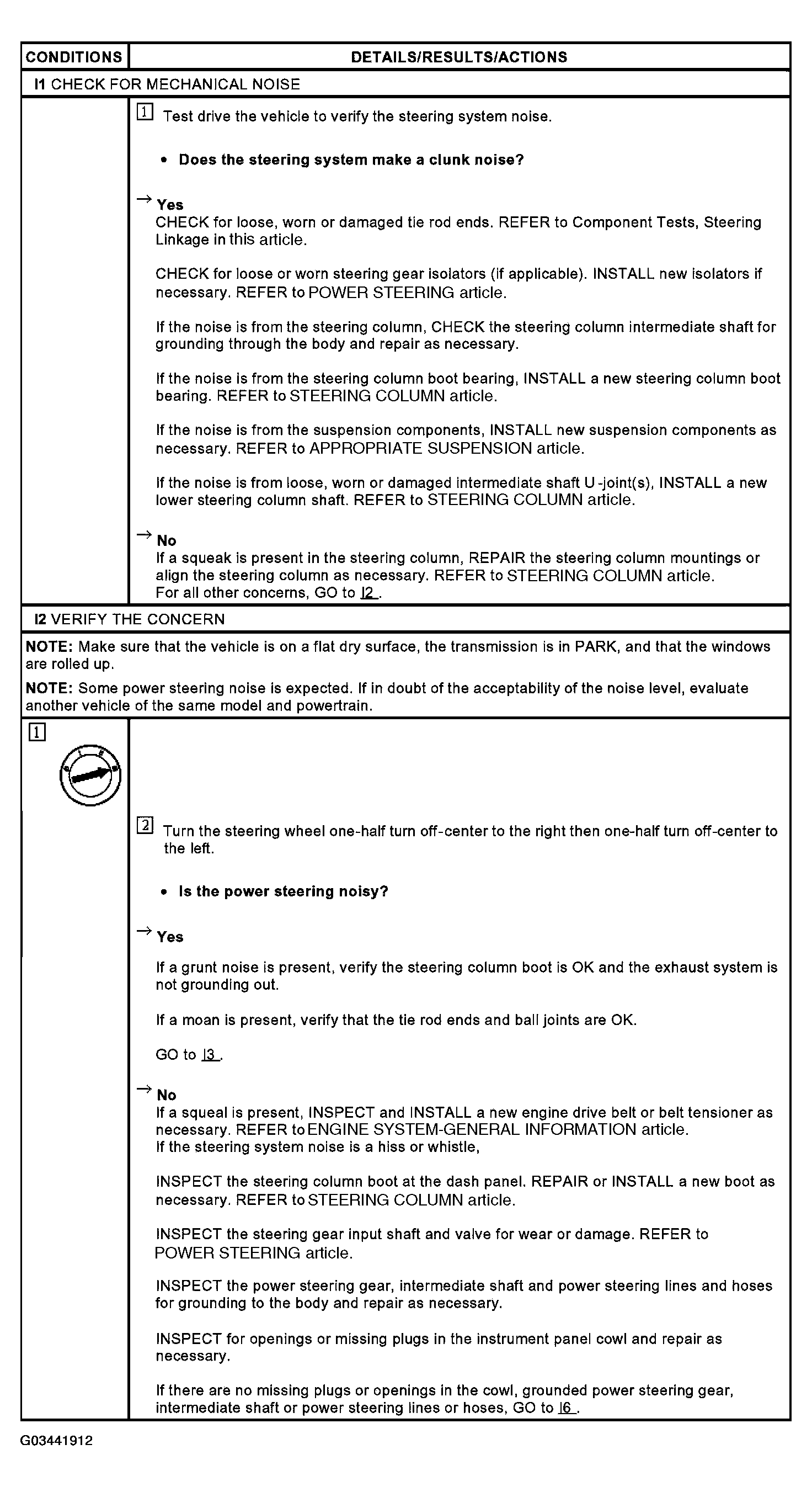

Fig 1: Pinpoint Test I: Steering System Noise (Steps I1 - I2)
G03441912Courtesy of FORD MOTOR CO.

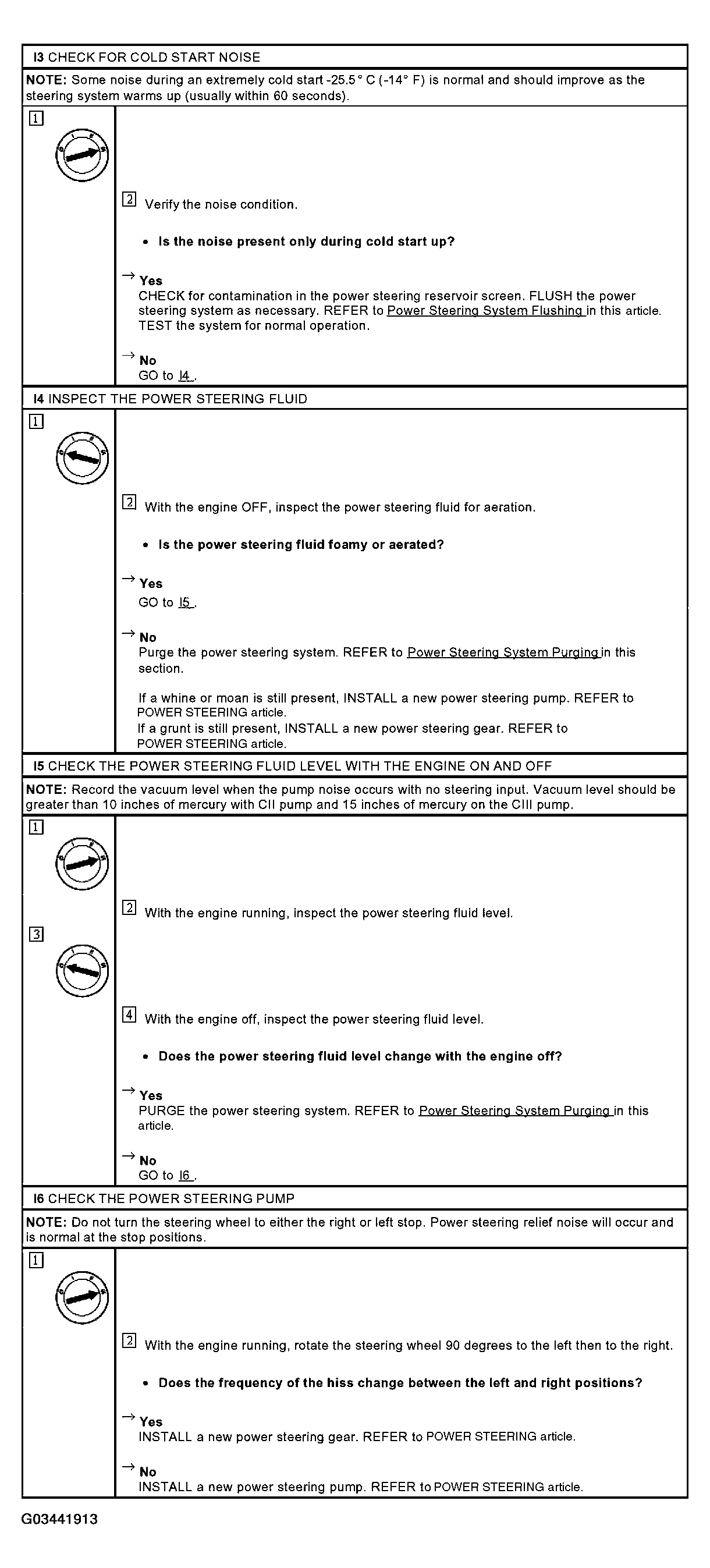

Fig 2: Pinpoint Test I: Steering System Noise (Steps I3 - I6)
G03441913Courtesy of FORD MOTOR CO.
