WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

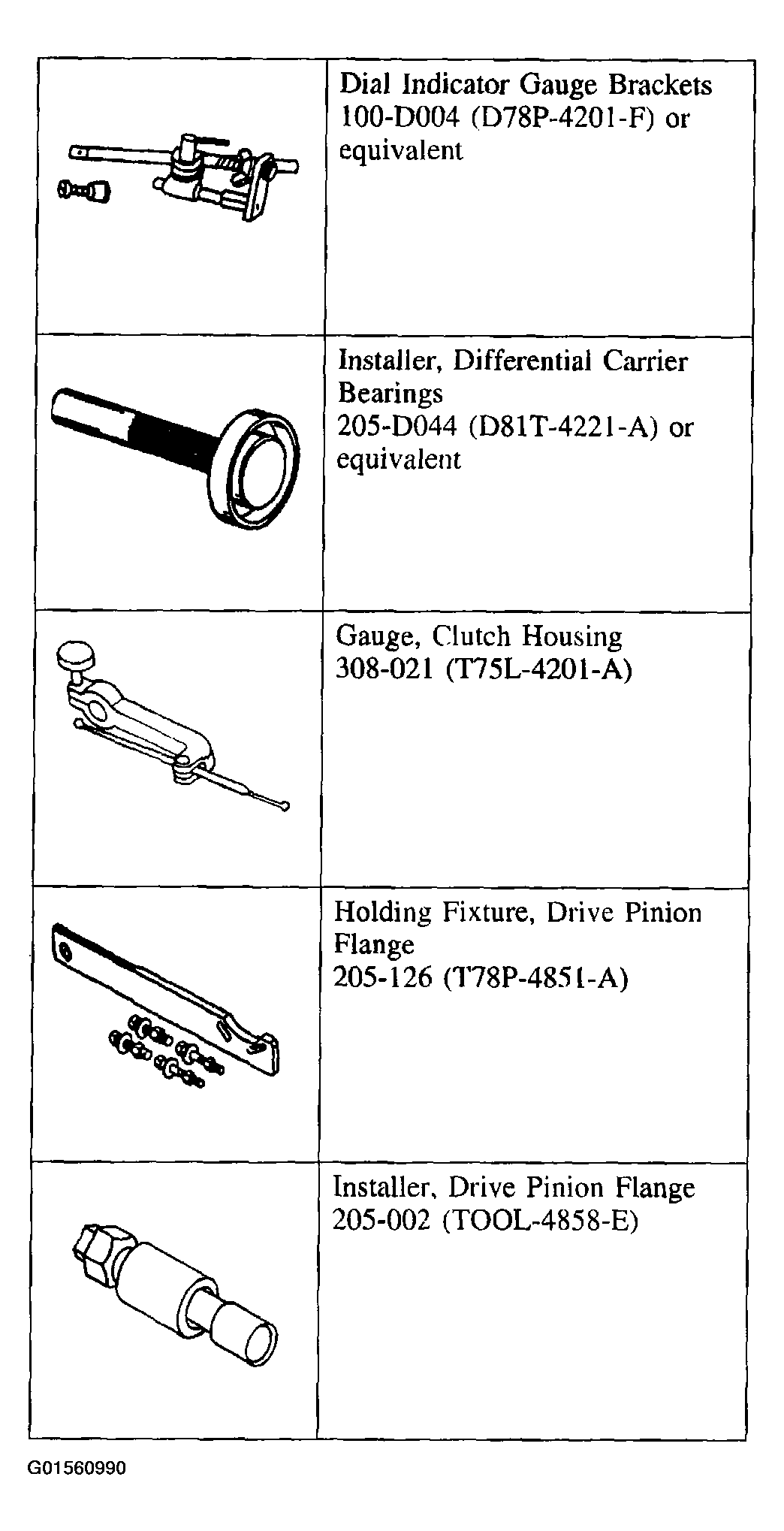

Fig 1: Identifying Special Tool - Axle - Front Drive (1 Of 5)
Courtesy of FORD MOTOR CO.

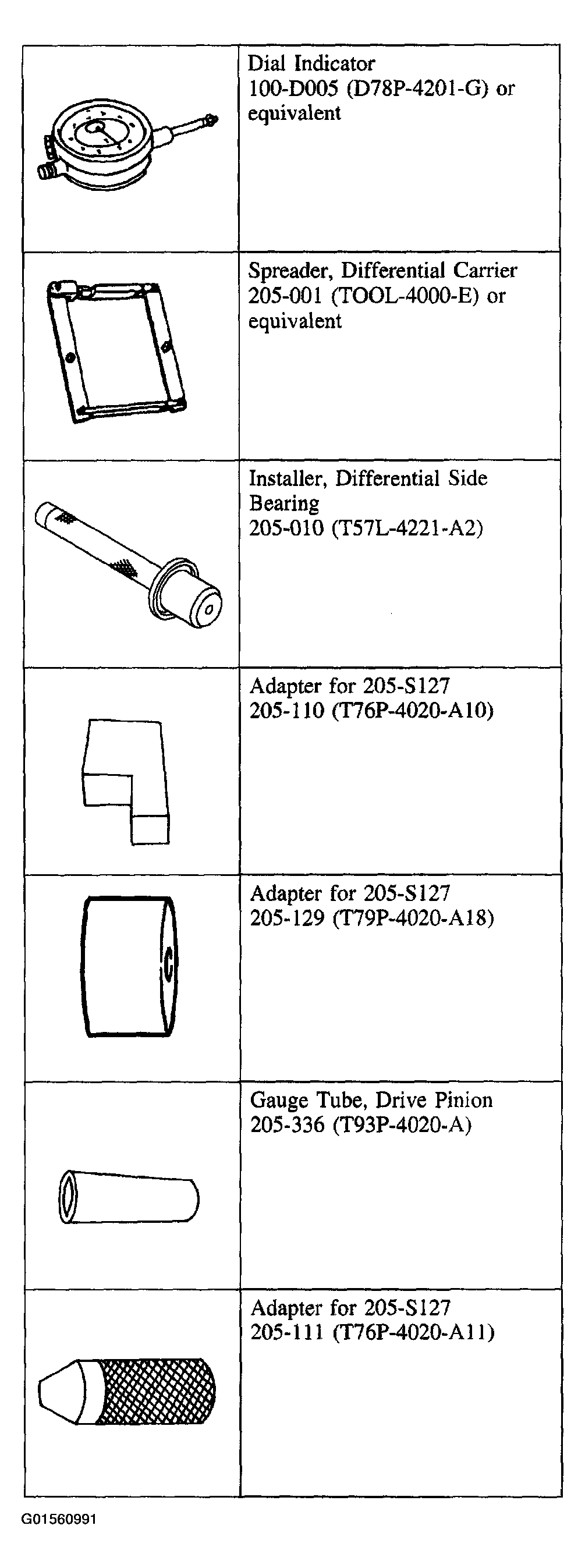

Fig 2: Identifying Special Tool - Axle - Front Drive (2 Of 5)
Courtesy of FORD MOTOR CO.

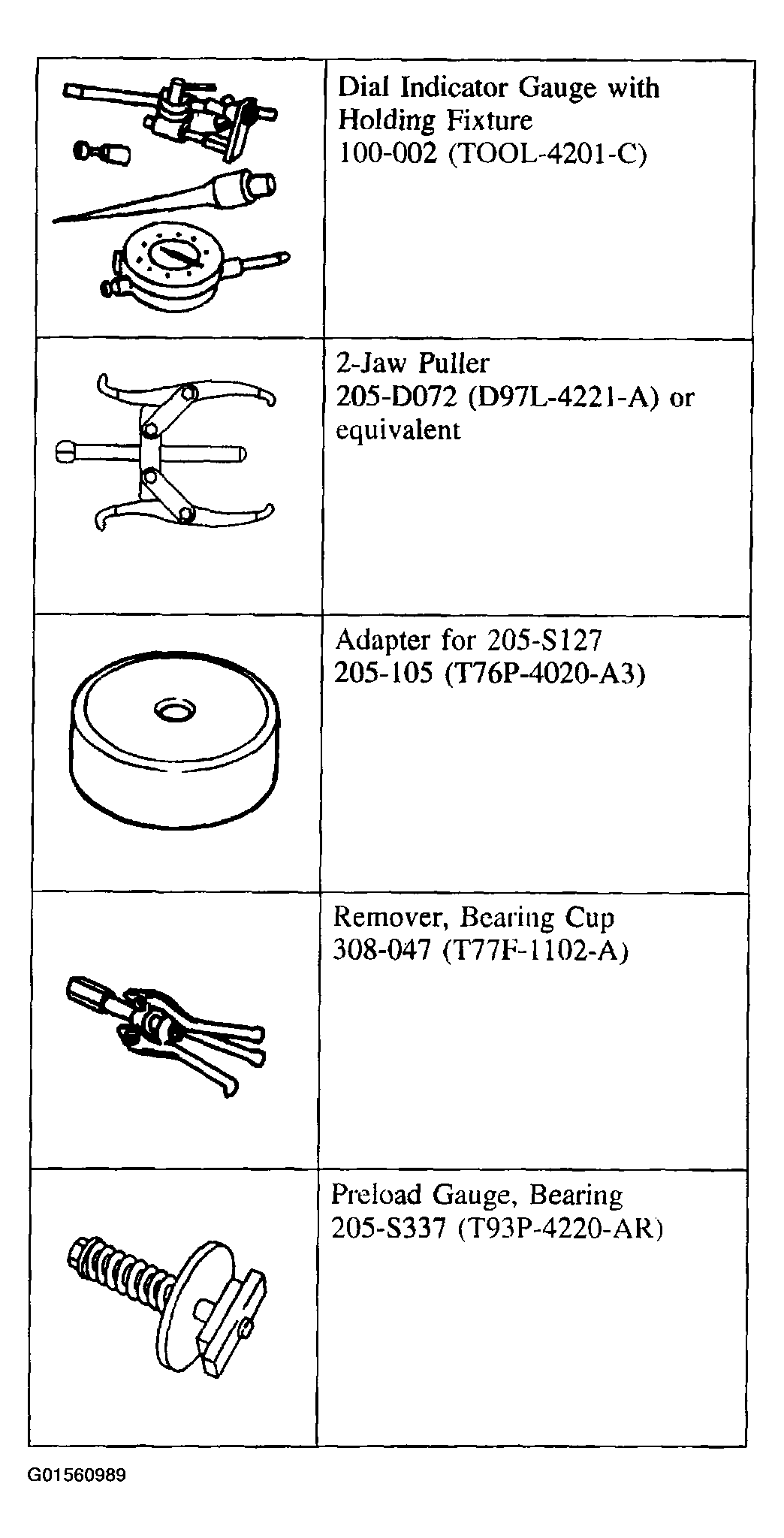

Fig 3: Identifying Special Tool - Axle - Front Drive (3 Of 5)
Courtesy of FORD MOTOR CO.
Fig 4: Identifying Special Tool - Axle - Front Drive (4 Of 5)
Courtesy of FORD MOTOR CO.

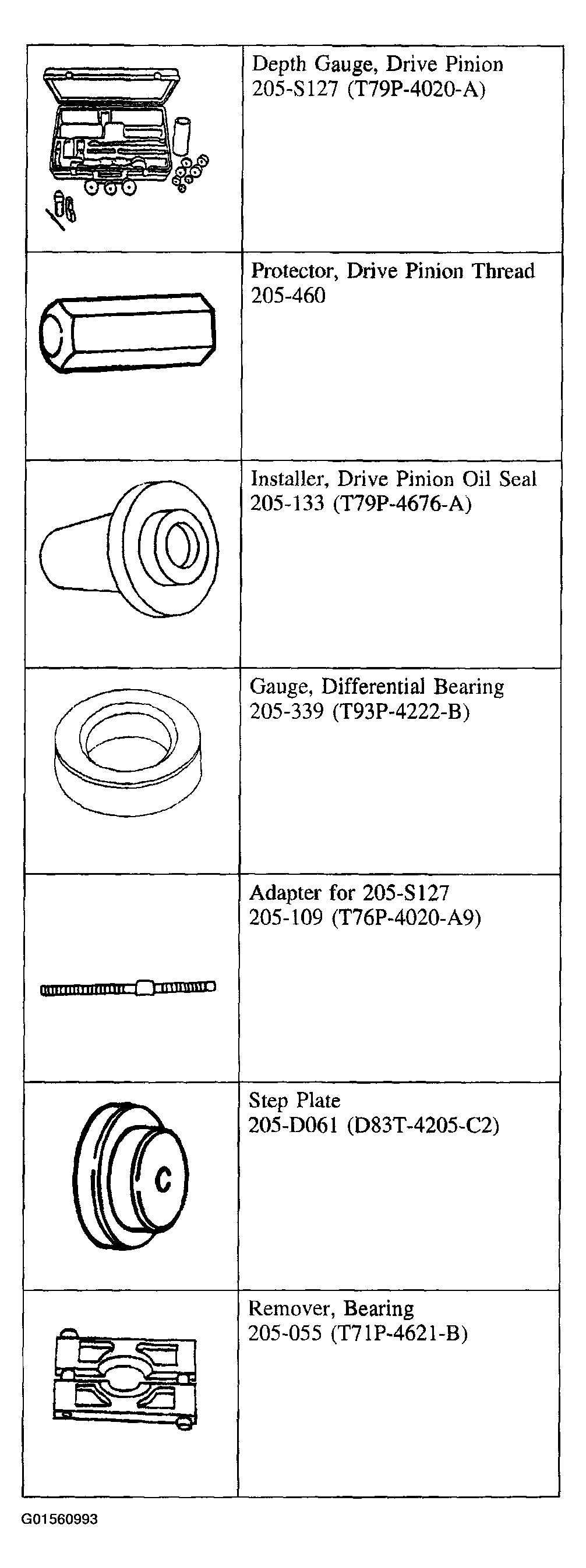

Fig 5: Identifying Special Tool - Axle - Front Drive (5 Of 5)
Courtesy of FORD MOTOR CO.

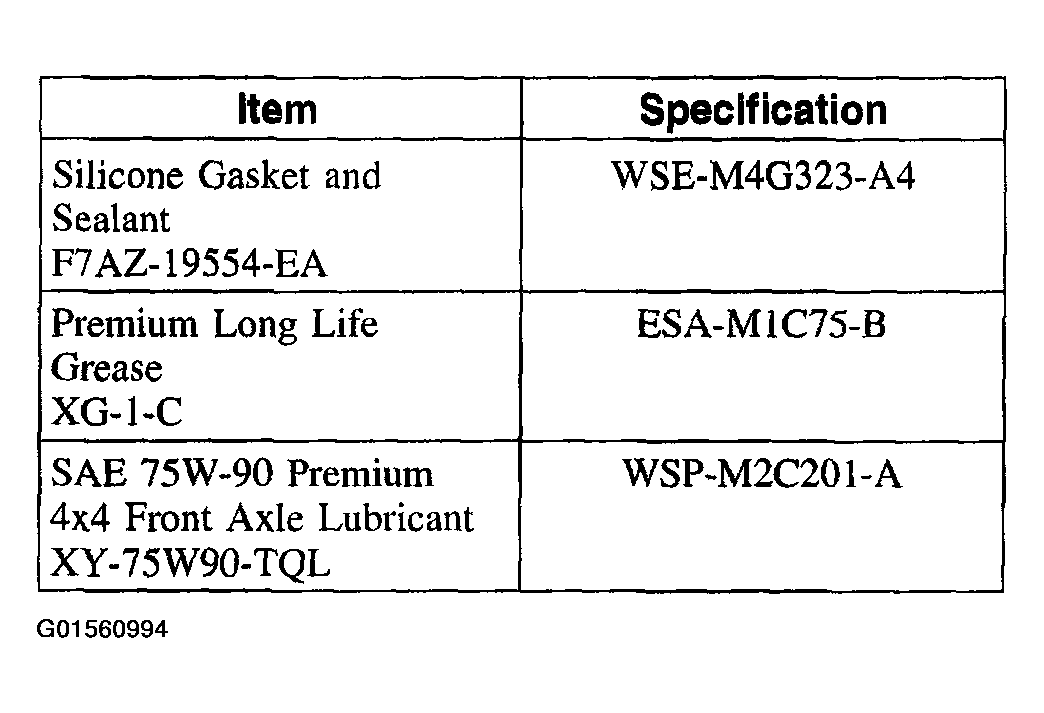

Fig 6: Identifying Material Specification (Axle - Front Drive)
