Forward Drive System Components

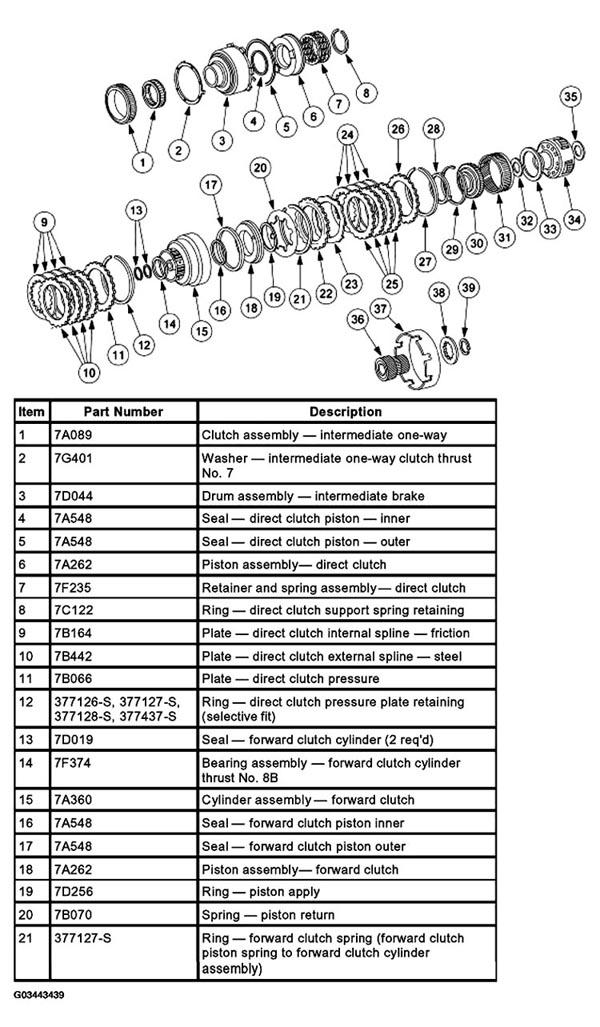

Fig 1: Identifying Forward Drive System Components (1 Of 2)
G03443439Courtesy of FORD MOTOR CO.

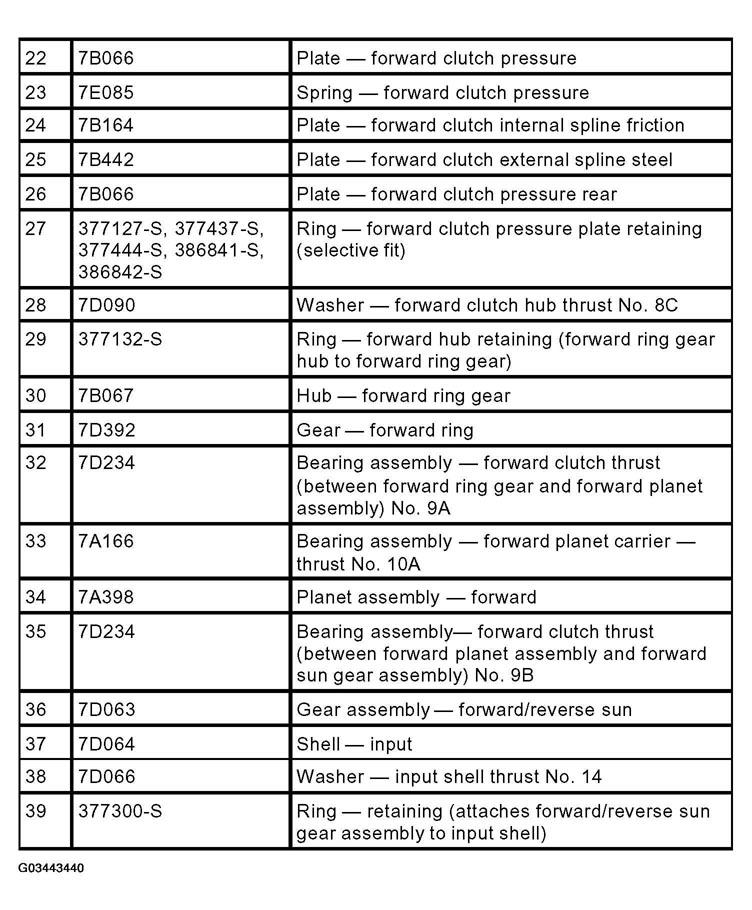

Fig 2: Identifying Forward Drive System Components (2 Of 2)
G03443440Courtesy of FORD MOTOR CO.
