Intermediate/Overdrive Cylinder Assembly: Disassembly

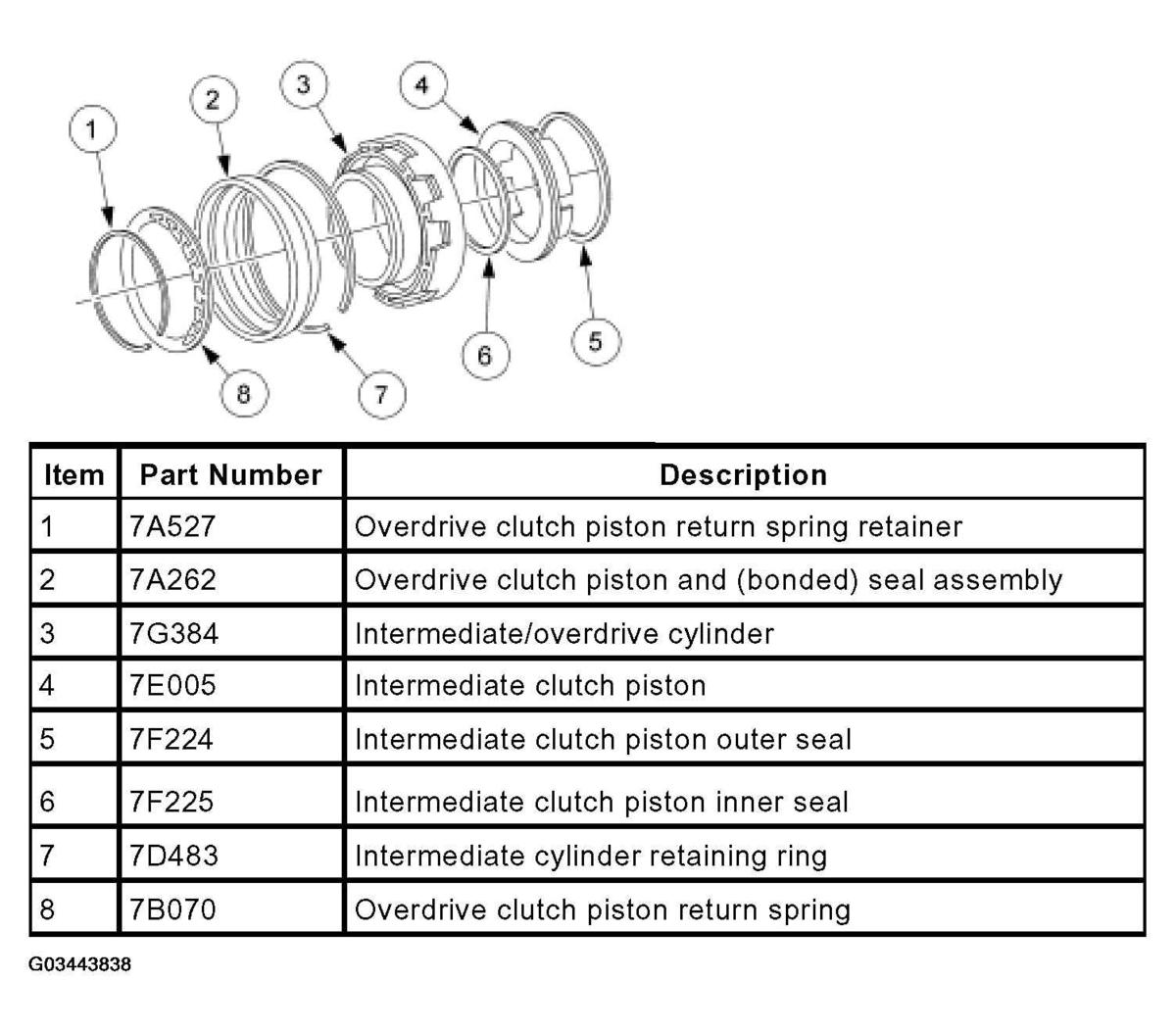

Fig 1: Disassembled View Of Intermediate/Overdrive Cylinder Assembly

Courtesy of FORD MOTOR CO.

1. Using the special tools, compress the overdrive clutch piston return spring.

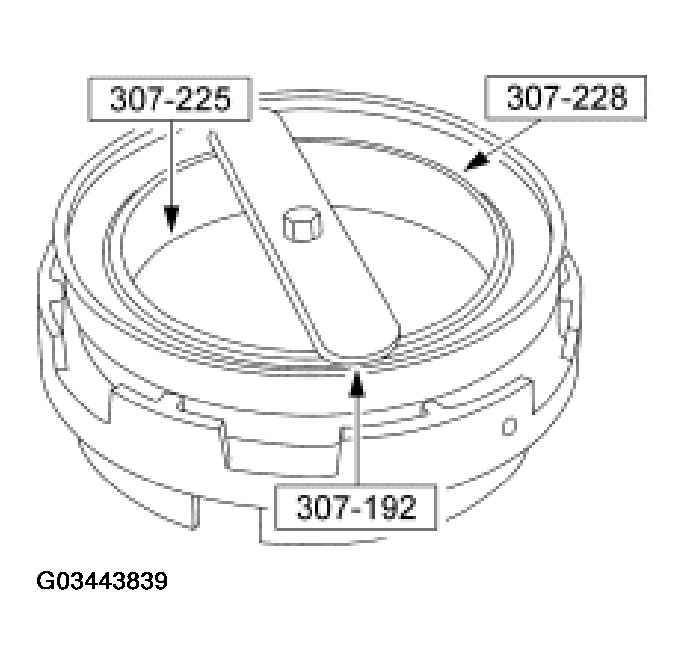

   Fig 2: Compressing Overdrive Clutch Piston Return Spring

   Courtesy of FORD MOTOR CO.
2. Remove the overdrive clutch piston return spring retainer. Remove the tools.

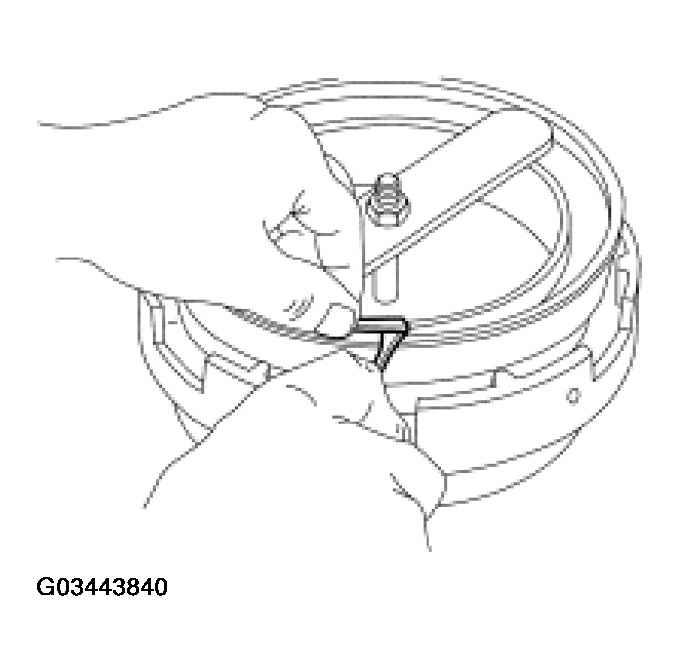

   Fig 3: Removing Overdrive Clutch Piston Return Spring Retainer

   Courtesy of FORD MOTOR CO.
3. Remove the overdrive clutch piston return spring.

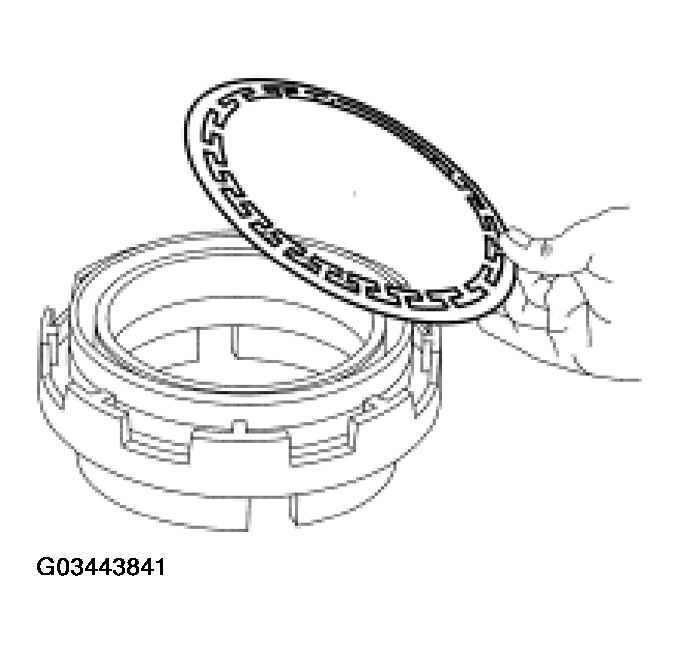

   Fig 4: Removing Overdrive Clutch Piston Return Spring

   Courtesy of FORD MOTOR CO.
NOTE: The overdrive piston seals are bonded to the piston. If the seals are damaged, replace the piston assembly.

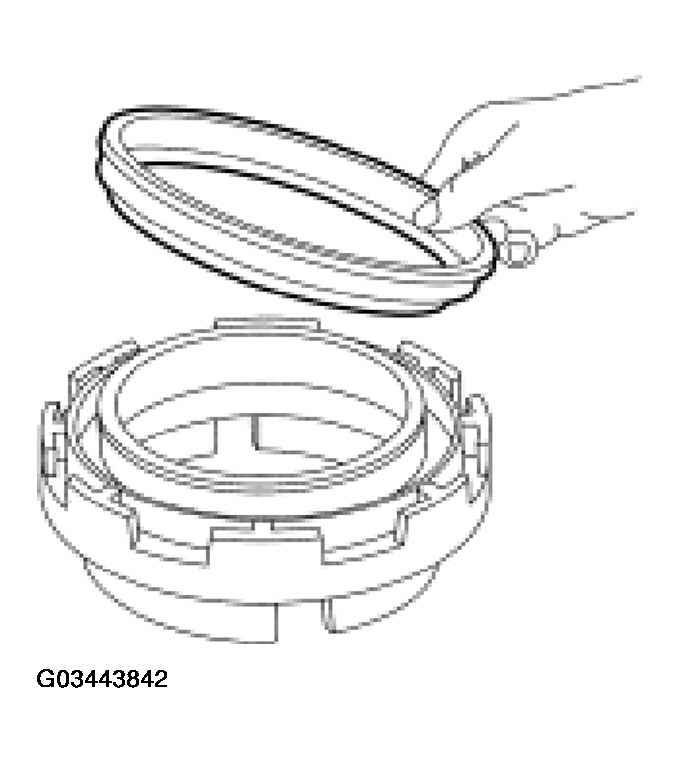

Fig 5: Removing Overdrive Clutch Piston & Seal Assembly
Courtesy of FORD MOTOR CO.
4. Remove the overdrive clutch piston and seal assembly.
5. Remove the intermediate clutch piston.

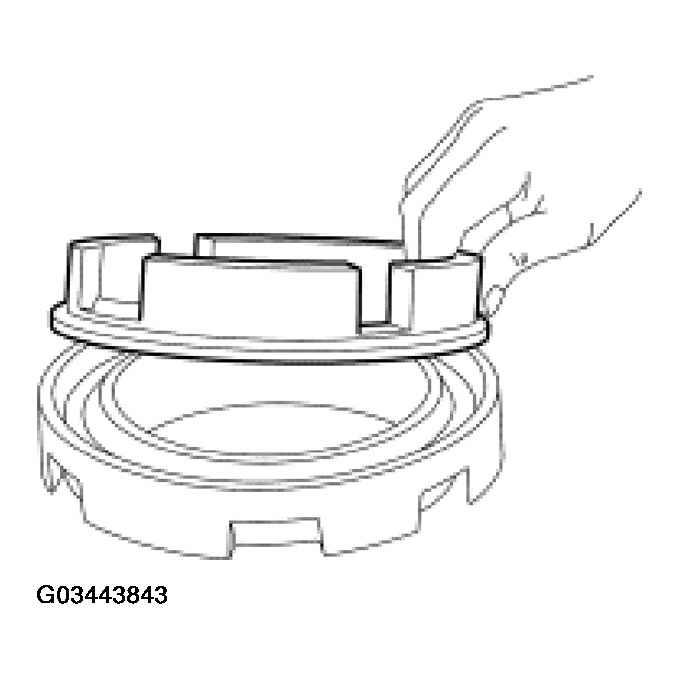

   Fig 6: Removing Intermediate Clutch Piston

   Courtesy of FORD MOTOR CO.
6. Using the special tool, remove the intermediate clutch piston inner seal.

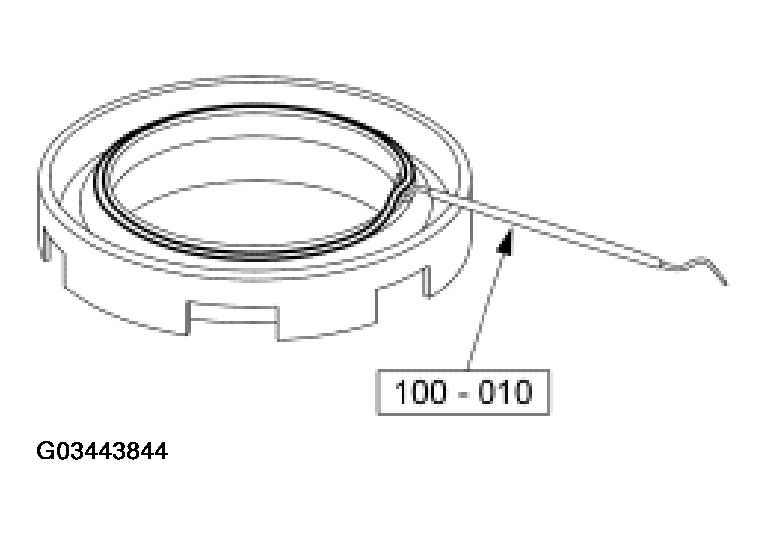

   Fig 7: Removing Intermediate Clutch Piston Inner Seal

   Courtesy of FORD MOTOR CO.
7. Using the special tool, remove the intermediate clutch piston outer seal.

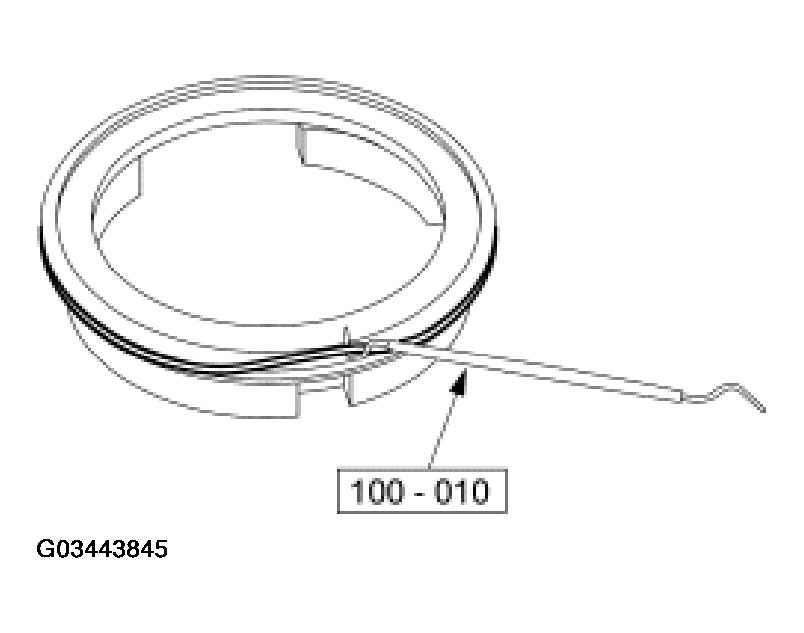

   Fig 8: Removing Intermediate Clutch Piston Outer Seal

   Courtesy of FORD MOTOR CO.
