Home >> Ford >> 2002 >> Explorer 2WD V6-4.0L VIN E >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Upper End
April 5, 2026: LEMON Manuals is launched! Read the announcement.

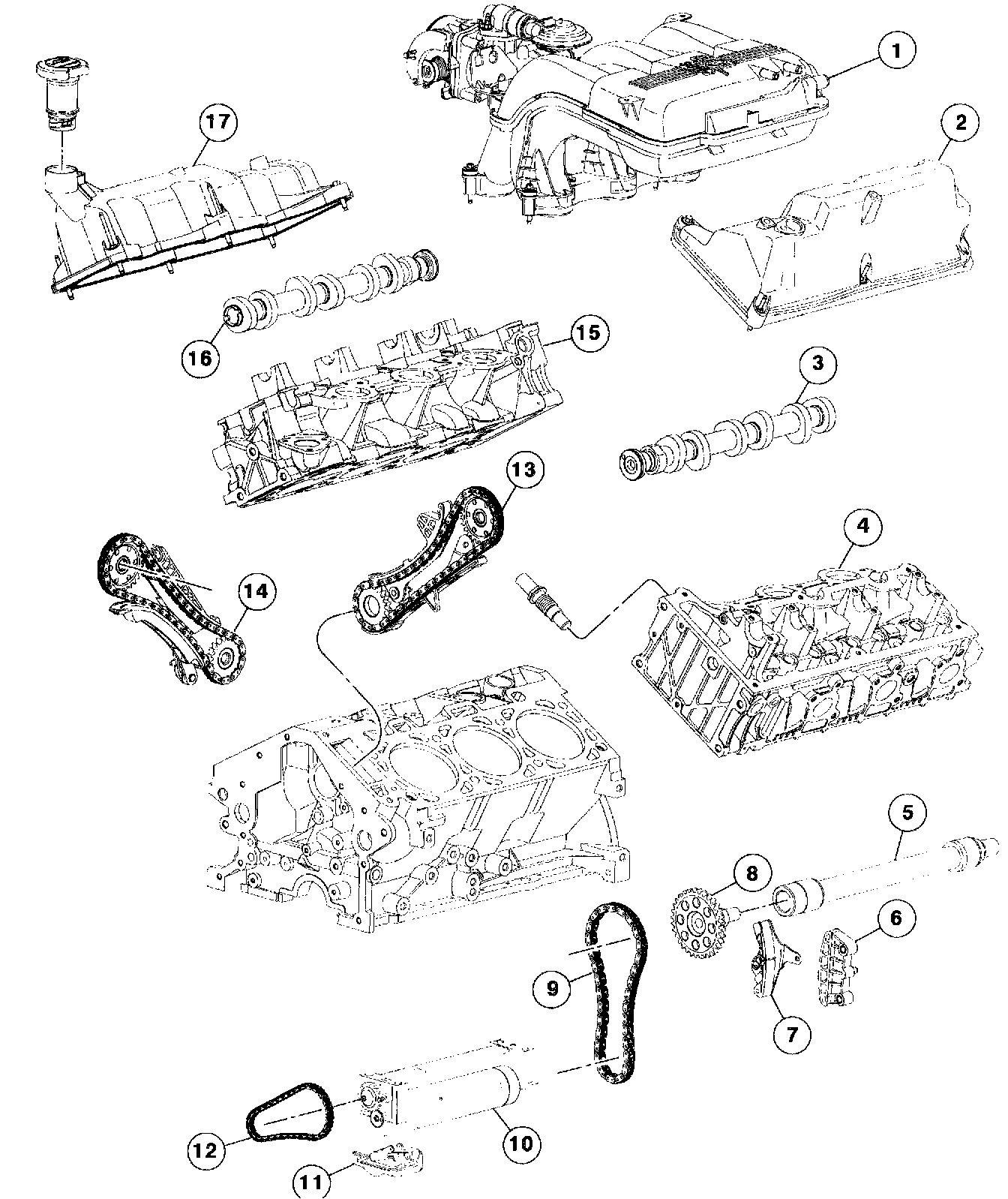

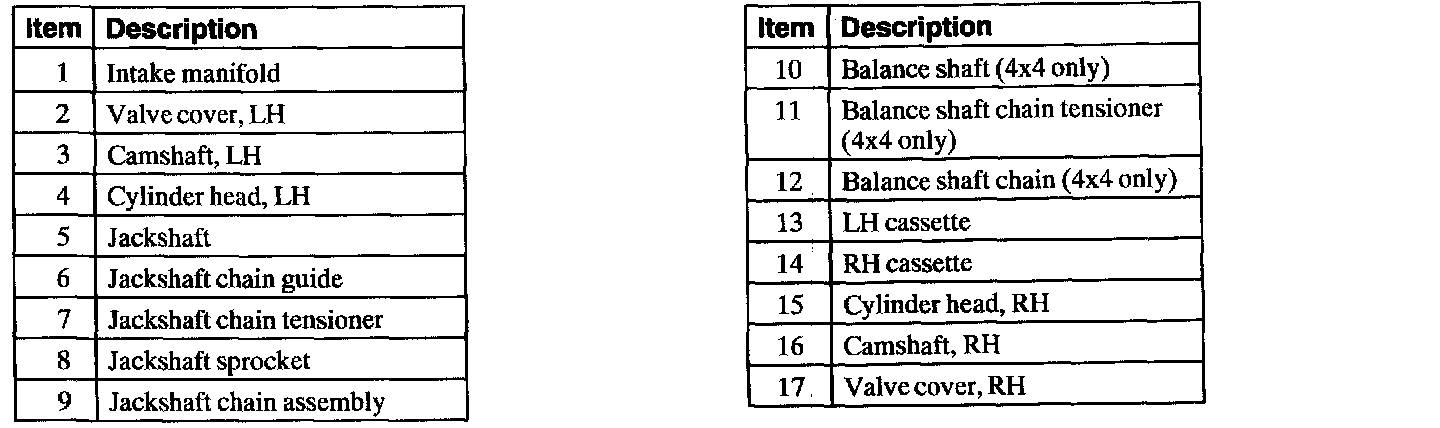

Upper End





1 of 2





2 of 2
