Front

REMOVAL

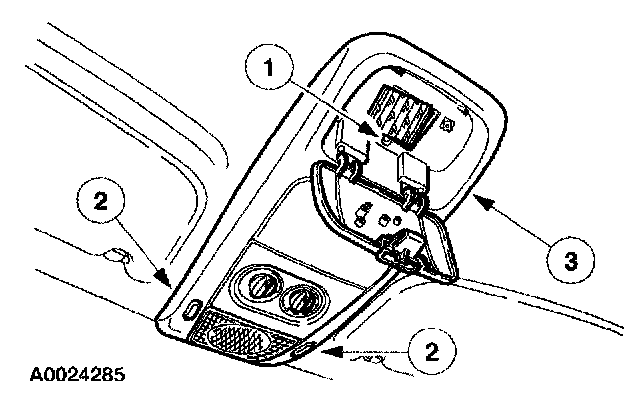

1. Lower the over head console.
1 Remove the screw.
2 Disengage the retaining clips.
3 Lower the overhead console.

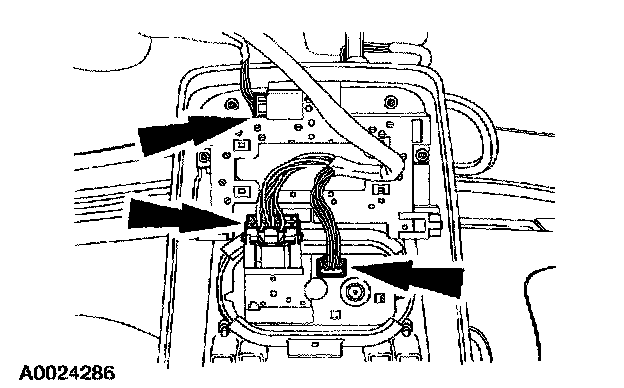

2. Disconnect the electrical connectors and remove the overhead console.

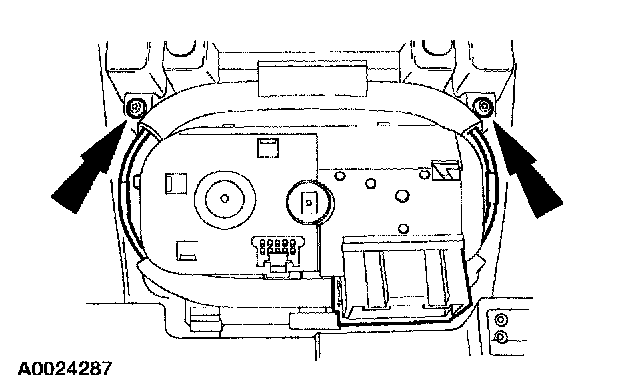

3. Remove the screws, and the climate control assembly.

INSTALLATION
1. To install, reverse the removal procedure.
