Keyless Entry Key-Pad: Service and Repair

KEYLESS ENTRY KEYPAD

Removal and Installation

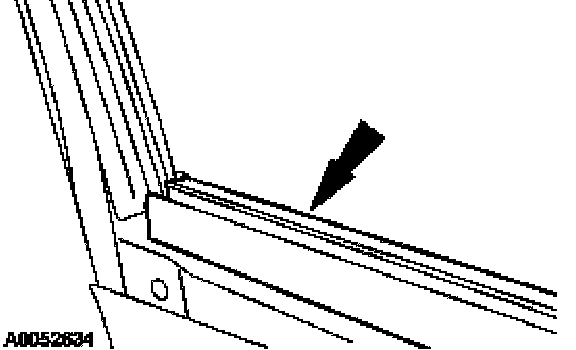

1. Remove the exterior beltline weatherstrips.

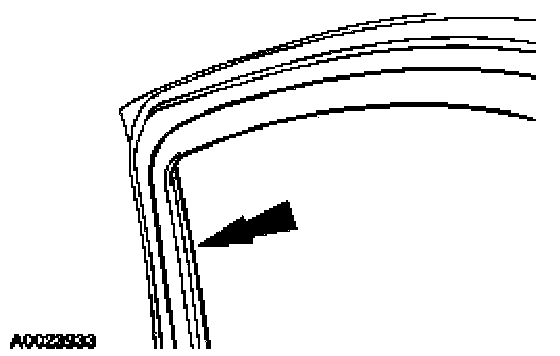

2. Position the door glass top run aside.

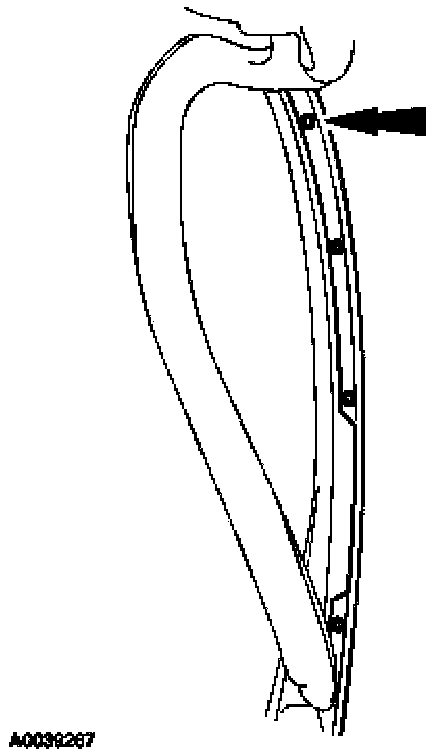

3. Remove the four screws.







4. Remove the keyless entry keypad.

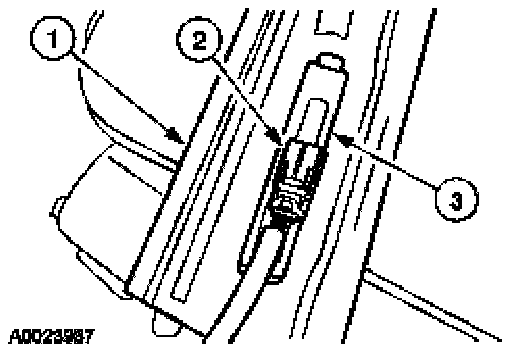

1. Position the exterior B-pillar trim panel aside.
2. Disconnect the electrical connector.
3. Release the clips and remove the keyless entry keypad.

5. To install, reverse the removal procedure.
