Rear

REMOVAL

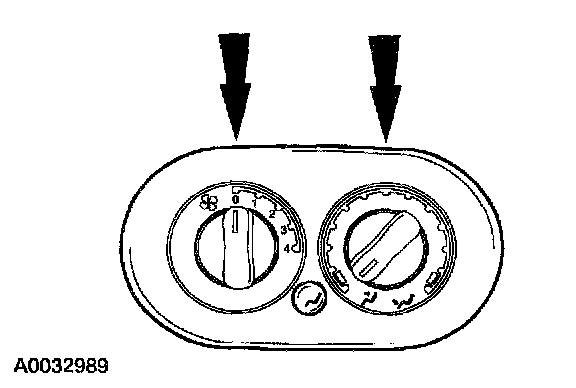

1. Disengage the retaining clips and lower the climate control assembly.

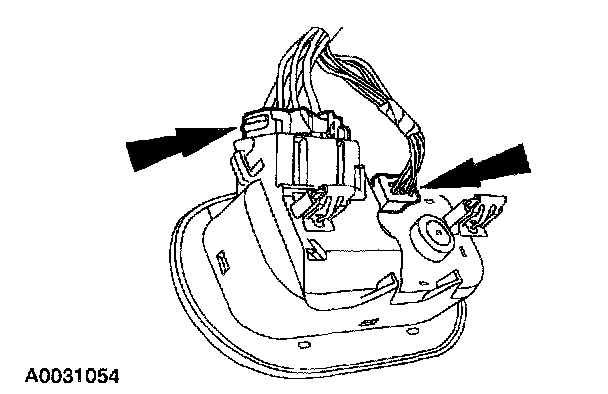

2. Disconnect the electrical connectors and remove the climate control assembly.

INSTALLATION
1. To install, reverse the removal procedure.
