Engine Control Module: Locations

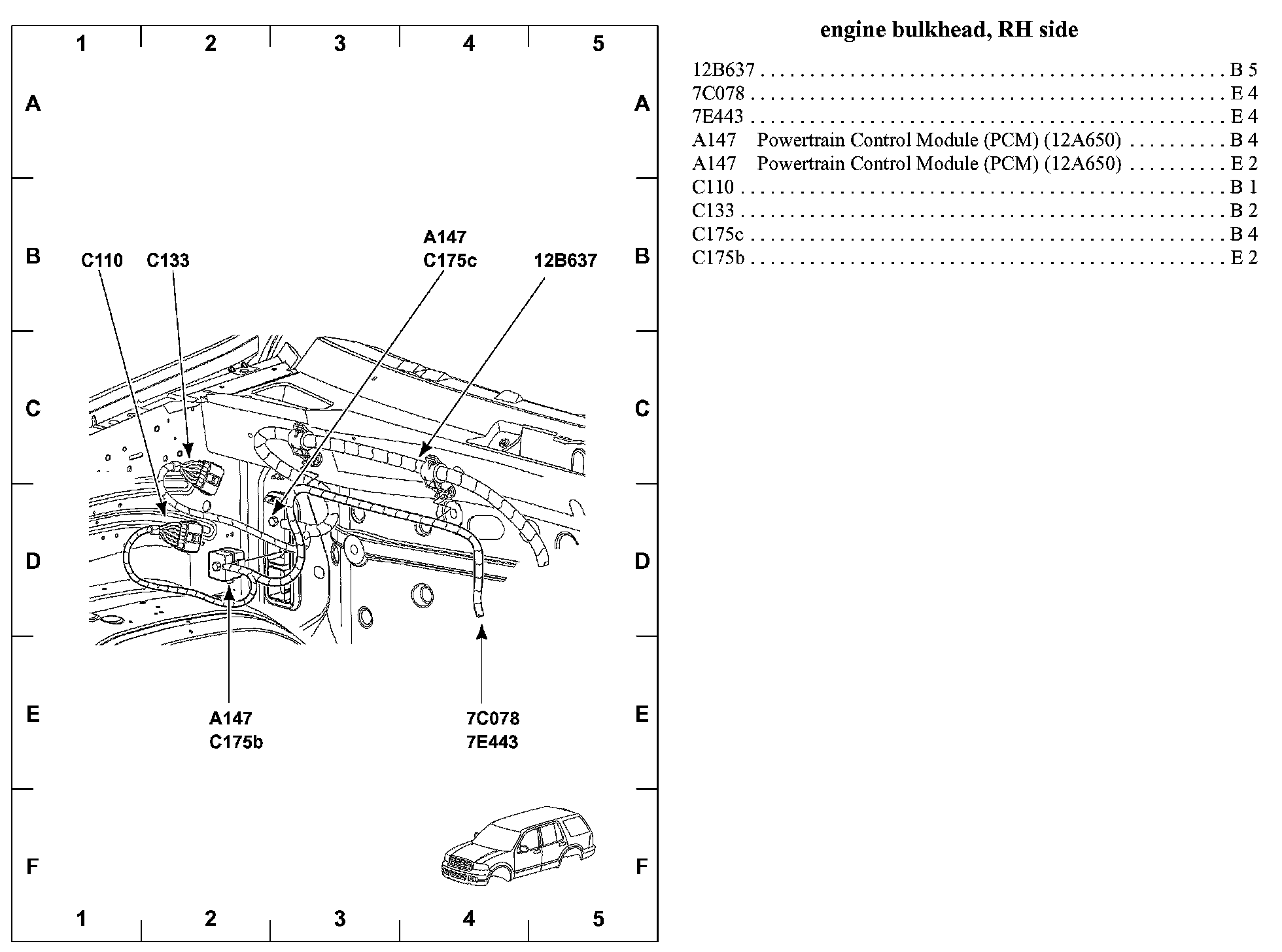

View 151-10 (Engine Bulkhead, RH Side):

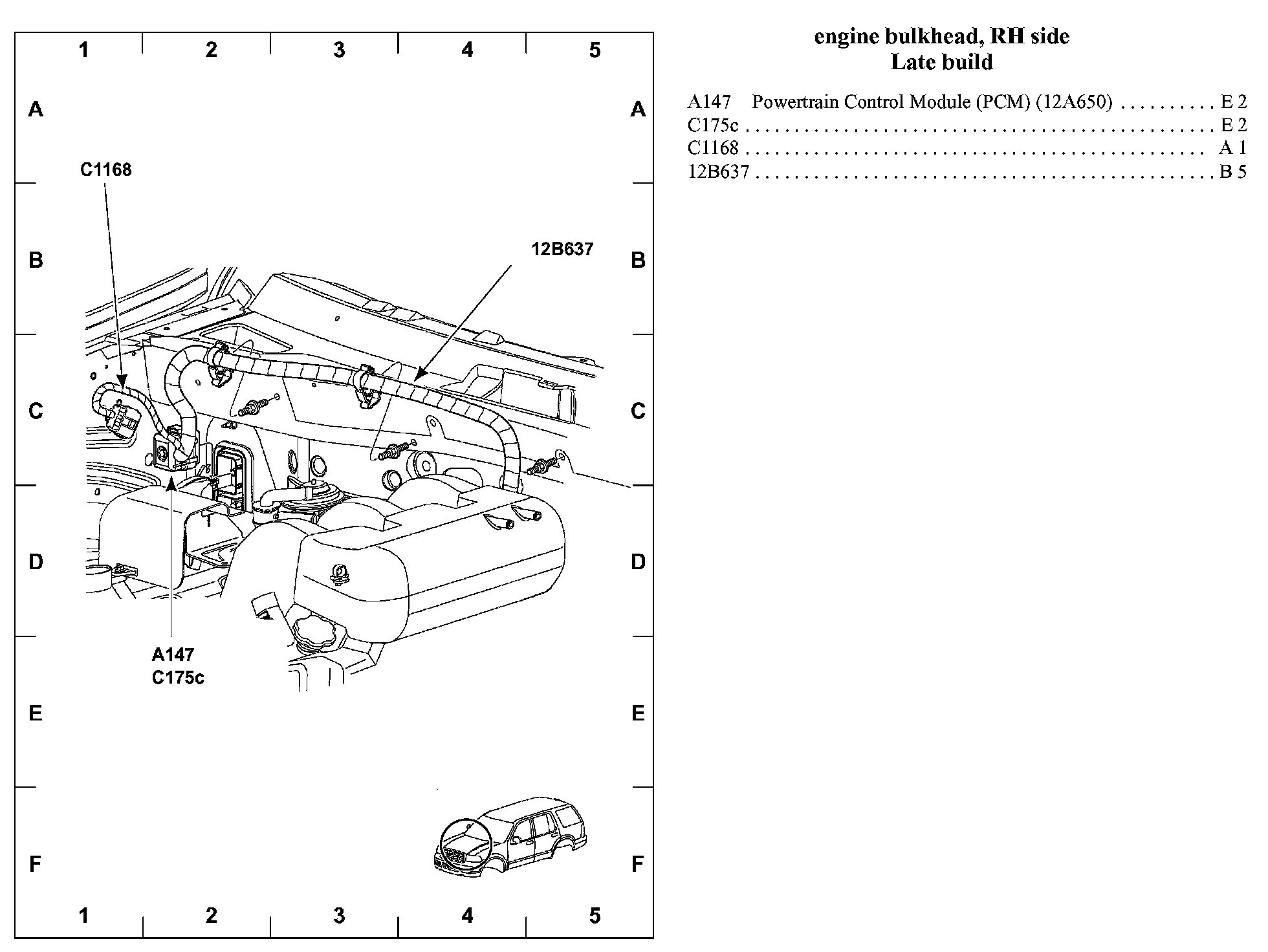

View 151-11 (Engine Bulkhead, RH Side Late Build):

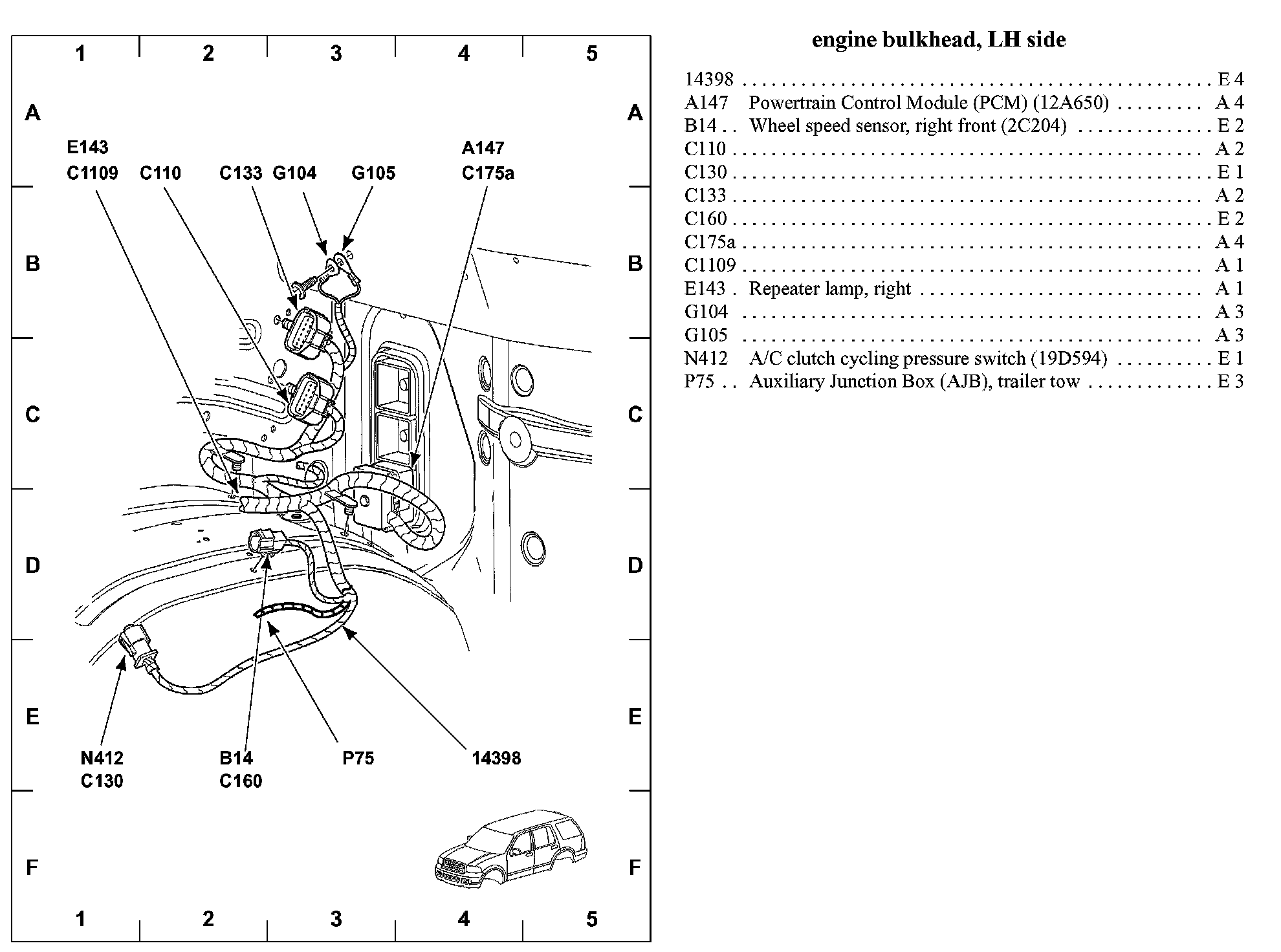

View 151-26 (Engine Bulkhead, LH Side):

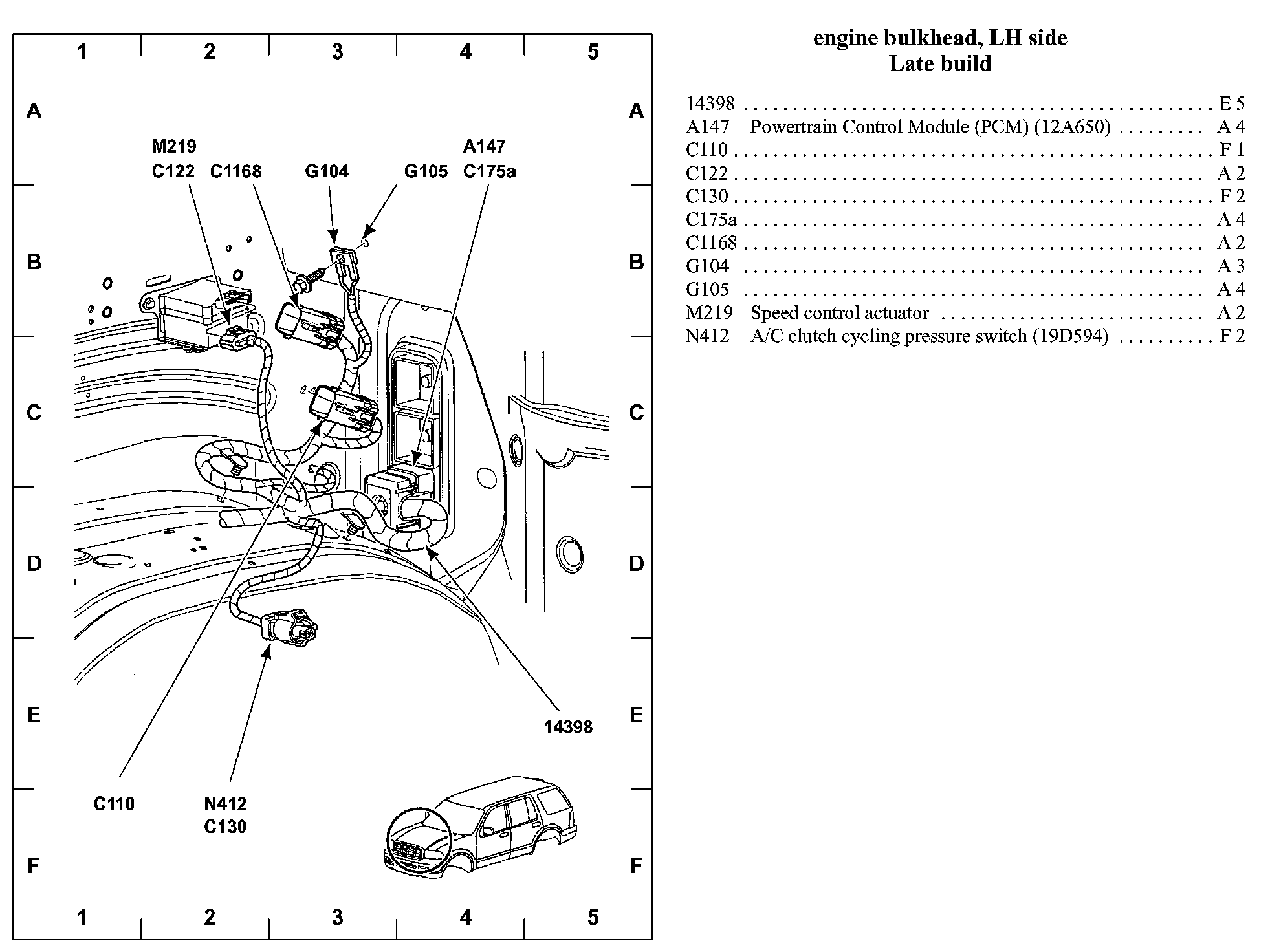

View 151-27 (Engine Bulkhead, LH Side Late Build):
