Engine Temperature Sensor: Service and Repair

Removal and Installation

1. Remove the generator.

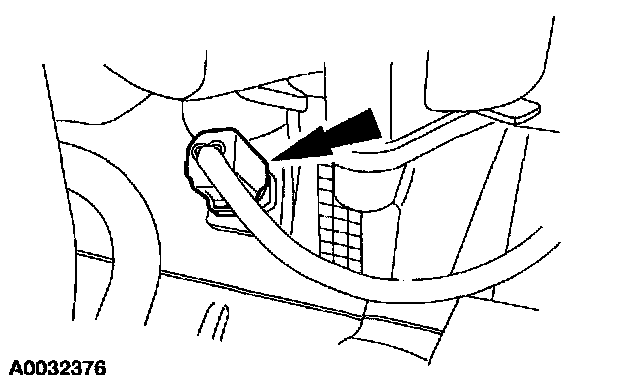

2. Disconnect the cylinder head temperature (CHT) sensor.

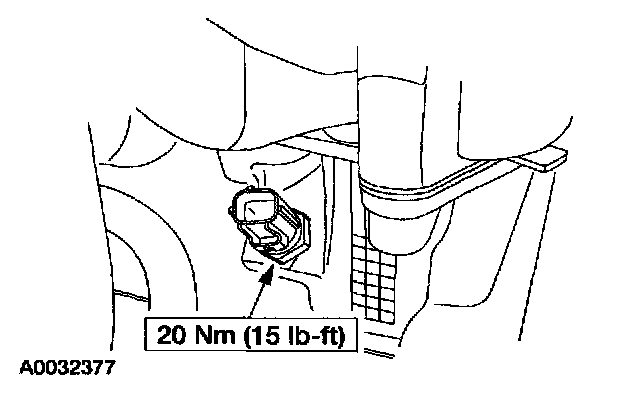

3. Remove the CHT sensor.
4. To install, reverse the removal procedure.
