Knock Sensor: Service and Repair

REMOVAL
1. Remove the intake manifold.

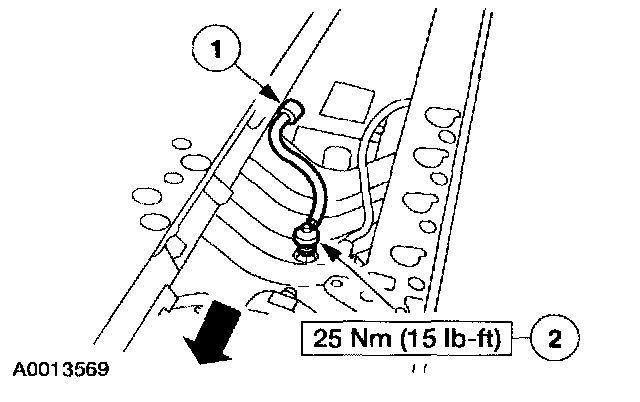

2. Remove the Knock Sensor (KS).
1 Disconnect the electrical connector.
2 Remove the nut and the KS.

INSTALLATION
1. To install, reverse the removal procedure.
