Throttle Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

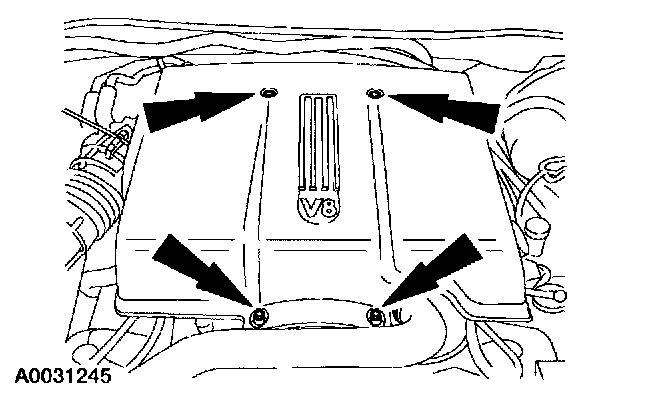

2. Remove the engine appearance cover.

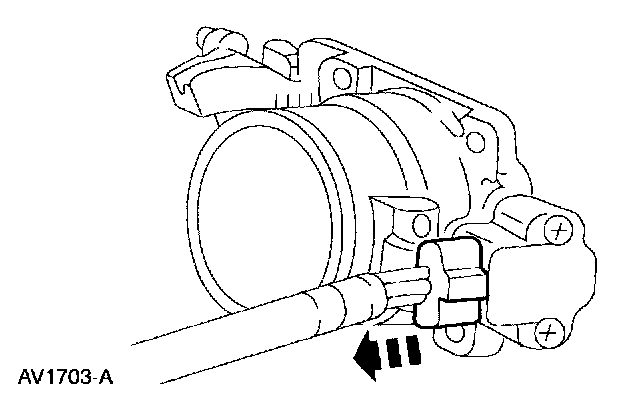

3. Disconnect the Throttle Position (TP) sensor electrical connector.

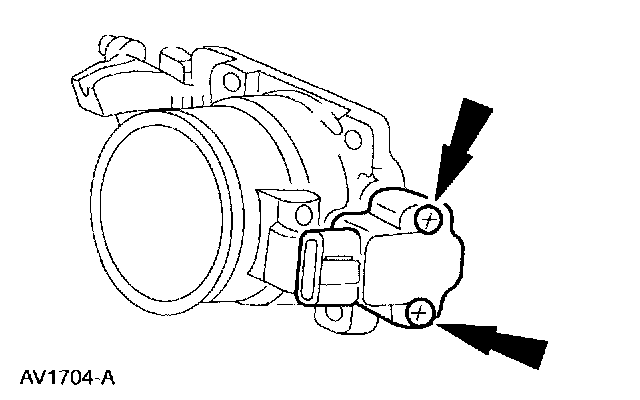

4. Remove the bolts and the sensor.

INSTALLATION
1. To install, reverse the removal procedure.
