Electronic Brake Control Module: Locations

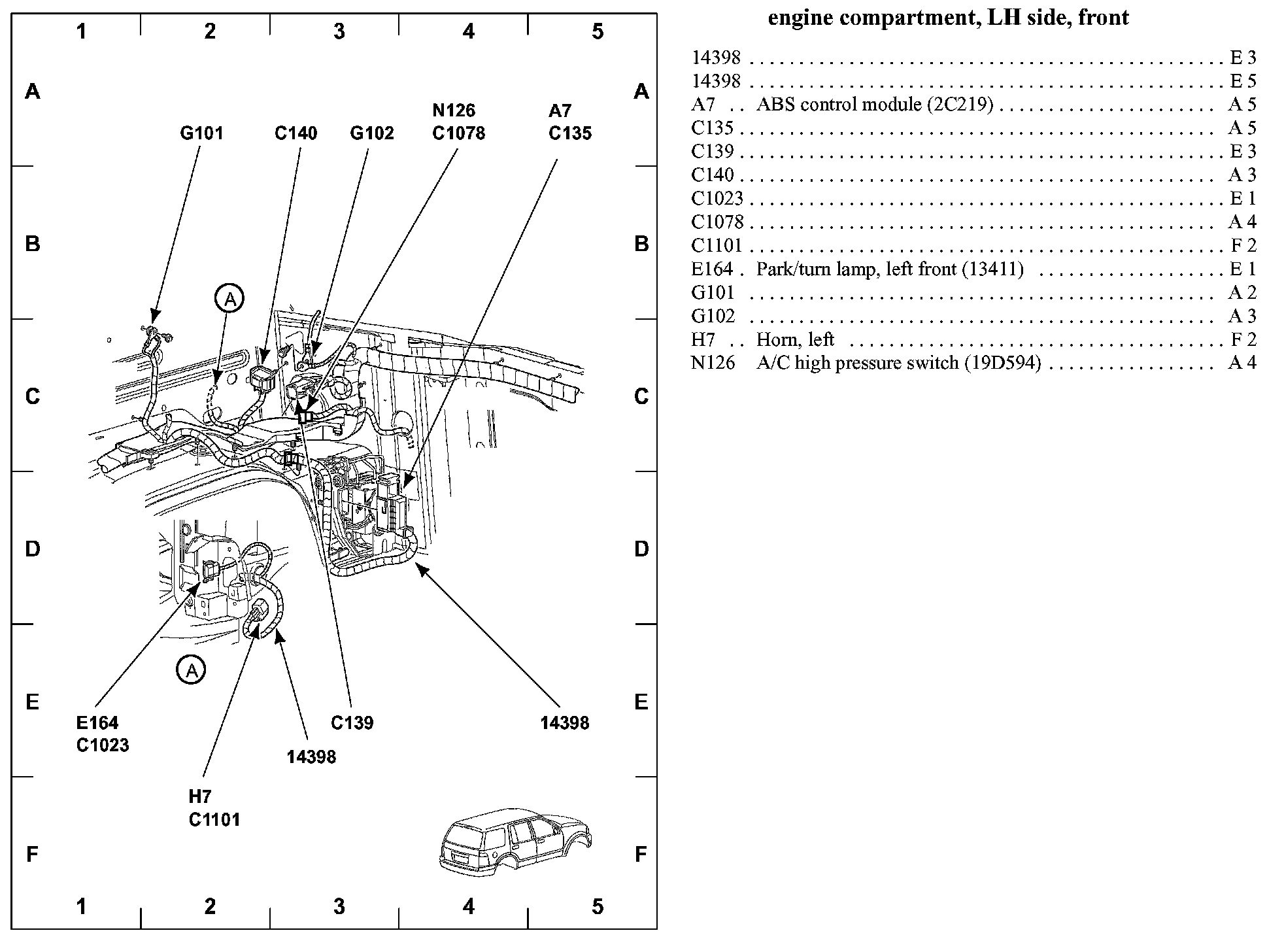

View 151-19 (Engine Compartment, LH Side, Front):

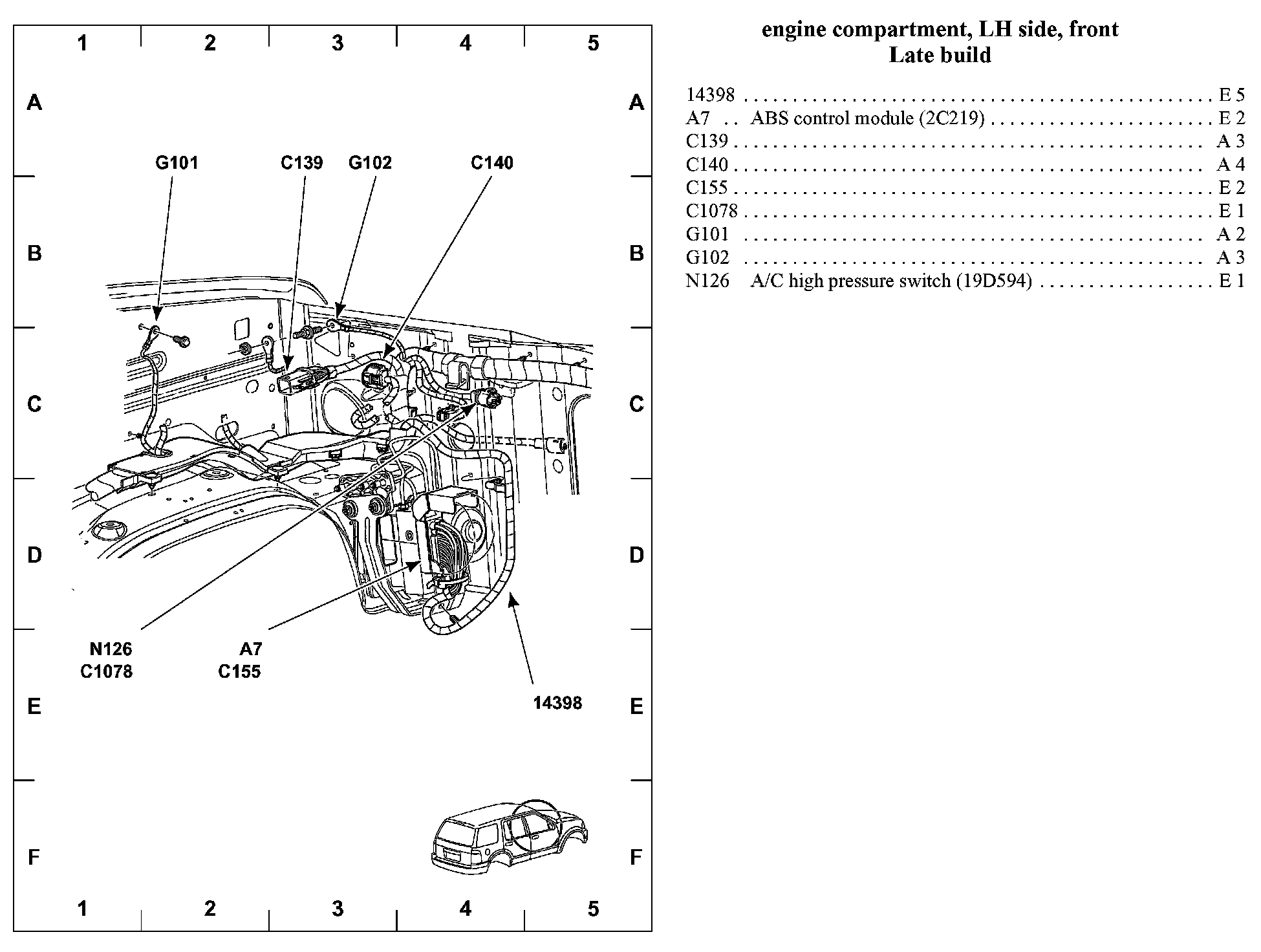

View 151-20 (Engine Compartment, LH Side, Front Late Build):
