Air Bag Control Module: Locations

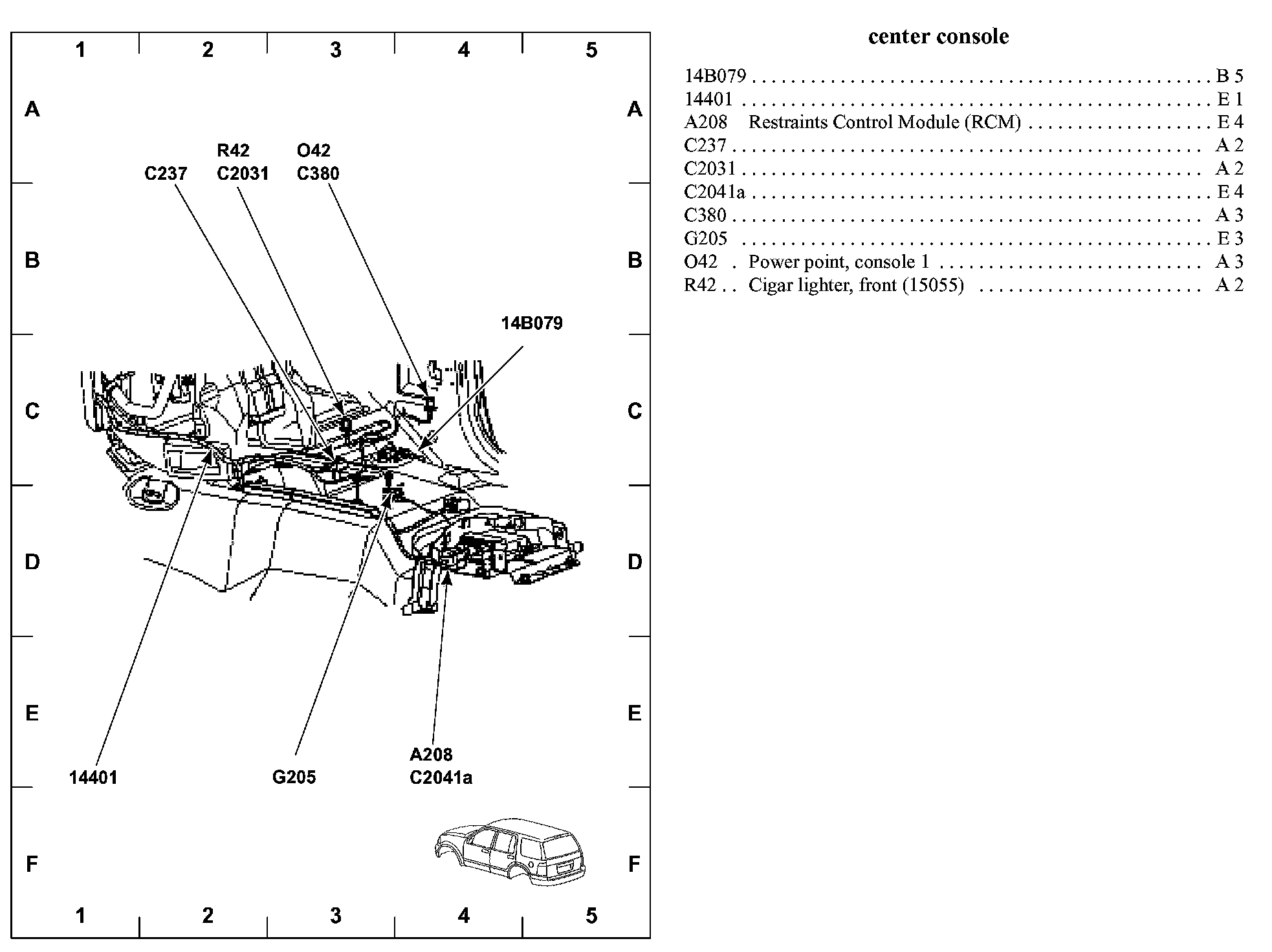

View 151-33 (Center Console):

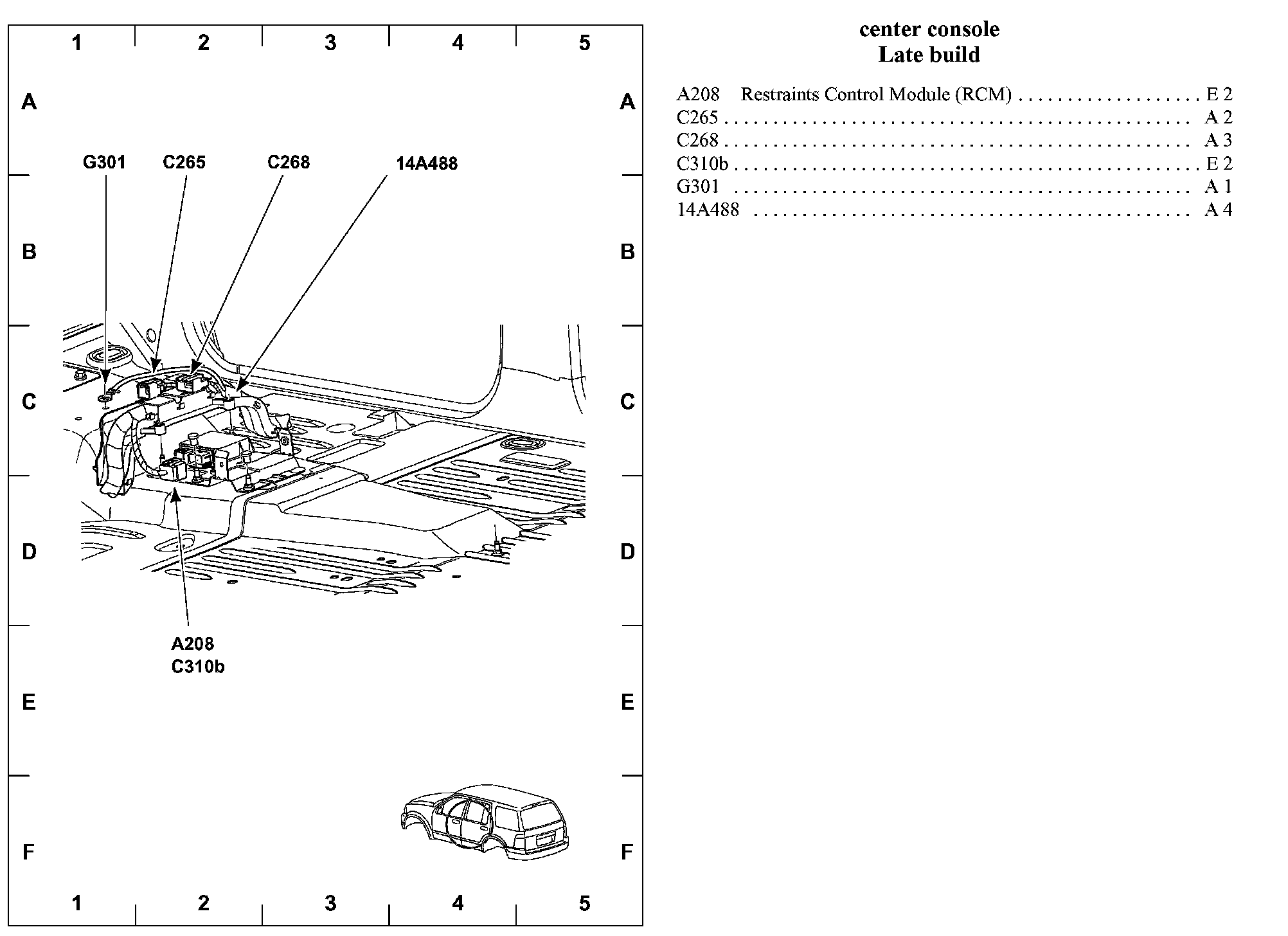

View 151-34 (Center Console Late Build):

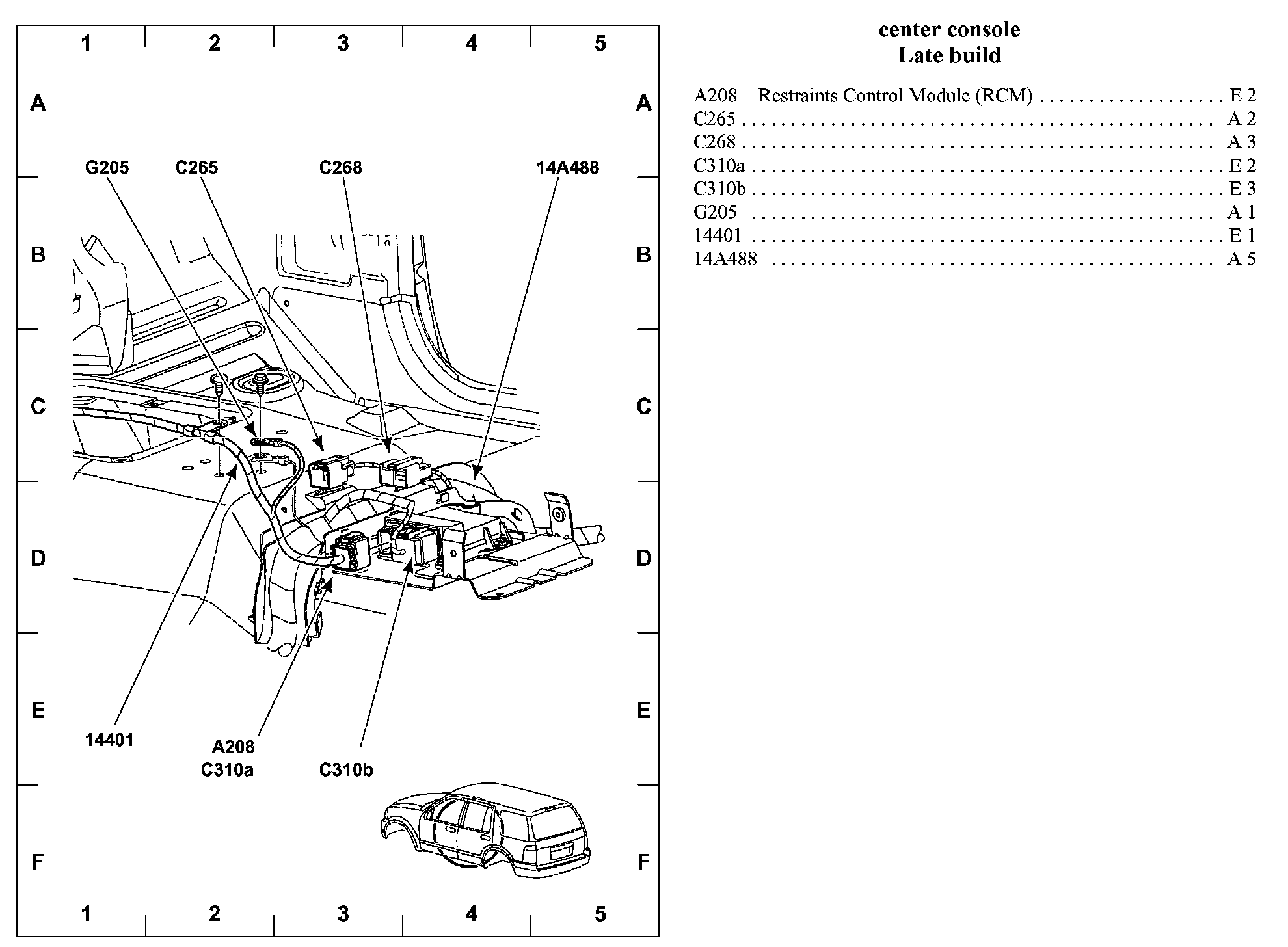

View 151-37 (Center Console Late Build):

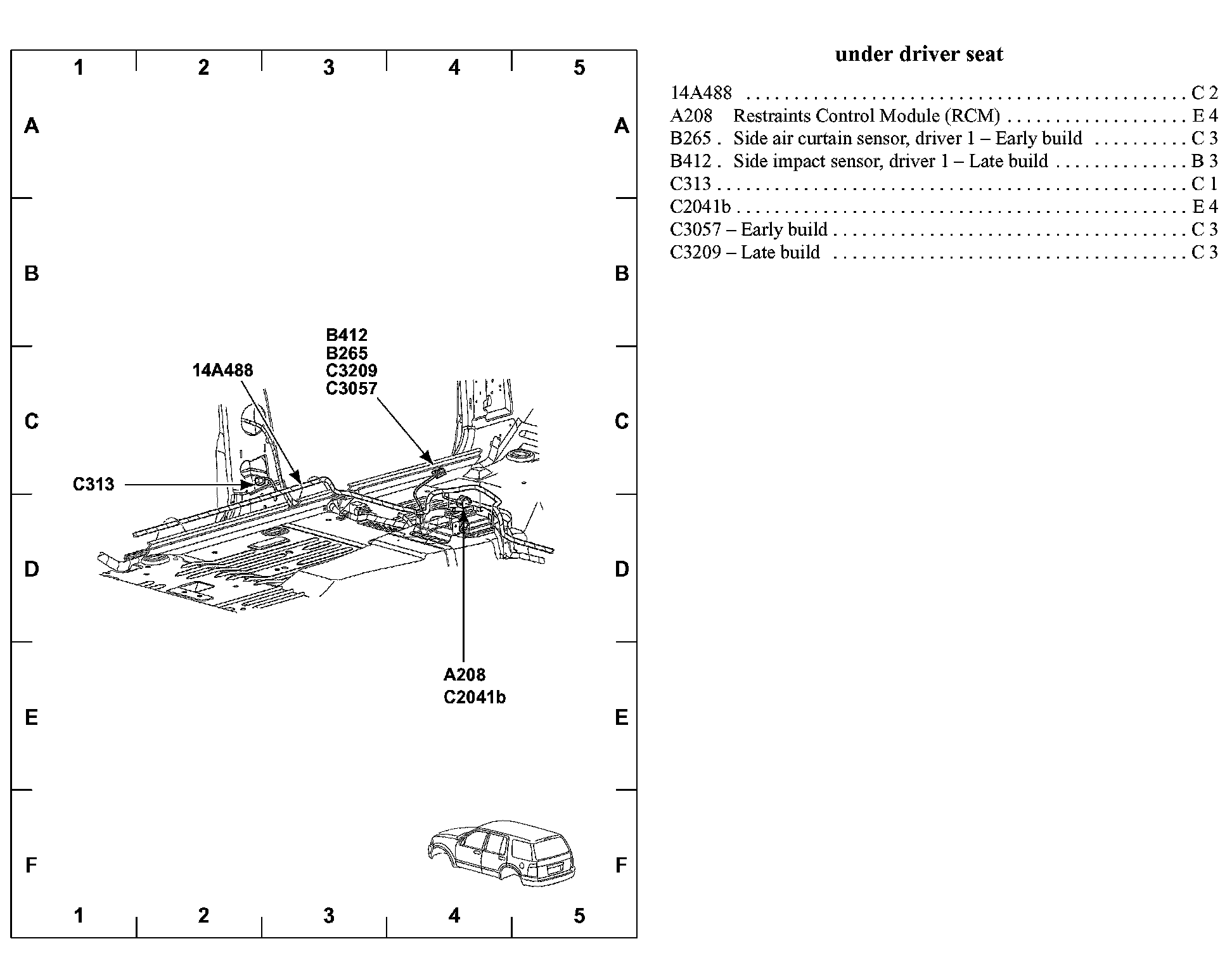

View 151-75 (Under Driver Seat):
