Pinpoint Test H: No Communication With The Module - Generic Electronic Module

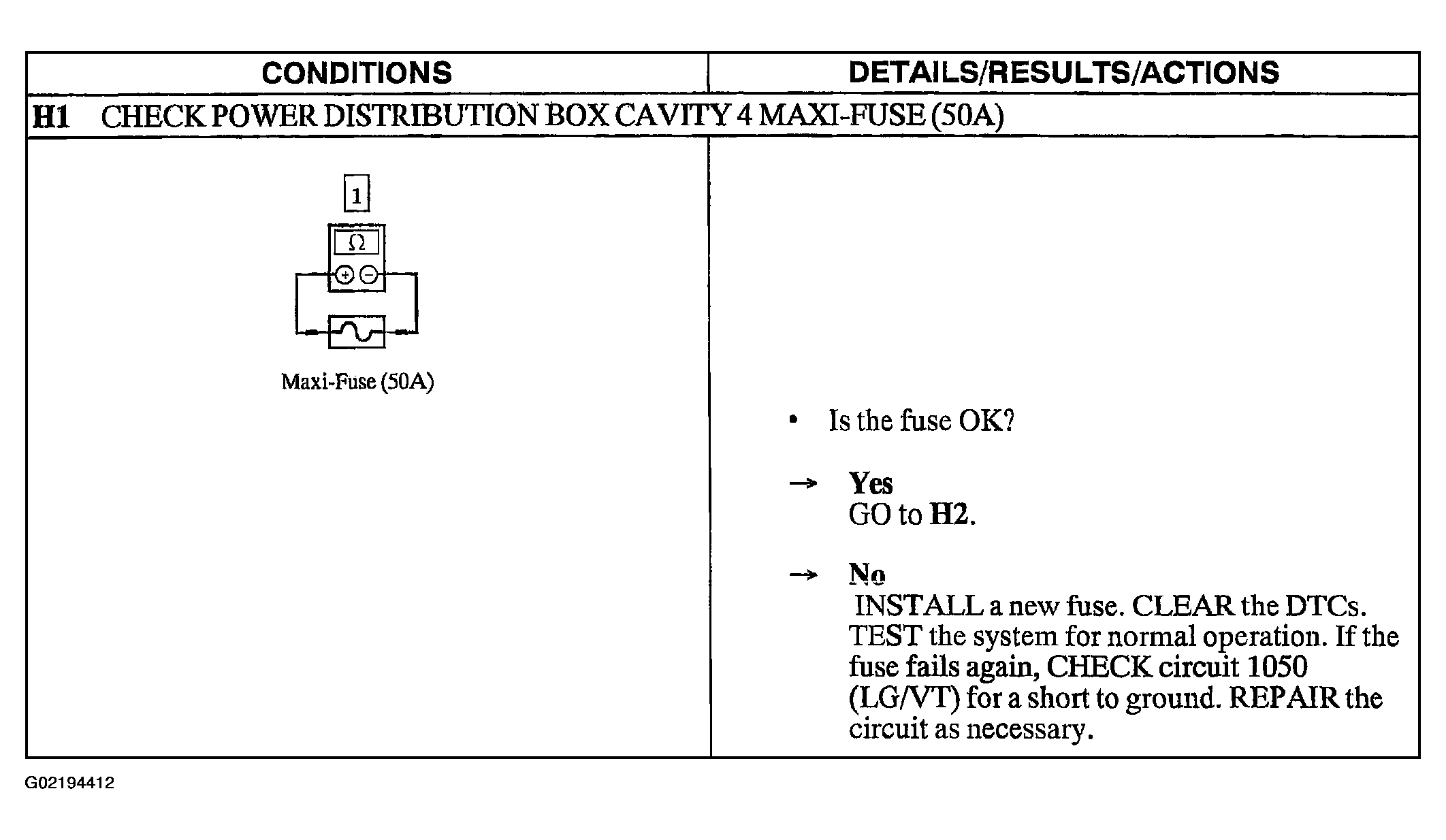

Fig 1: Pinpoint Test H: No Communication With Module - Generic Electronic Module (H1)

Courtesy of FORD MOTOR CO.

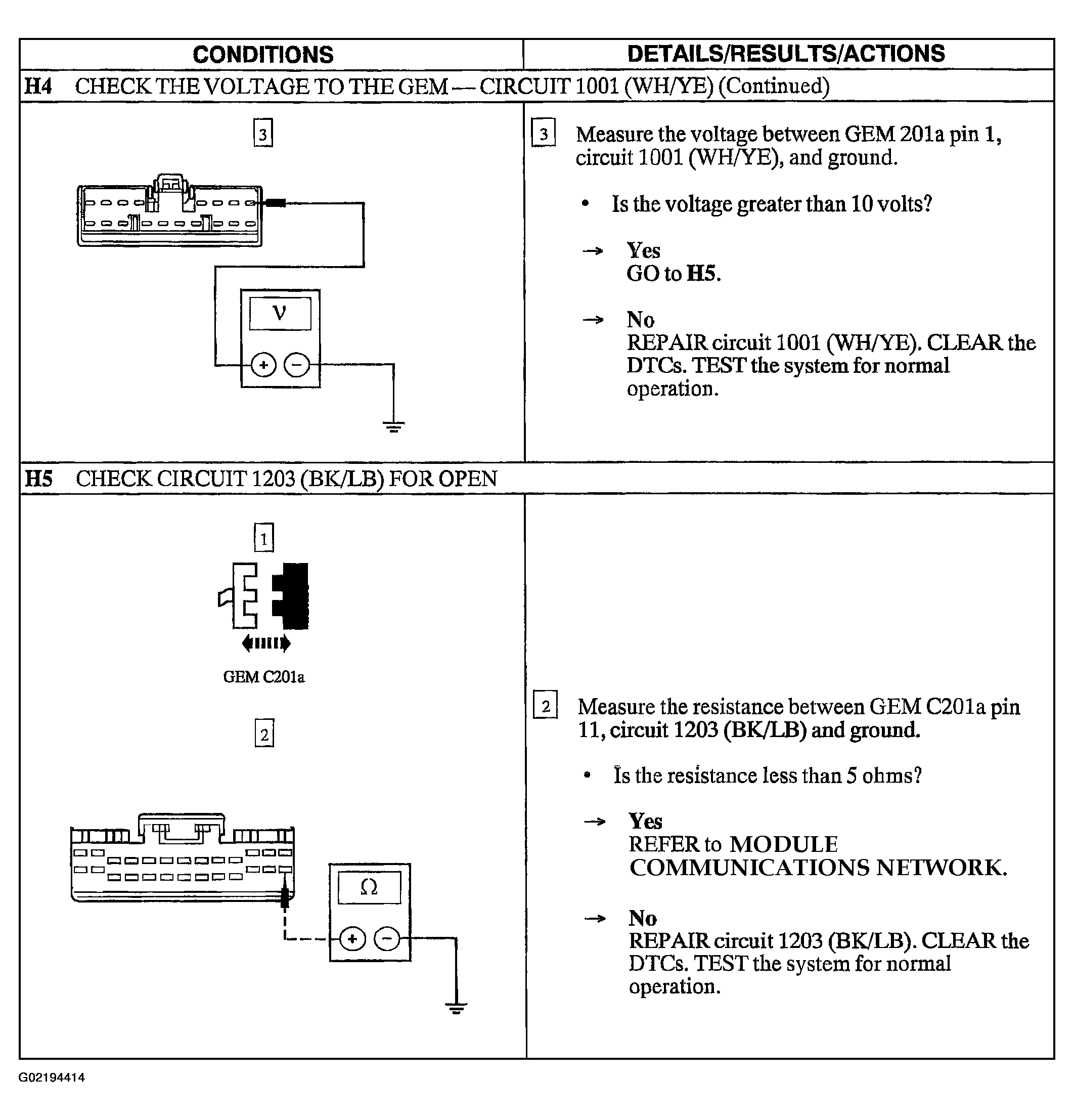

Fig 2: Pinpoint Test H: No Communication With Module - Generic Electronic Module (H2-H4)

Courtesy of FORD MOTOR CO.

Fig 3: Pinpoint Test H: No Communication With Module - Generic Electronic Module (H4 Cont.-H5)

Courtesy of FORD MOTOR CO.
