4WD Control Module Diagnostic Trouble Code (DTC) Index

NOTE: For DTCs not listed below, refer to MULTIFUNCTION ELECTRONIC MODULE article.

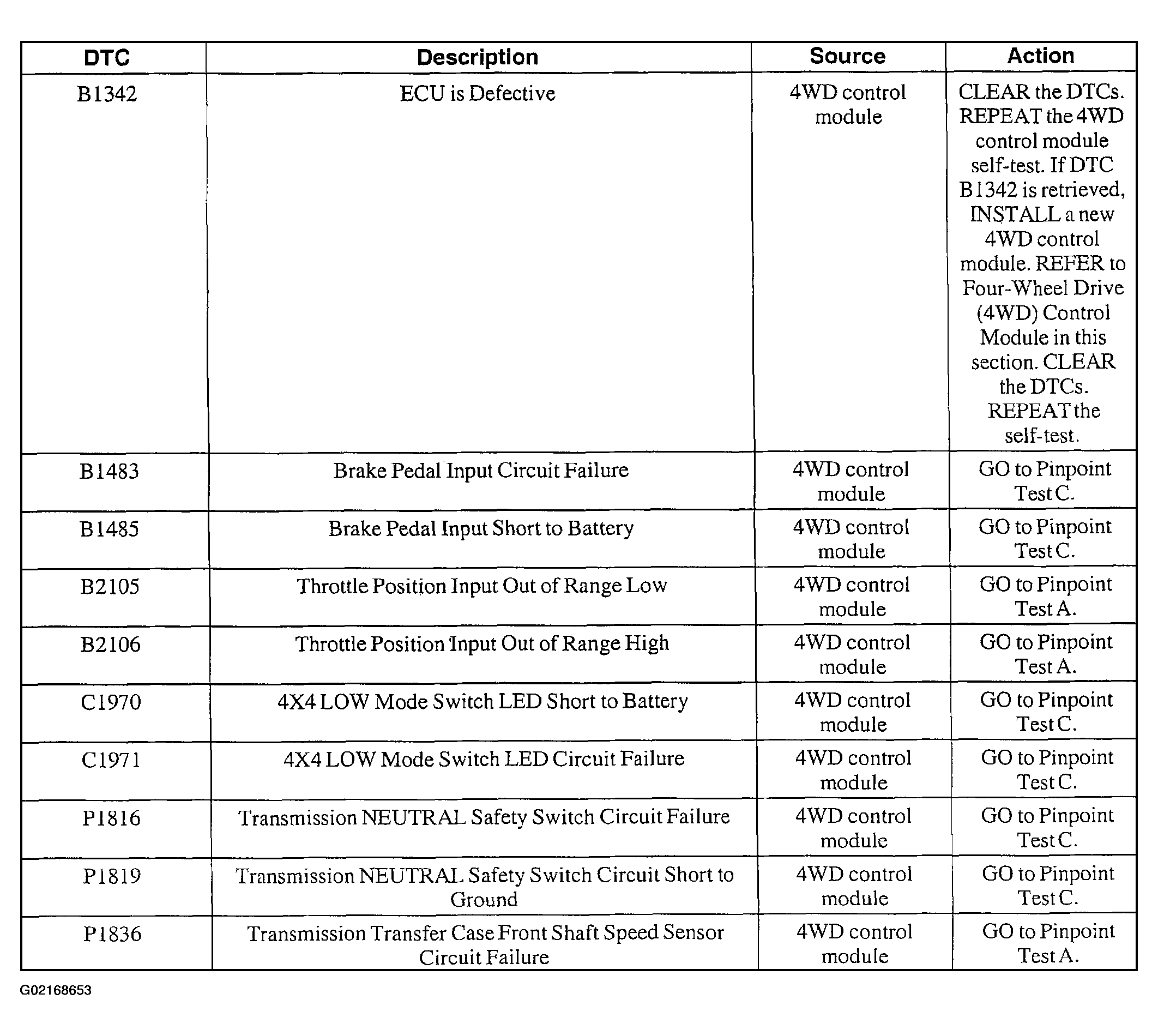

Fig 1: 4WD Control Module Diagnostic Trouble Code (DTC) Index (1 Of 2)

Courtesy of FORD MOTOR CO.

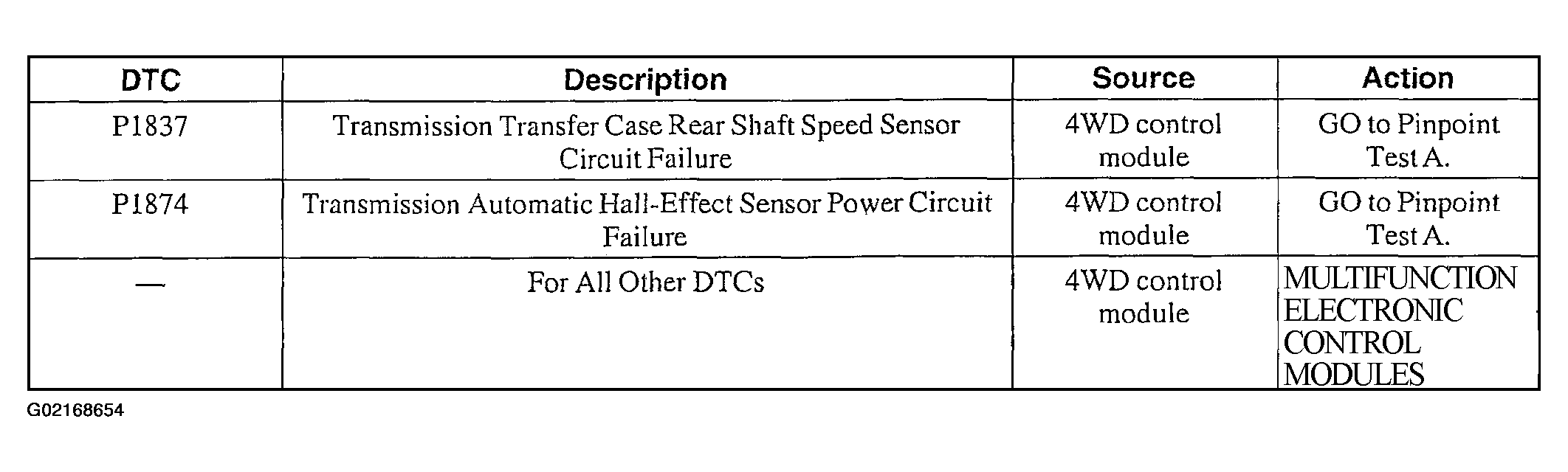

Fig 2: 4WD Control Module Diagnostic Trouble Code (DTC) Index (2 Of 2)

Courtesy of FORD MOTOR CO.
