Pinpoint Test B: No Communication With The Driver Seat Module (DSM)

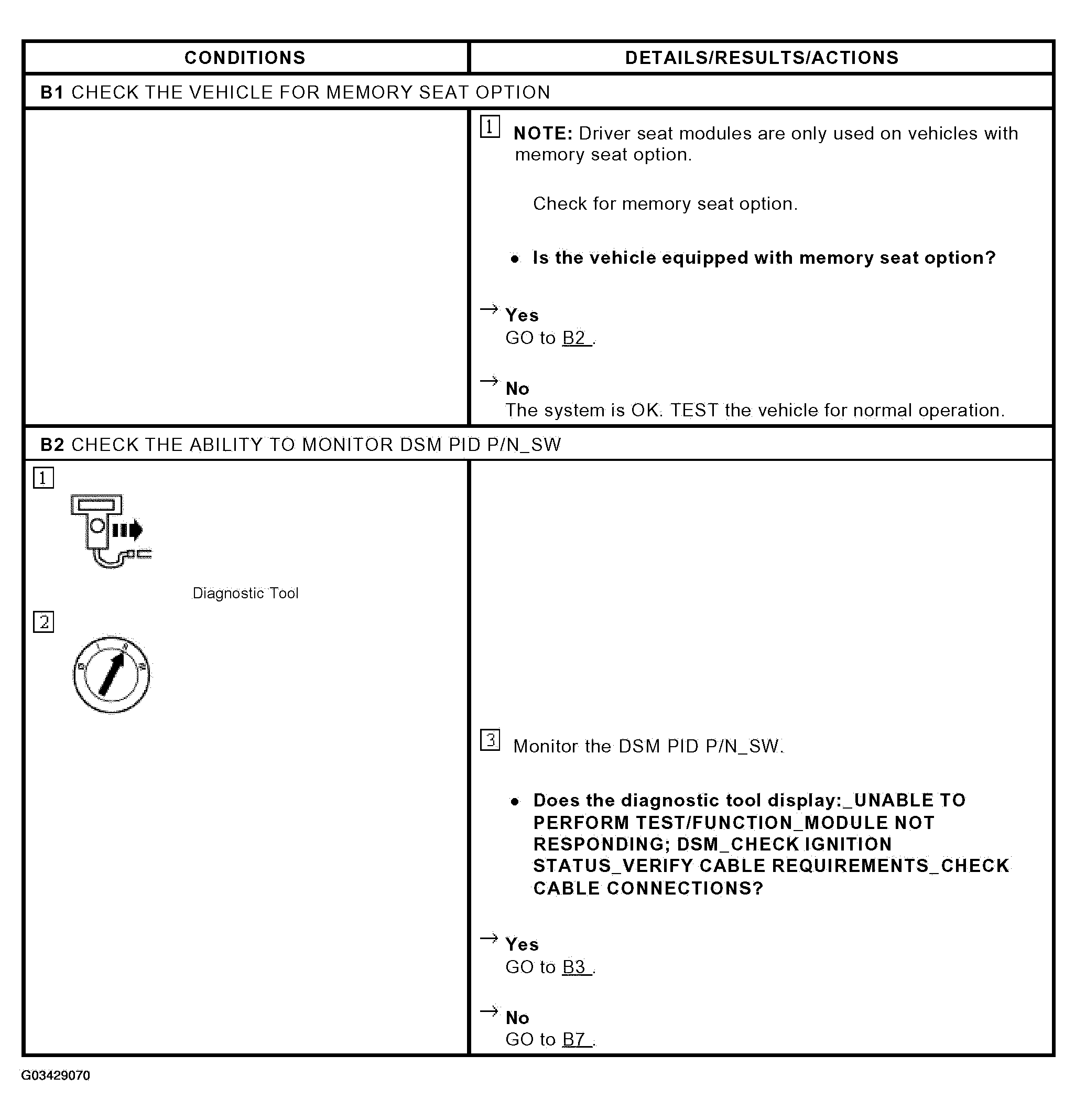

Fig 1: Identifying Pinpoint Test B: No Communication With Driver Seat Module (DSM) (B1 & B2)

Courtesy of FORD MOTOR CO.

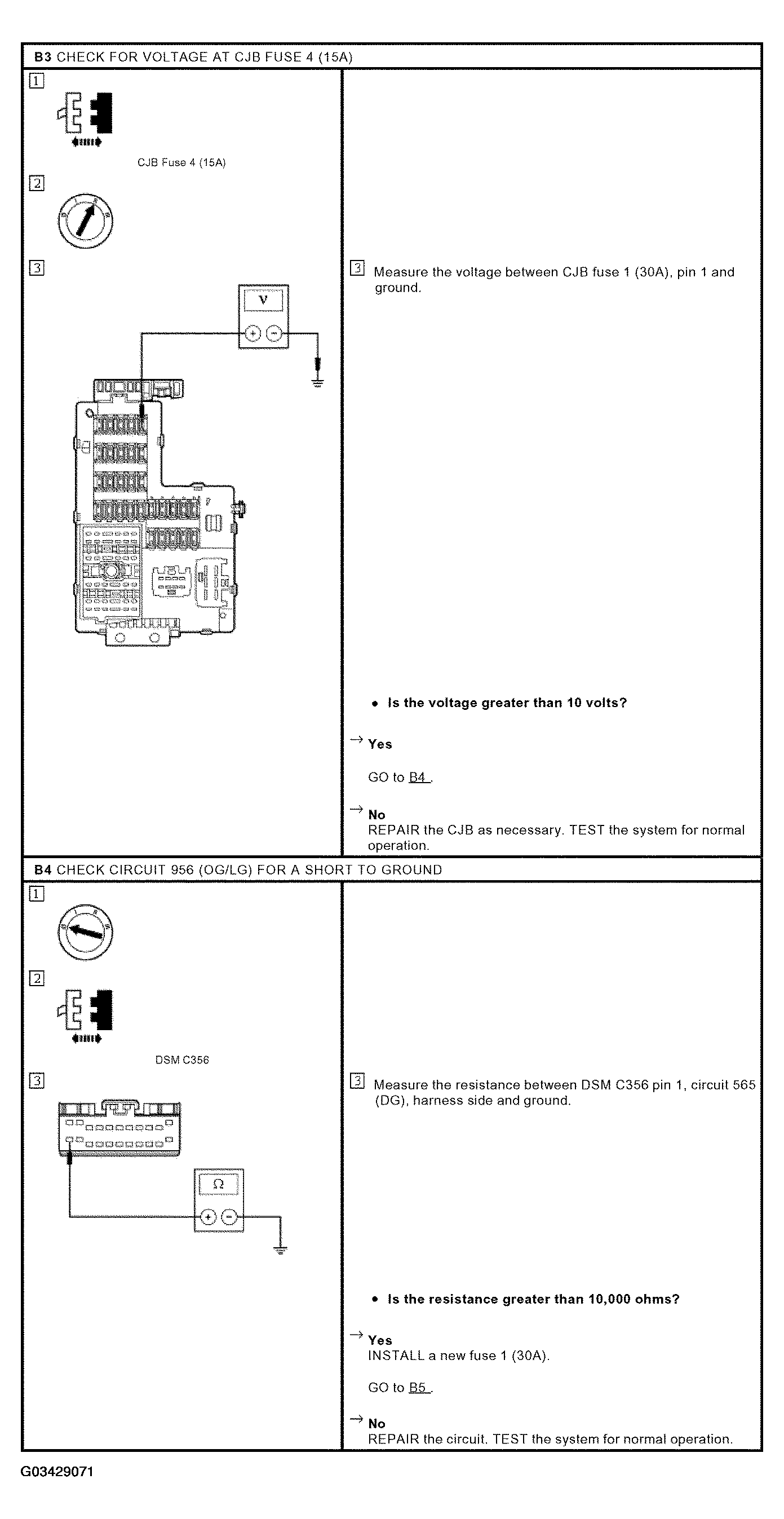

Fig 2: Identifying Pinpoint Test B: No Communication With Driver Seat Module (DSM) (B3 & B4)

Courtesy of FORD MOTOR CO.

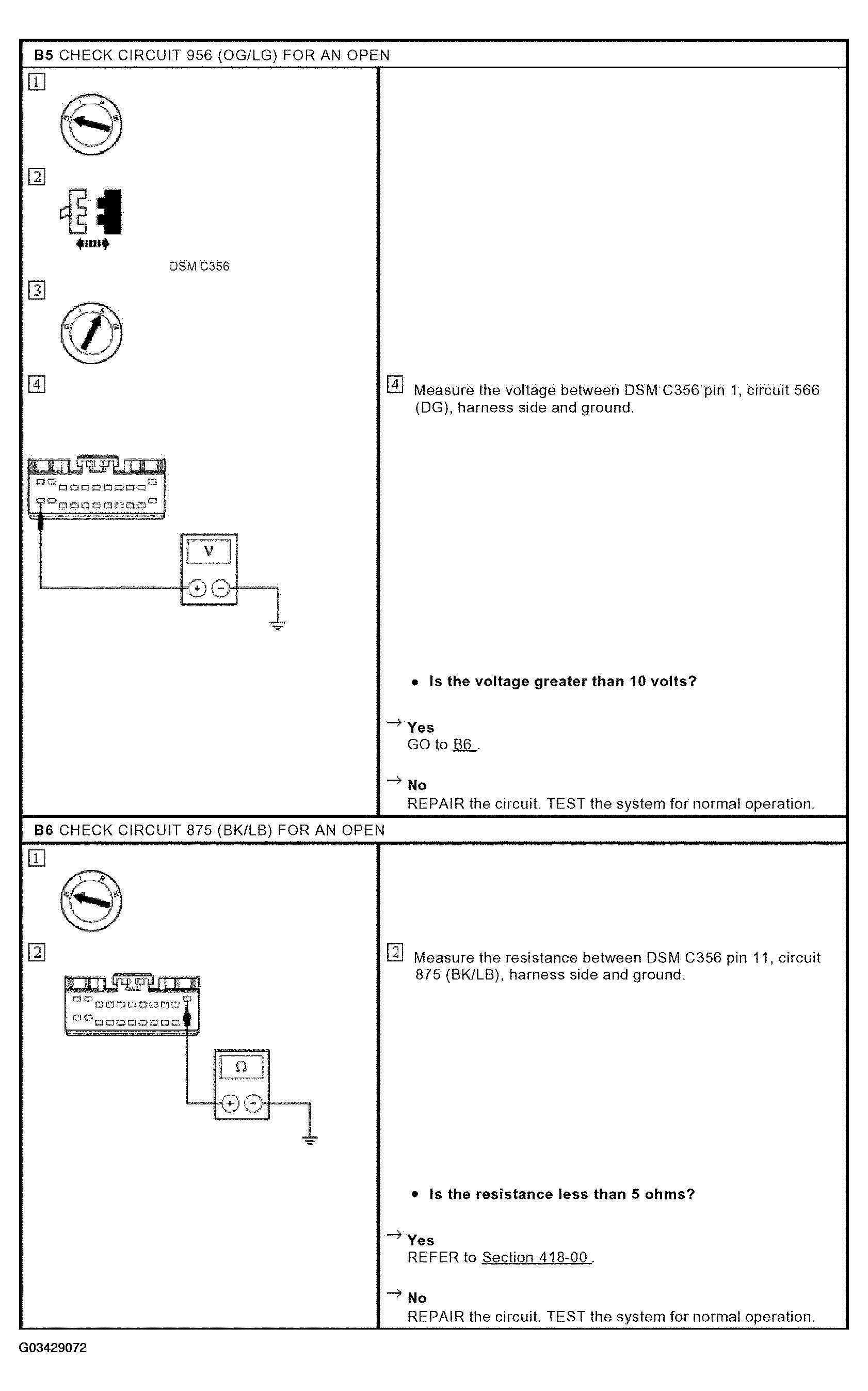

Fig 3: Identifying Pinpoint Test B: No Communication With Driver Seat Module (DSM) (B5 & B6)

Courtesy of FORD MOTOR CO.

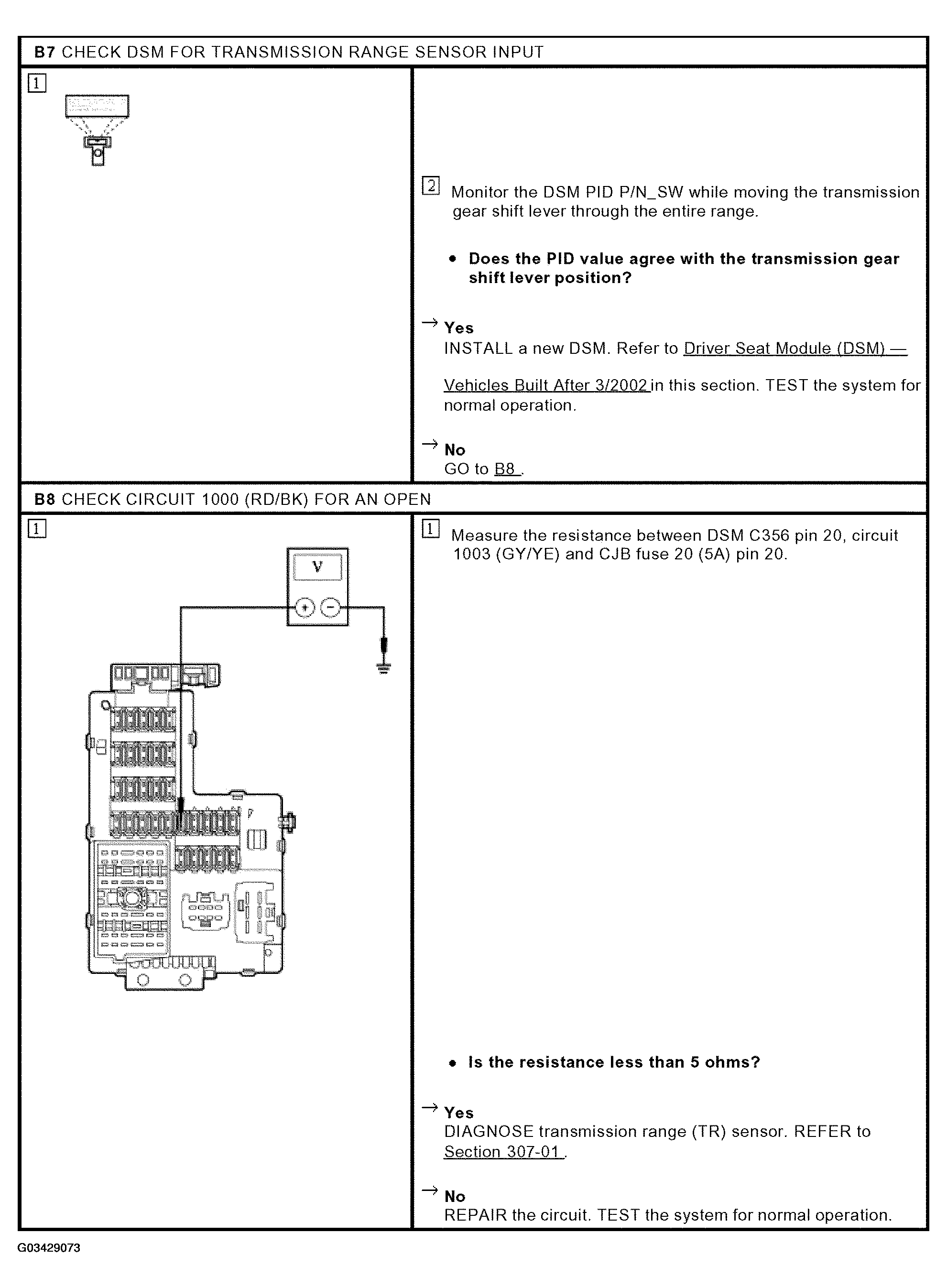

Fig 4: Identifying Pinpoint Test B: No Communication With Driver Seat Module (DSM) (B7 & B8)

Courtesy of FORD MOTOR CO.
