Main Control Valve Body: Notes

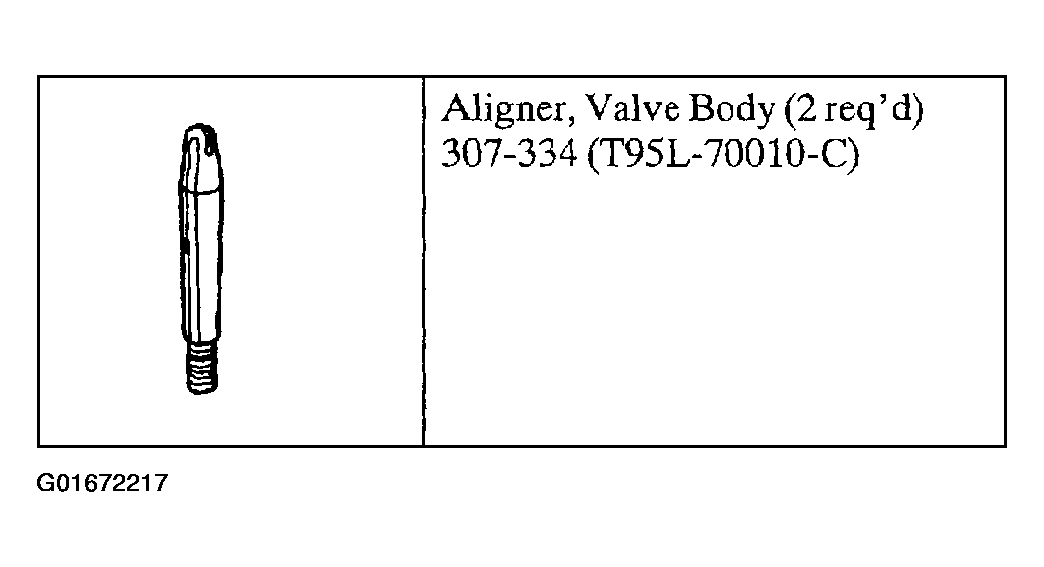

Fig 1: Special Tool(s)

Courtesy of FORD MOTOR CO.

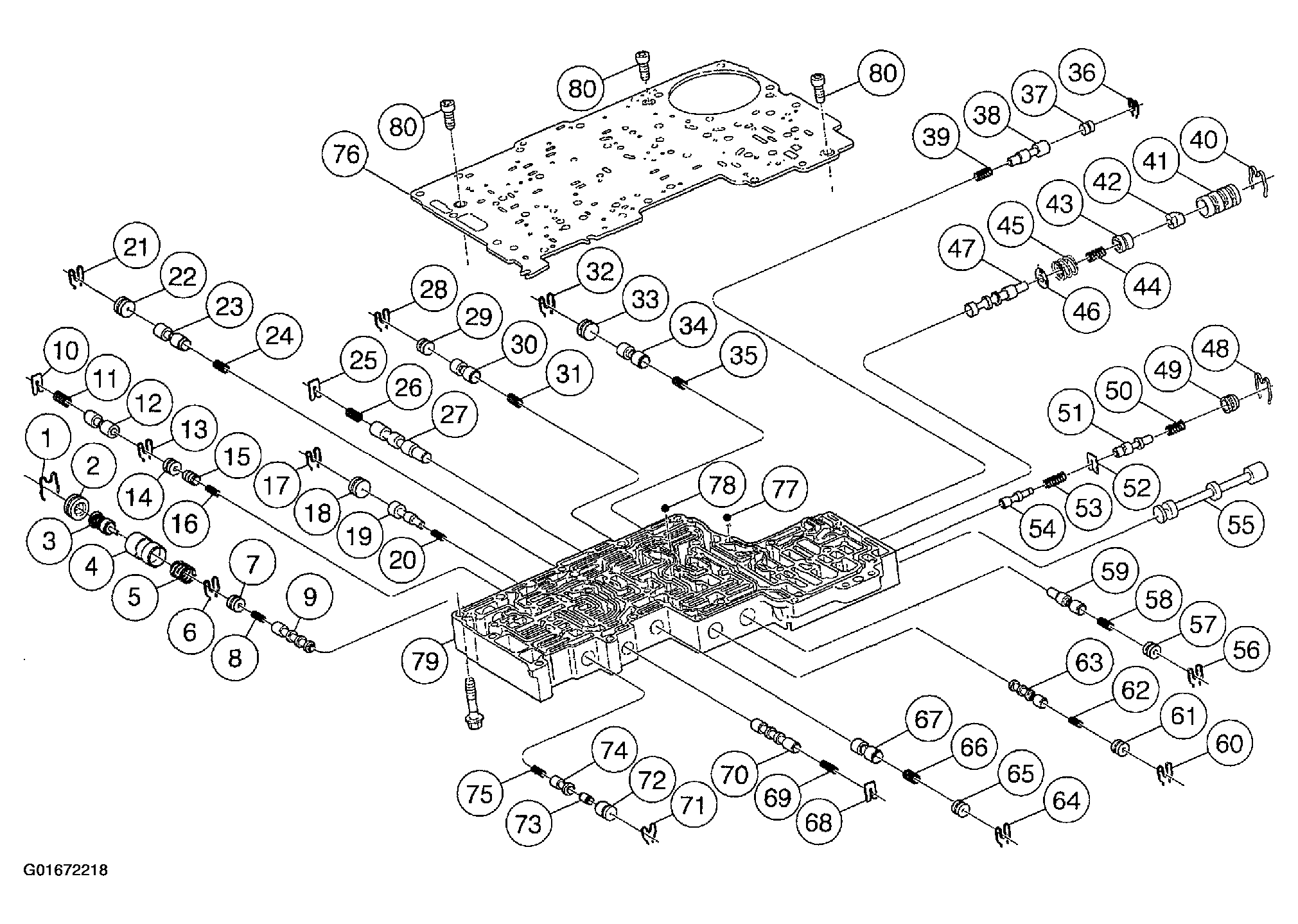

Fig 2: Component View Of Lower Valve Body

Courtesy of FORD MOTOR CO.

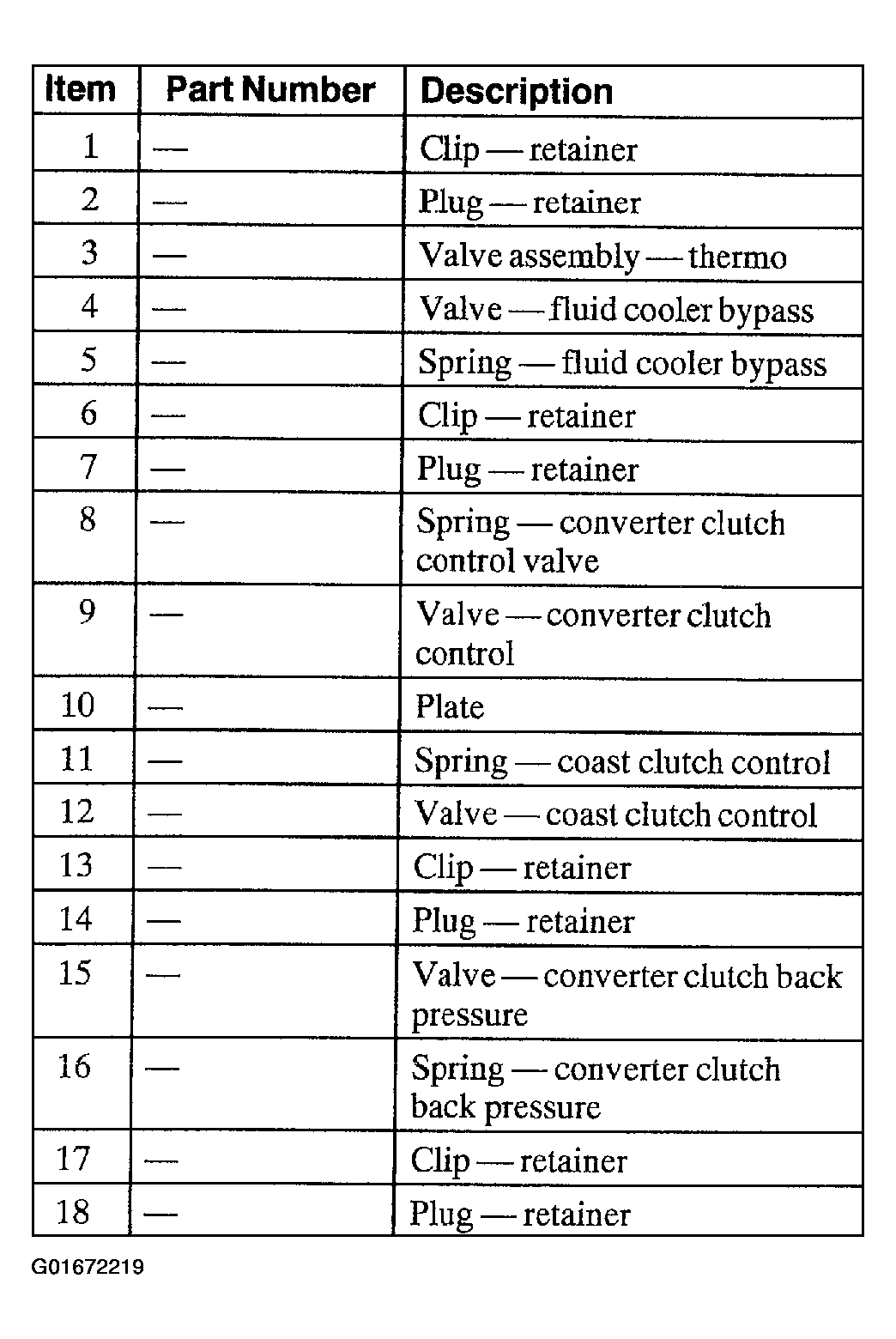

Fig 3: Component View Of Lower Valve Body Legend (Items 1-18)

Courtesy of FORD MOTOR CO.

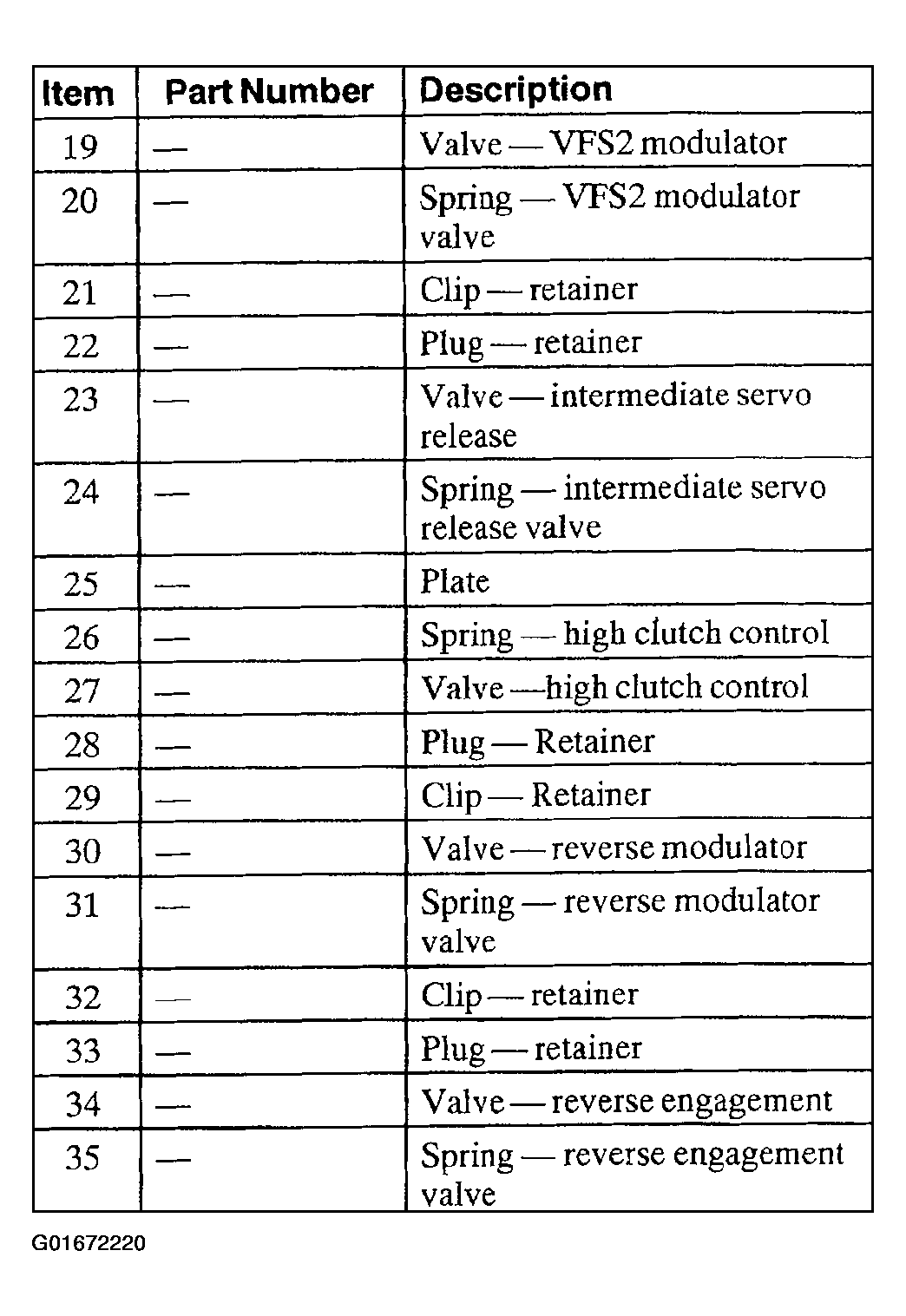

Fig 4: Component View Of Lower Valve Body Legend (Items 19-35)

Courtesy of FORD MOTOR CO.

Fig 5: Component View Of Lower Valve Body Legend (Items 20-59)

Courtesy of FORD MOTOR CO.

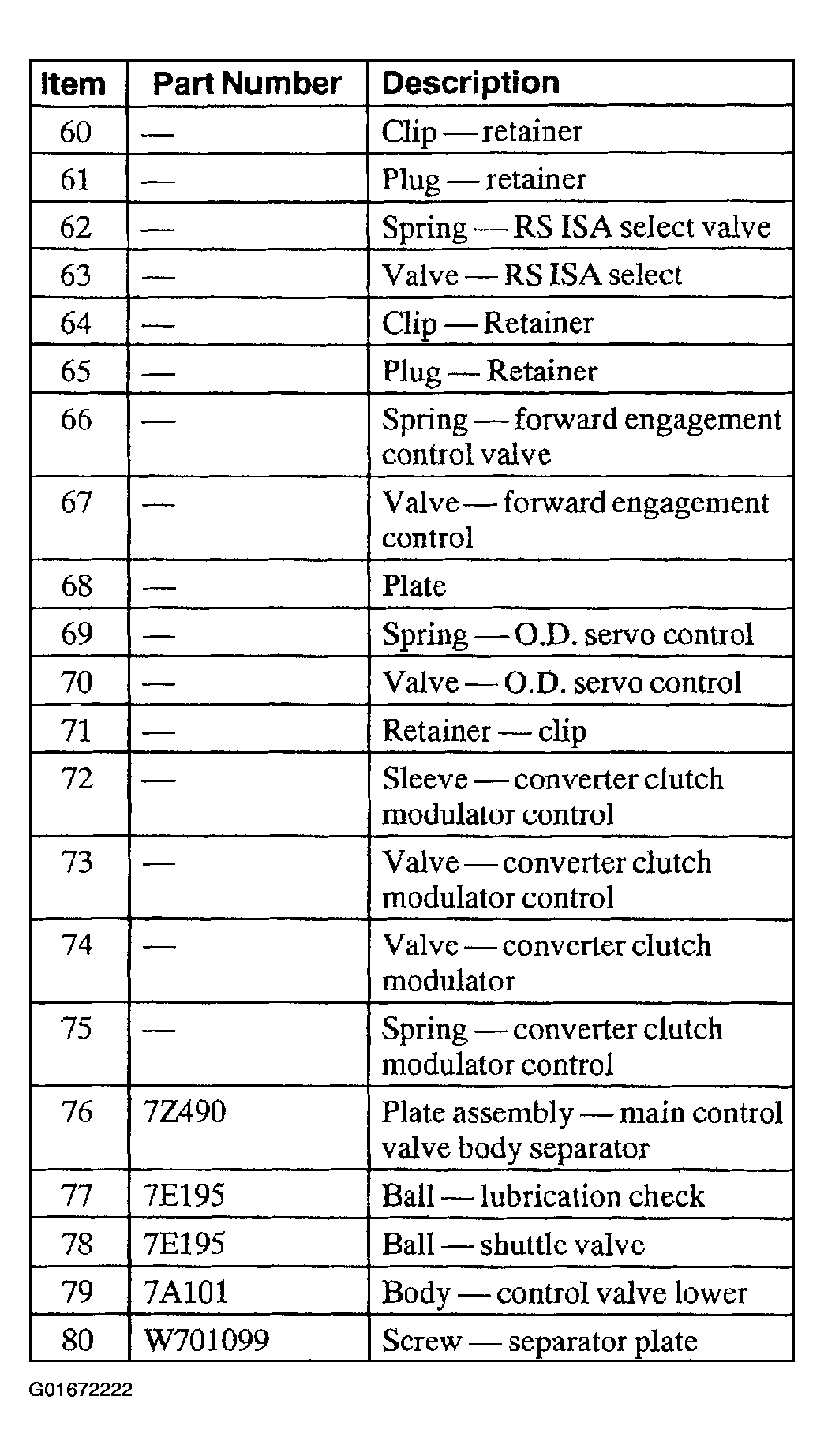

Fig 6: Component View Of Lower Valve Body Legend (Items 60-80)

Courtesy of FORD MOTOR CO.
