Valve - Spring Free Length

  1. Measure the free length of each valve spring.
    • Refer to the appropriate ENGINE article .
    • If out of specification, install new components as necessary. Refer to the appropriate ENGINE article .

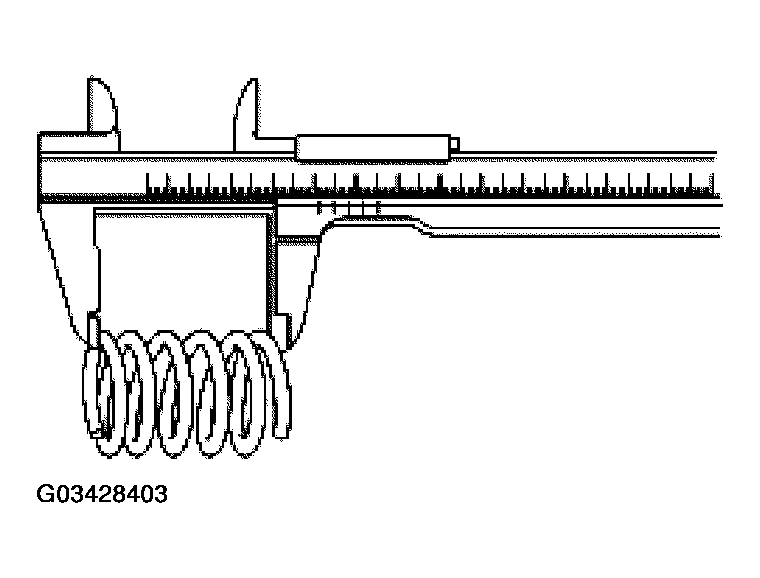

    Fig 1: Measuring Free Length Of Valve Spring
    G03428403Courtesy of FORD MOTOR CO.
