Power Steering System Filling

WARNING: Do not mix oil types, any mixture or any unapproved oil could lead to seal deterioration and leaks. A leak can ultimately cause loss of fluid, which can result in a loss of power steering assist.

Fill the reservoir.
- Use MERCON® Multi-Purpose(ATF) Transmission Fluid XT-2-QDX or equivalent meeting Ford Specification MERCON®.

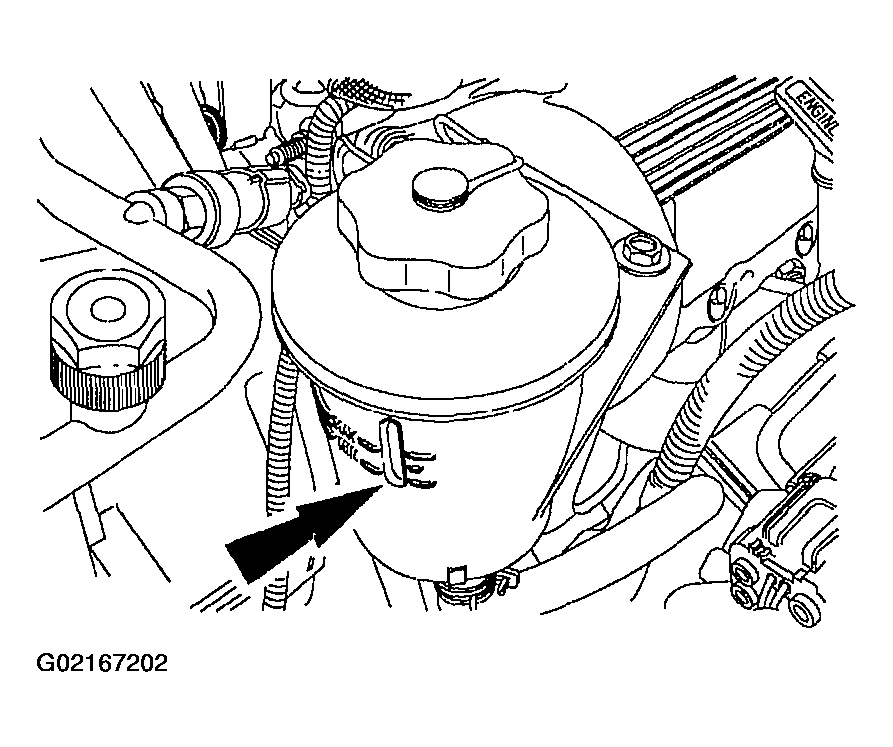

  Fig 1: Identifying Reservoir Oil Minimum And Maximum Level
  Courtesy of FORD MOTOR CO.
Remove the ignition coil fuse to disable the vehicle.
Raise the front wheels off the floor.

CAUTION: Do not crank the engine for more than 15 seconds at a time. Allow the starter to cool for 1 minute before cranking again. Premature starter failure can occur.

CAUTION: Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump can occur.

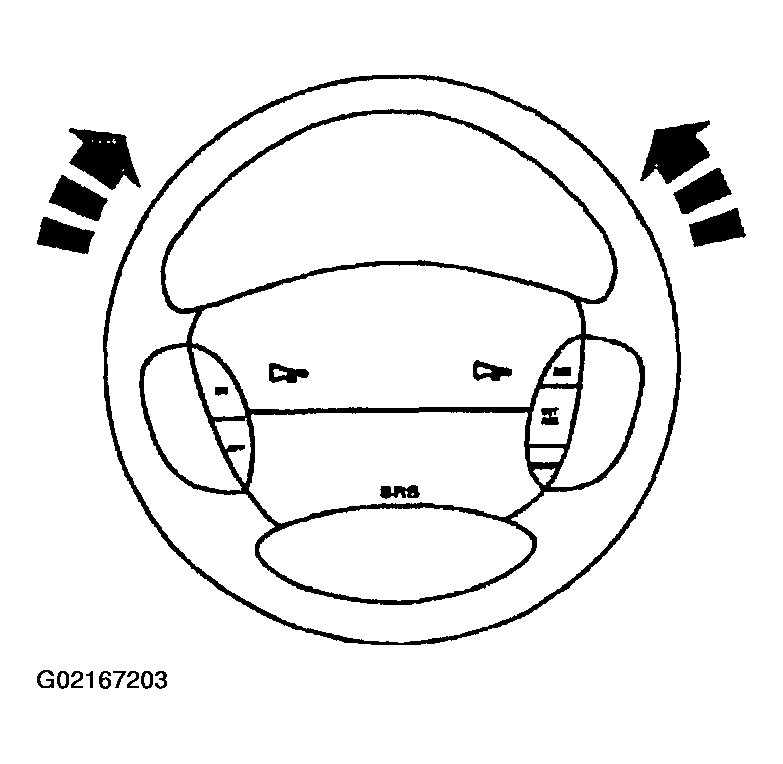

Fig 2: Turning Steering Wheel From Stop-To-Stop

Courtesy of FORD MOTOR CO.

Turn the steering wheel from stop-to-stop while cranking the engine.
Lower the vehicle.

CAUTION: Do not overfill the reservoir.

Fill the reservoir.
- Use MERCON® Multi-Purpose(ATF) Transmission Fluid XT-2-QDX or equivalent meeting Ford Specification MERCON®.

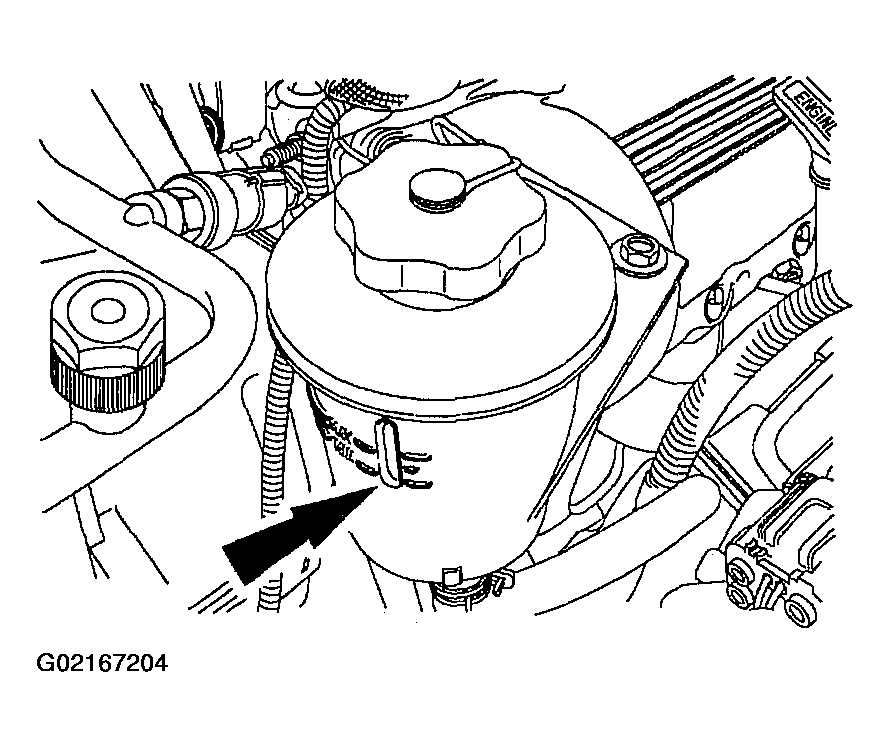

  Fig 3: Identifying Reservoir Oil Minimum And Maximum Level
  Courtesy of FORD MOTOR CO.
Install the ignition coil fuse.
