Coolant Temperature Sensor/Switch (For Computer): Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Drain the cooling system.

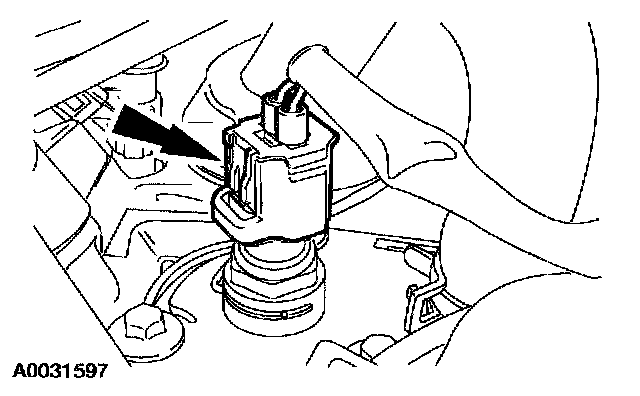

3. Disconnect the ECT sensor electrical connector.

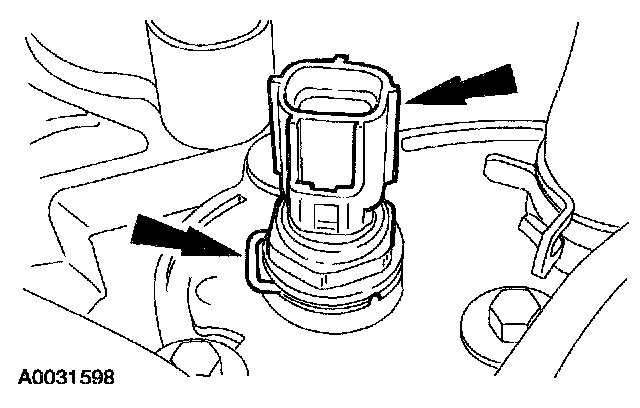

4. Remove the ECT sensor retaining clip and remove the ECT sensor.

INSTALLATION
1. To install, reverse the removal procedure.
