Throttle Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground strap.

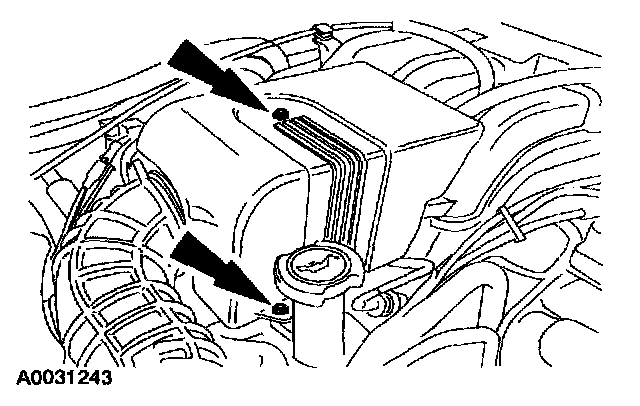

2. Remove the accelerator control snow shield.

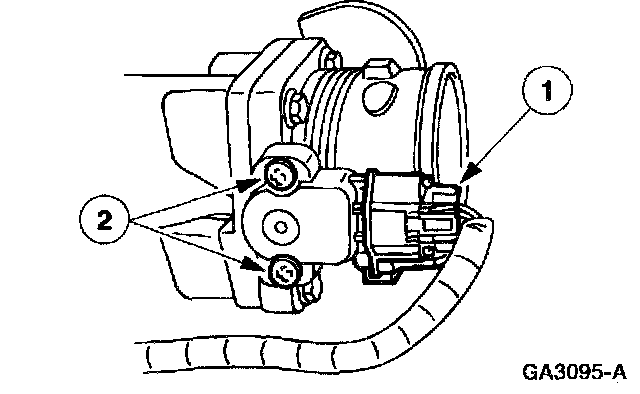

3. Remove the Throttle Position (TP) sensor.
1 Disconnect the electrical connector.
2 Remove the sensor.

INSTALLATION
1. To install, reverse the removal procedure.
