Function Selector Switch Assembly, Front

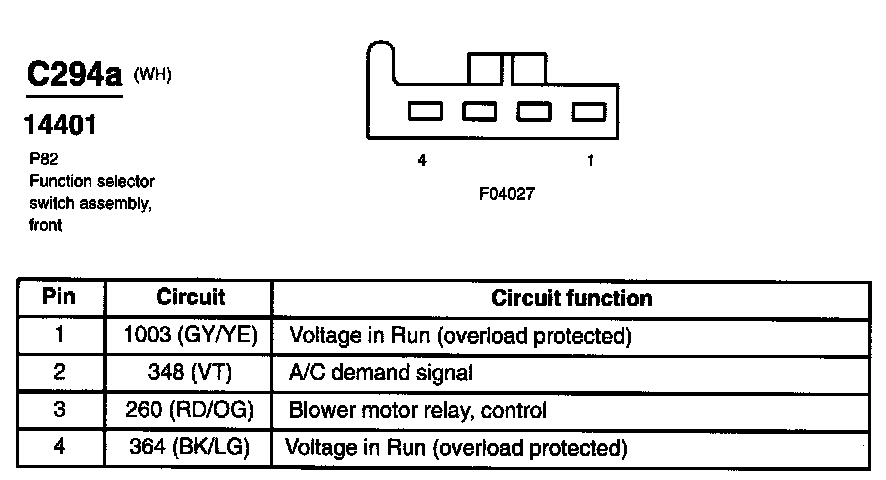

Connector View C294a:

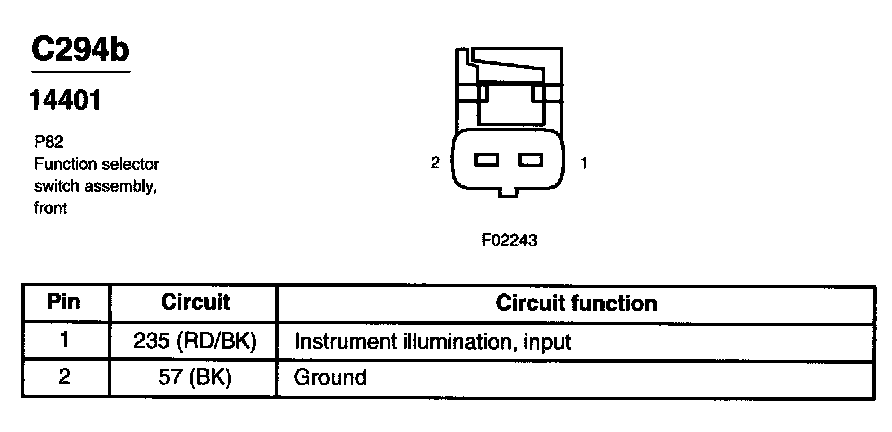

Connector View C294b:

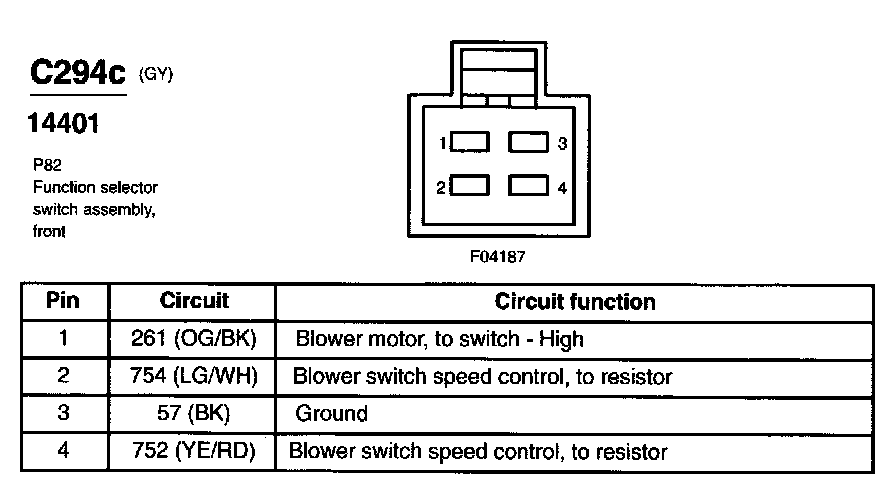

Connector View C294c:

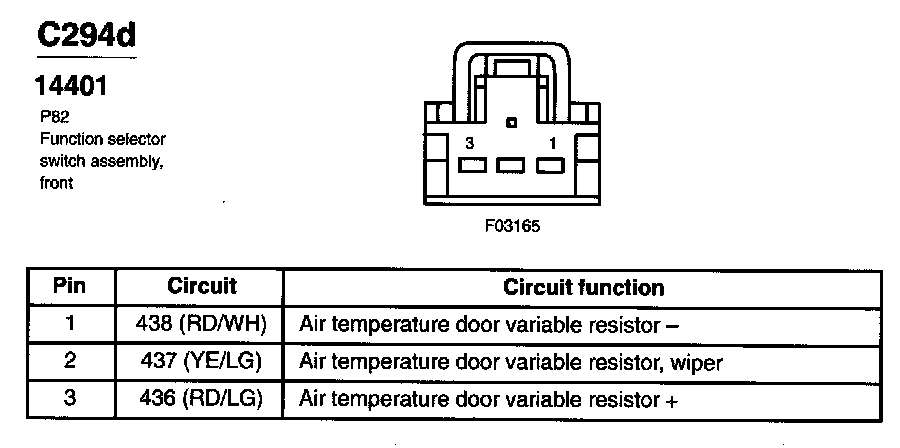

Connector View C294d:
