General Specifications

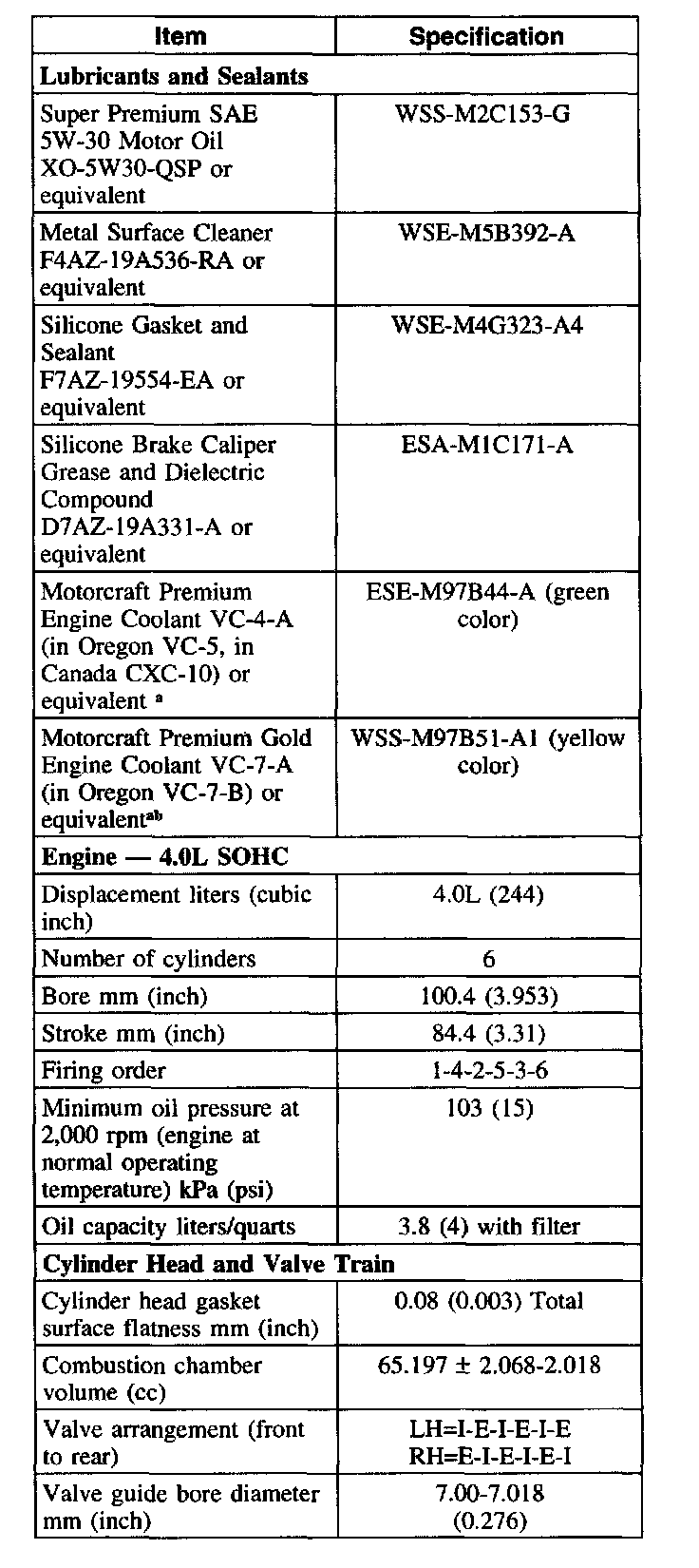

Part 1 of 5

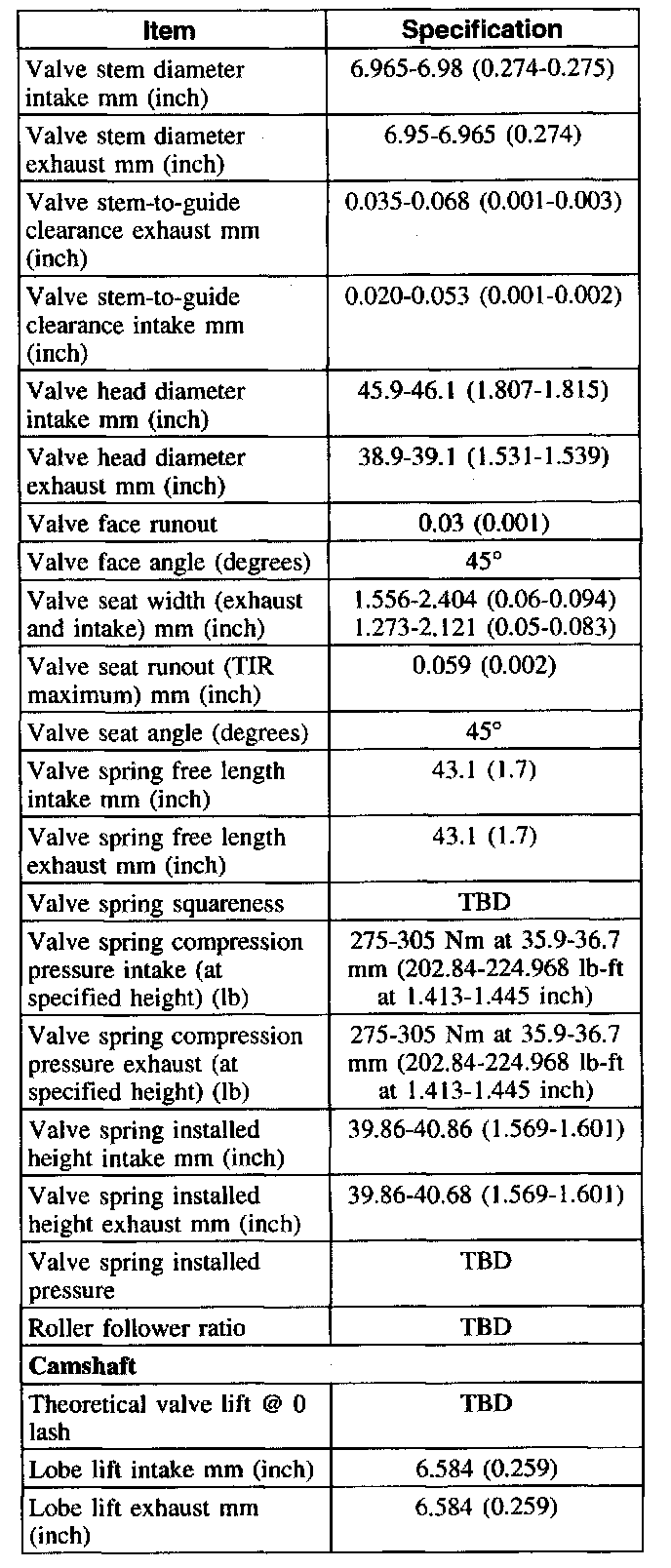

Part 2 of 5

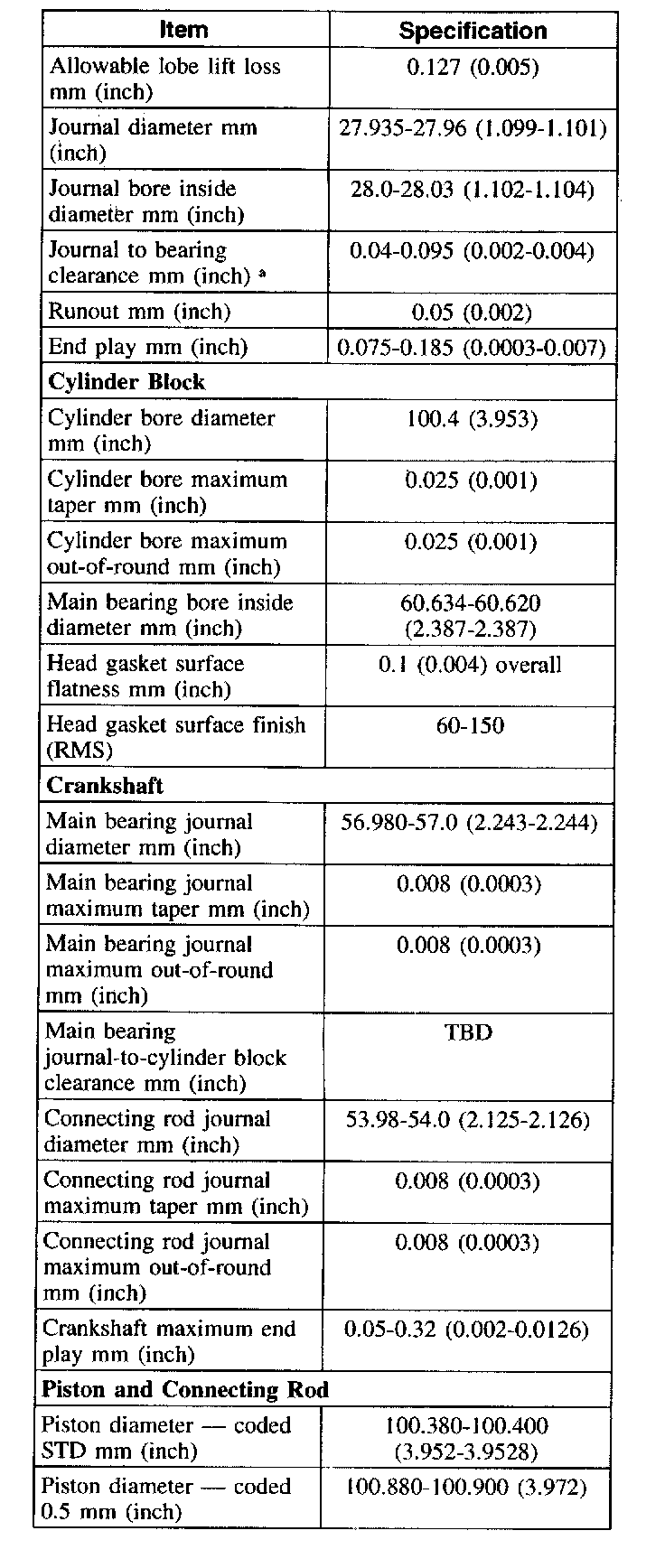

Part 3 of 5

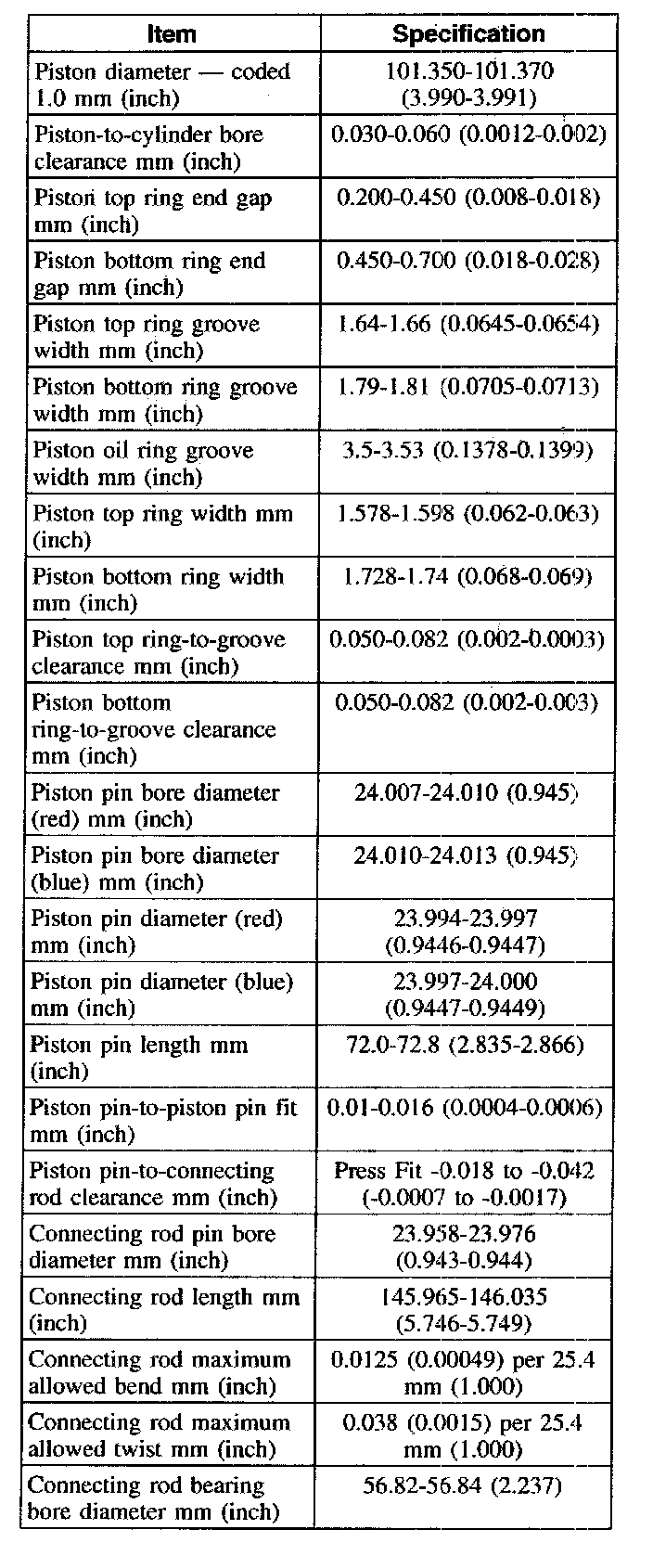

Part 4 of 5

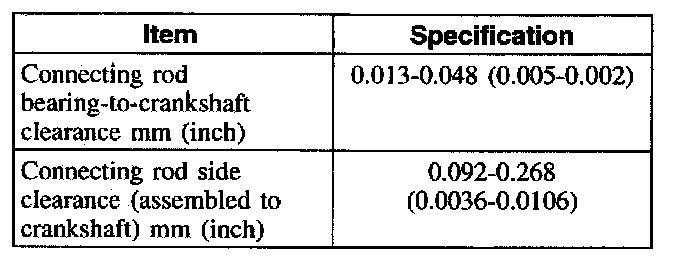

Part 5 of 5

a Use the same type of coolant that was drained from the cooling system. Do not mix coolant types.

b The addition of Motorcraft Cooling System Stop Leak Pellets, VC-6, darkens Motorcraft Premium Gold Engine Coolant from yellow to golden tan.

a Tighten camshaft bearing cap bolts to 15 Nm (11 ft. lbs.) when measuring journal clearance.

General Specification
