Pinpoint Test A: Electronic Shift Functional Test

WARNING: This page is about a different variant/trim than selected.

CAUTION: The function test must be carried out on a hard surface in a vacant area without traffic.

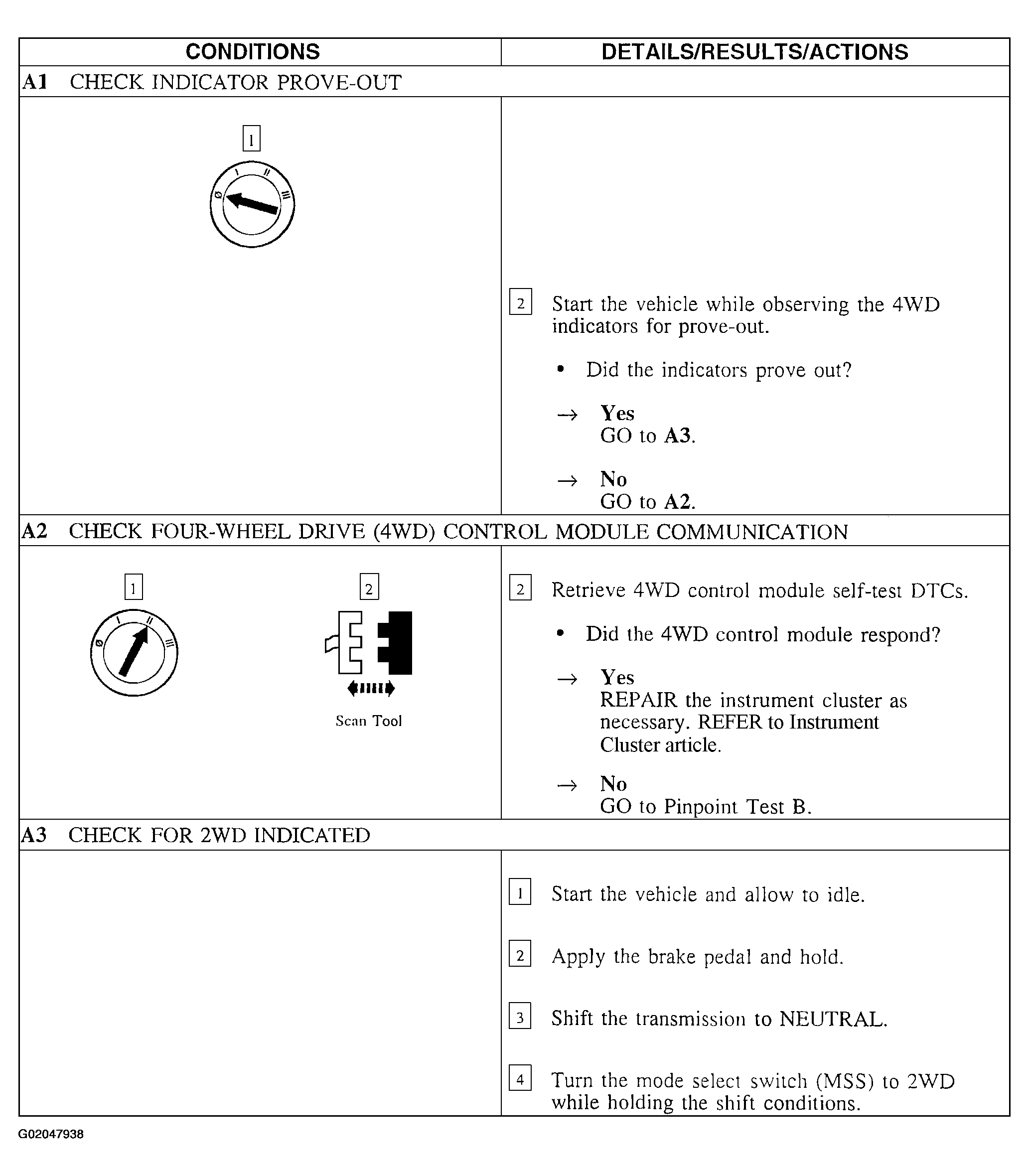

Fig 1: Pinpoint Test A: Electronic Shift Functional Test (Steps A1-A3)

Courtesy of FORD MOTOR CO.

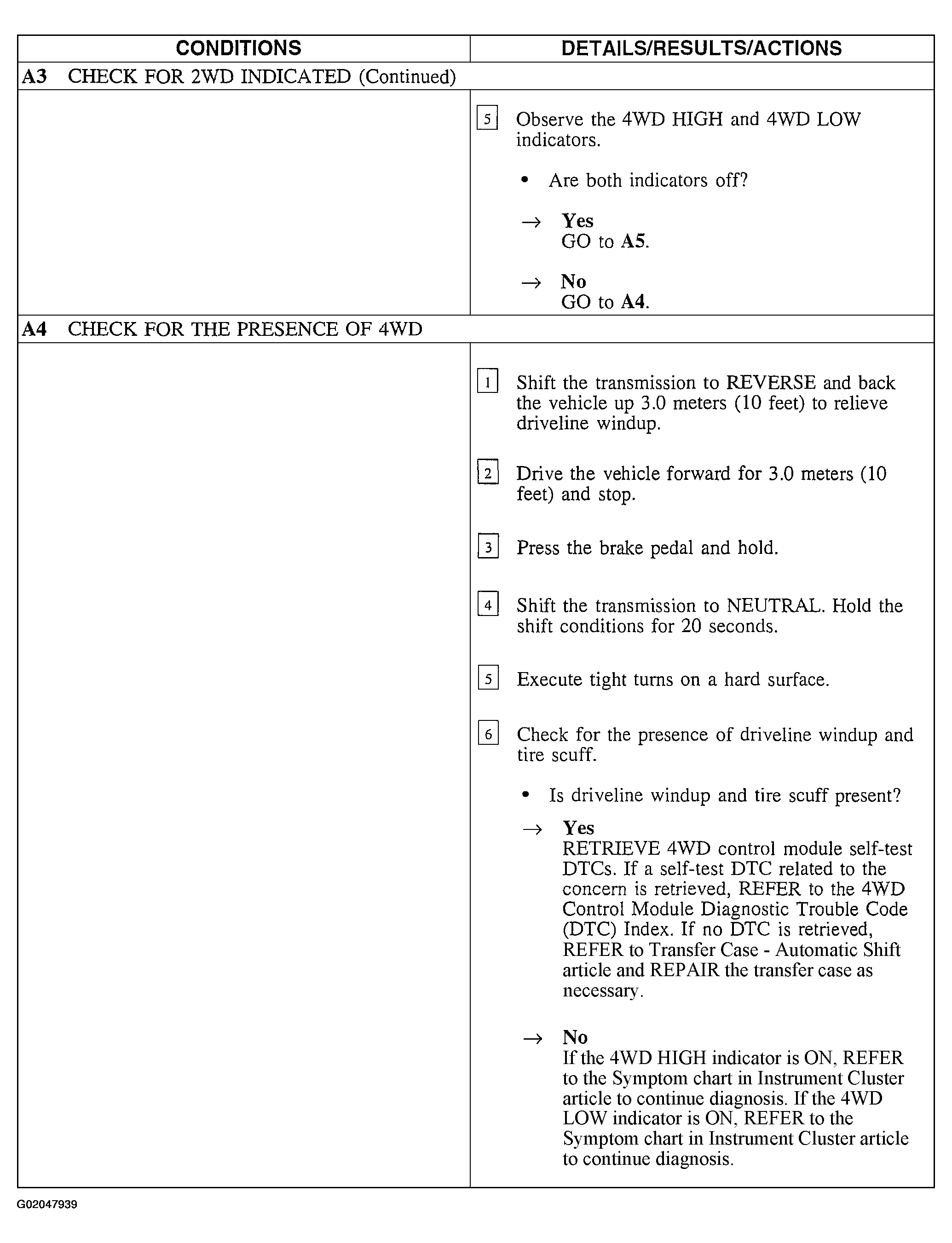

Fig 2: Pinpoint Test A: Electronic Shift Functional Test (Steps A3 Cont. & A4)

Courtesy of FORD MOTOR CO.

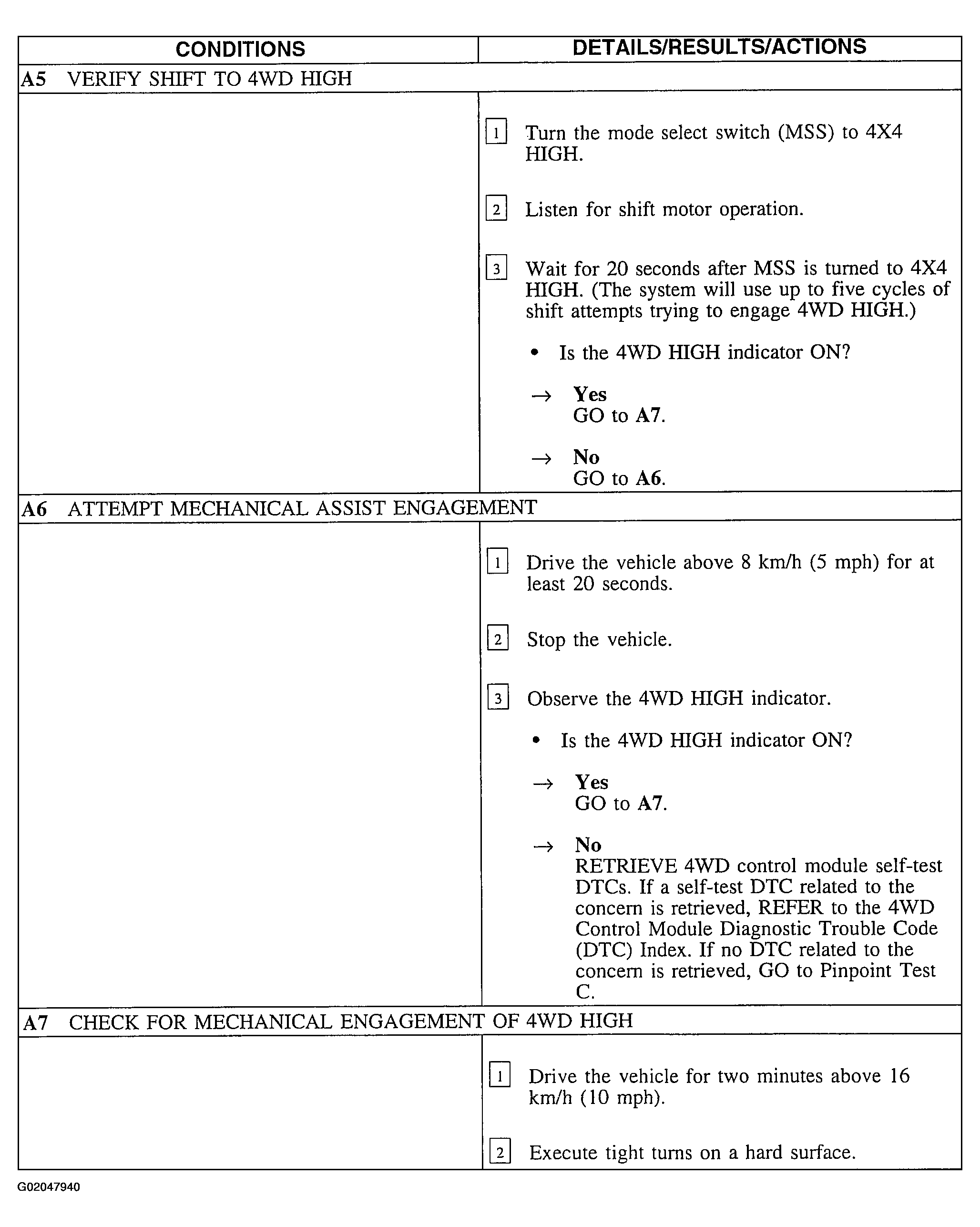

Fig 3: Pinpoint Test A: Electronic Shift Functional Test (Steps A5-A7)

Courtesy of FORD MOTOR CO.

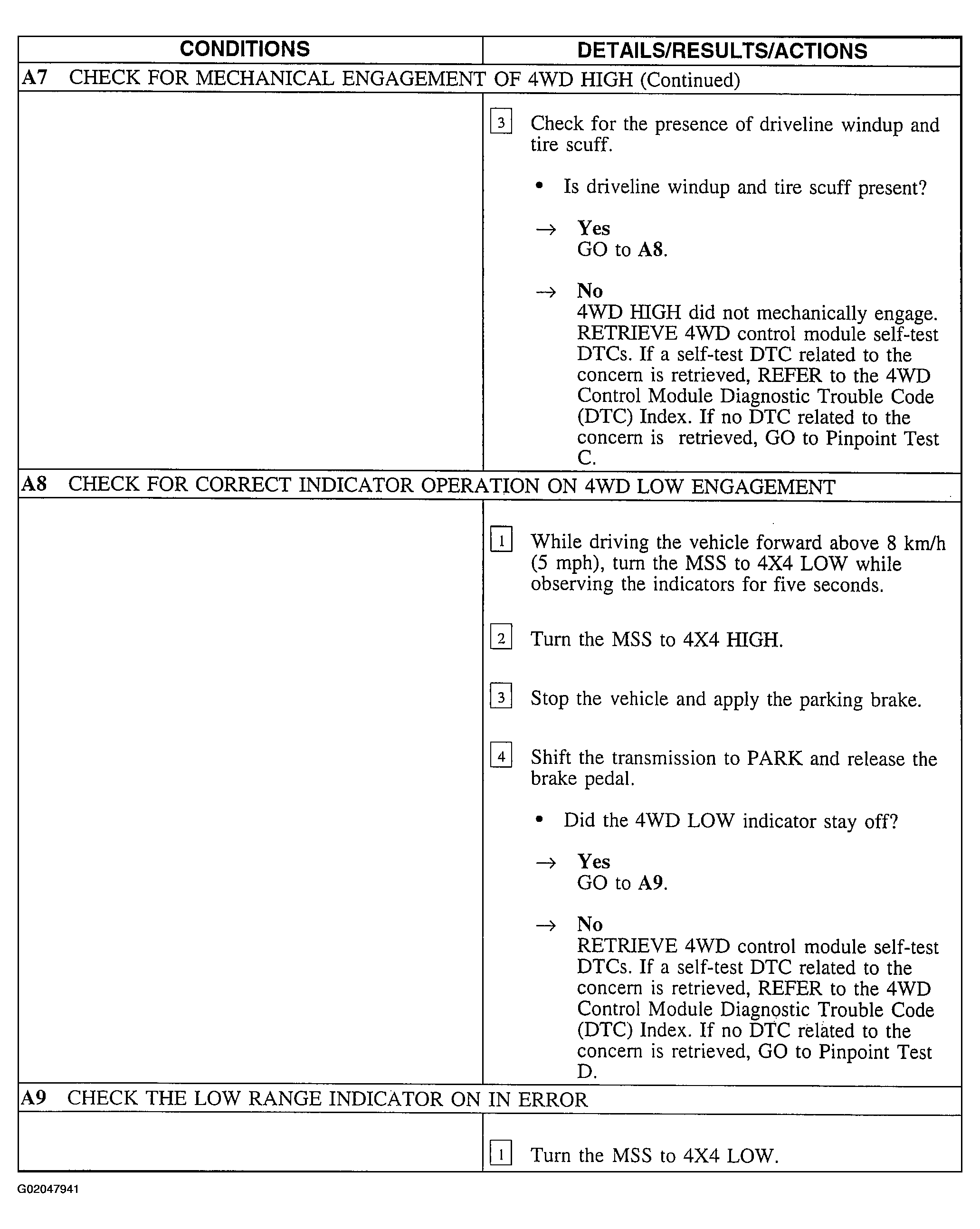

Fig 4: Pinpoint Test A: Electronic Shift Functional Test (Steps A7 Cont.-A9)

Courtesy of FORD MOTOR CO.

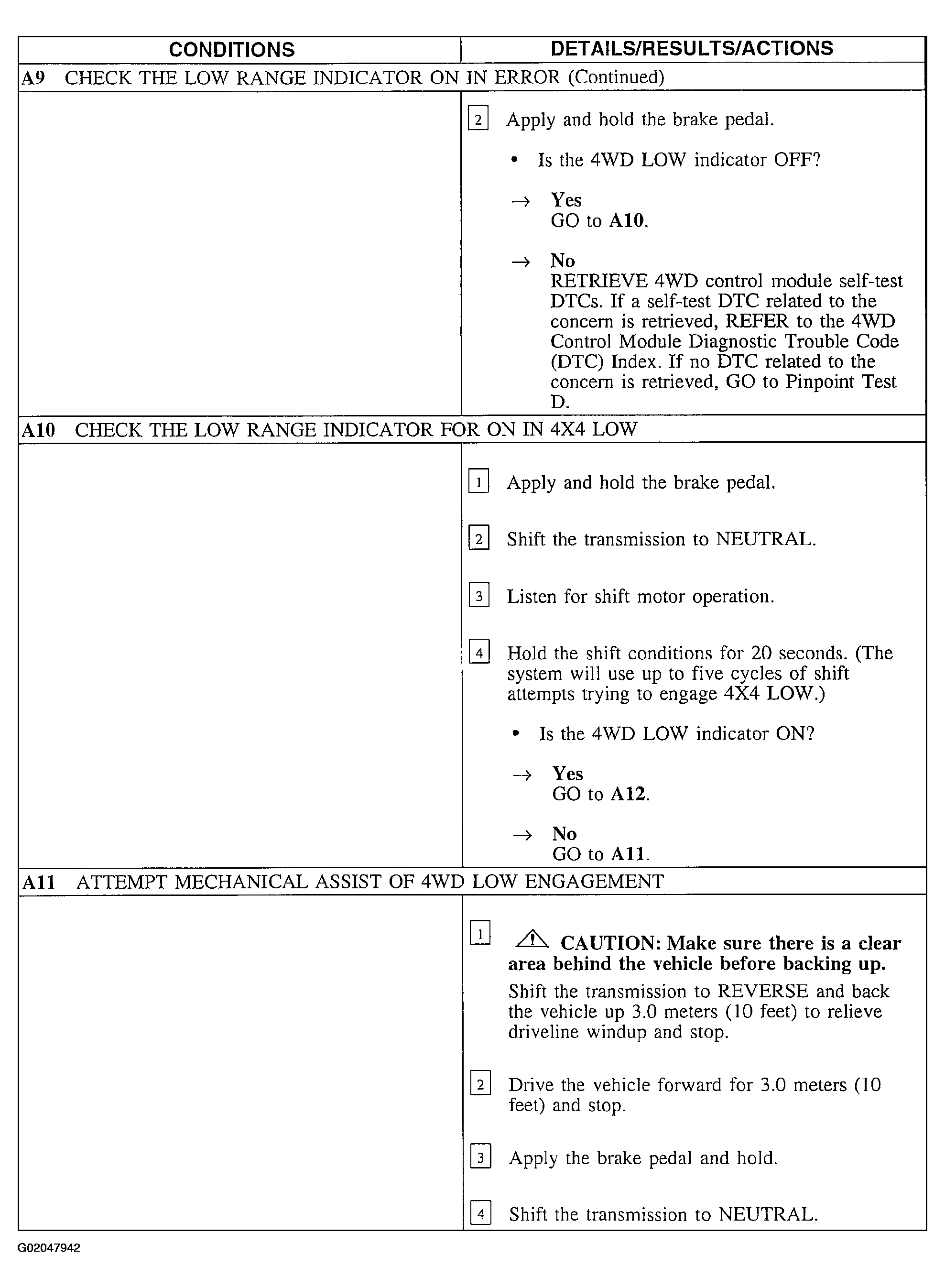

Fig 5: Pinpoint Test A: Electronic Shift Functional Test (Steps A9 Cont.-A11)

Courtesy of FORD MOTOR CO.

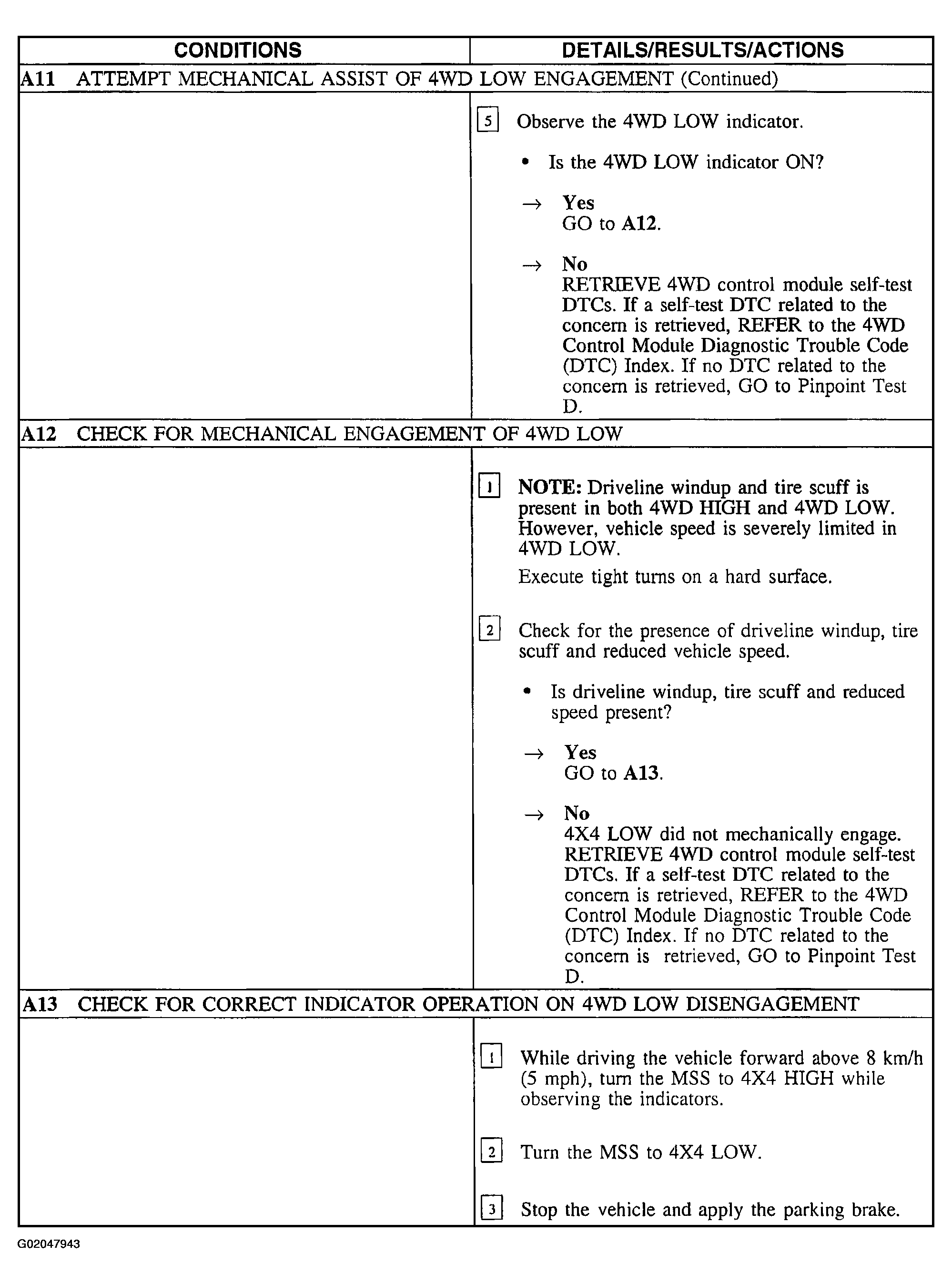

Fig 6: Pinpoint Test A: Electronic Shift Functional Test (Steps A11 Cont.-A13)

Courtesy of FORD MOTOR CO.

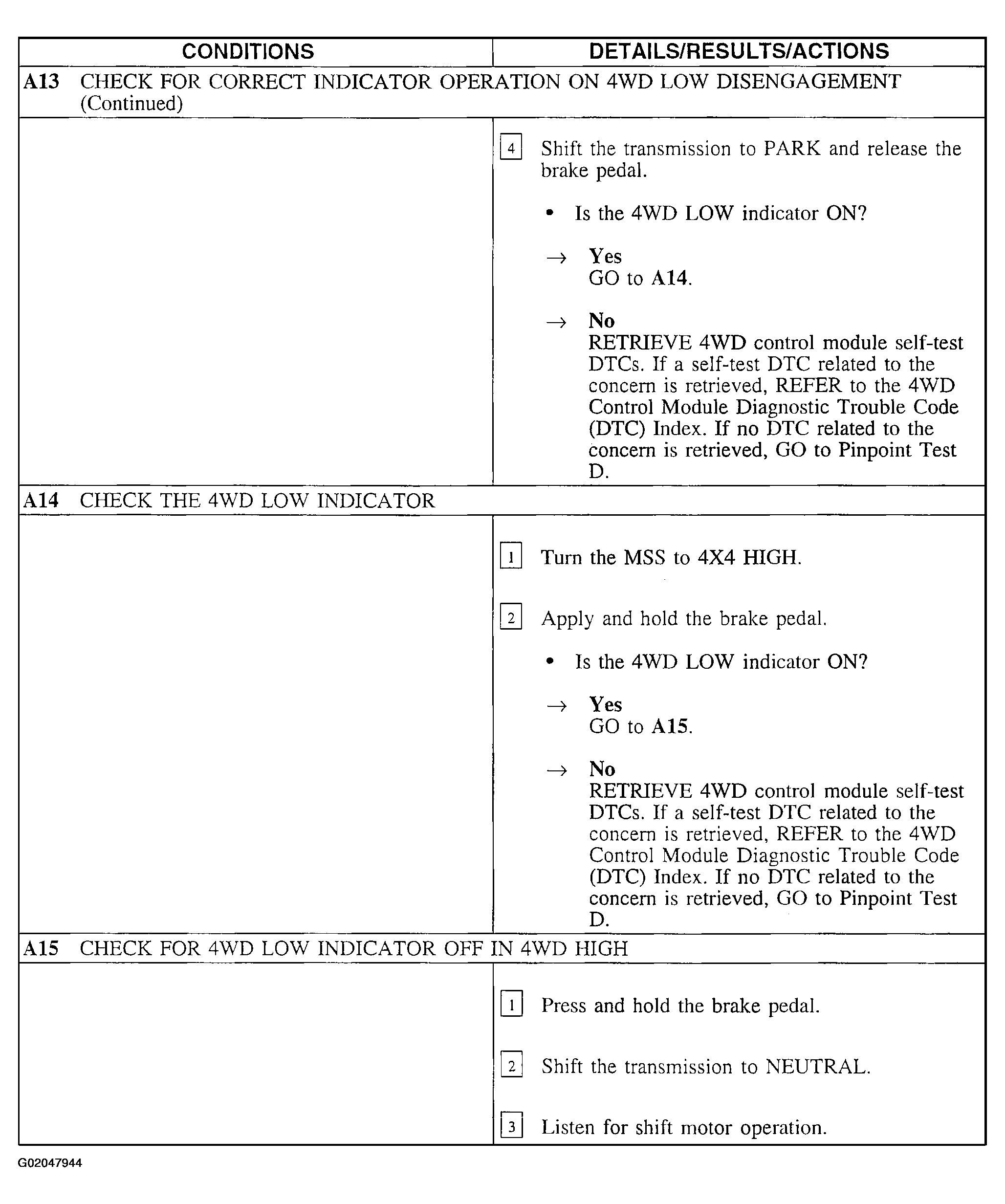

Fig 7: Pinpoint Test A: Electronic Shift Functional Test (Steps A13 Cont.-A15)

Courtesy of FORD MOTOR CO.

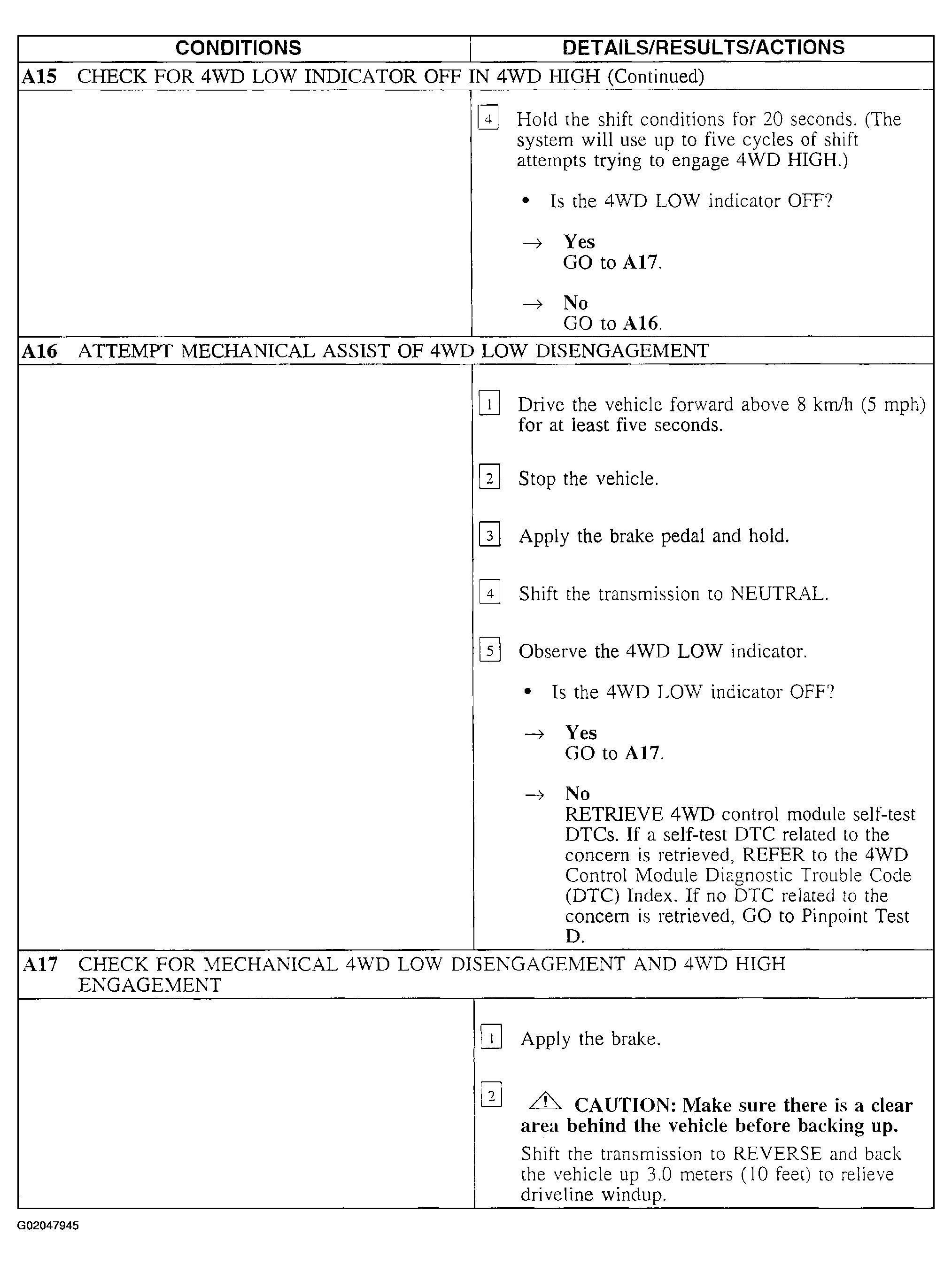

Fig 8: Pinpoint Test A: Electronic Shift Functional Test (Steps A15 Cont.-A17)

Courtesy of FORD MOTOR CO.

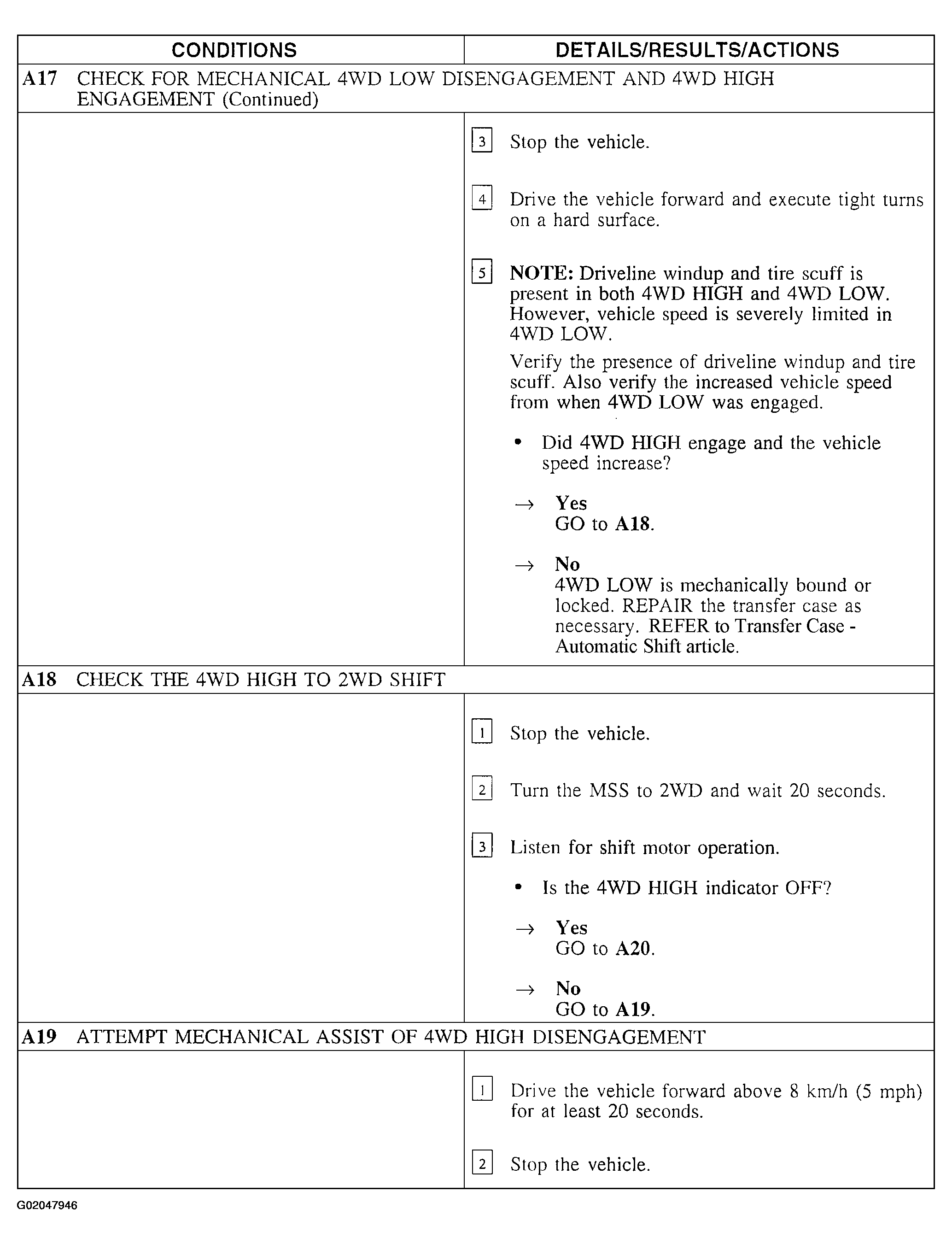

Fig 9: Pinpoint Test A: Electronic Shift Functional Test (Steps A17 Cont.-A19)

Courtesy of FORD MOTOR CO.

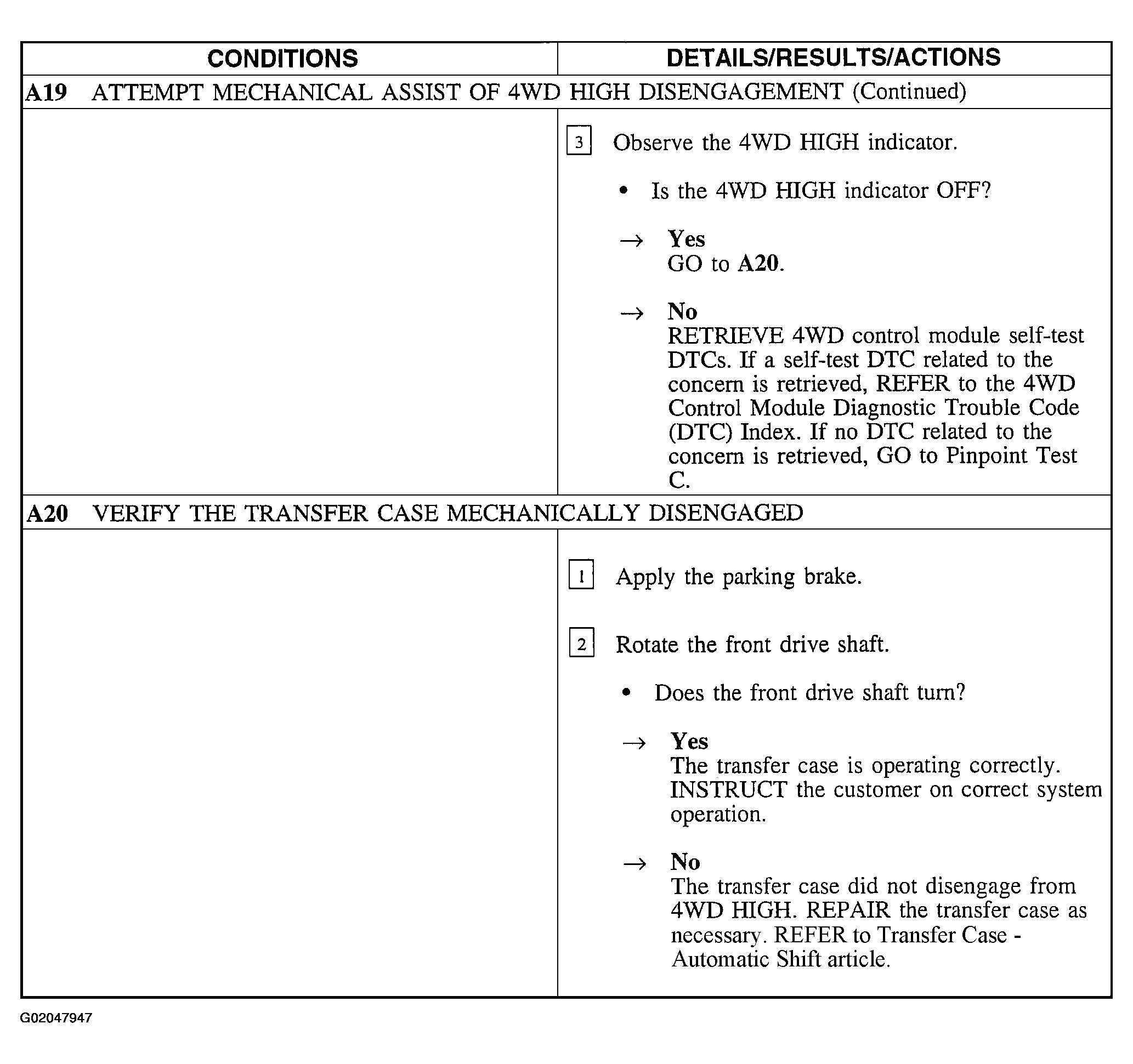

Fig 10: Pinpoint Test A: Electronic Shift Functional Test (Steps A19 Cont. & A20)

Courtesy of FORD MOTOR CO.
