Keyless Entry Key-Pad: Service and Repair

REMOVAL
1. Remove the driver door trim panel.

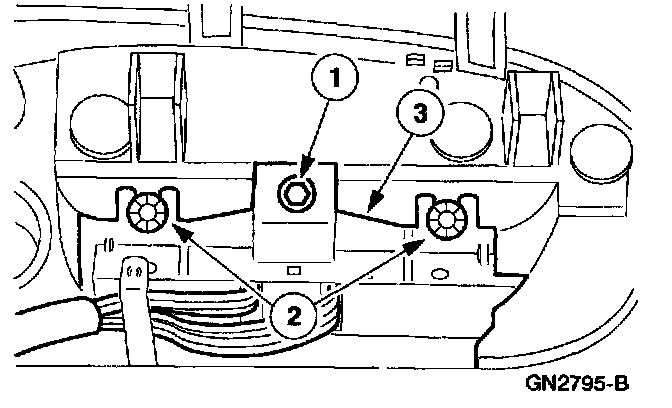

2. Remove the keyless entry keypad.
1 Remove the screw.
2 Remove the speed nuts.
3 Remove the keyless entry keypad.
^ Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
