Ford
>>
2002
>>
F 150 2WD Pickup V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

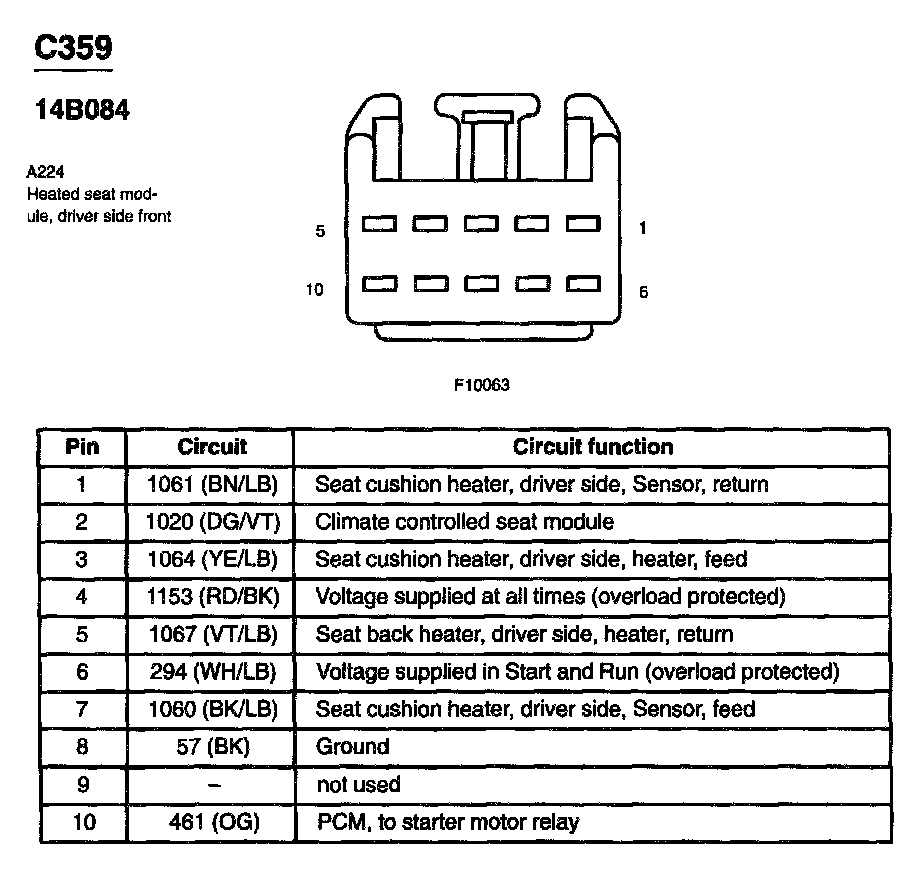

Seat Temperature Control Module
>>
Driver Side, Front
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Driver Side, Front
