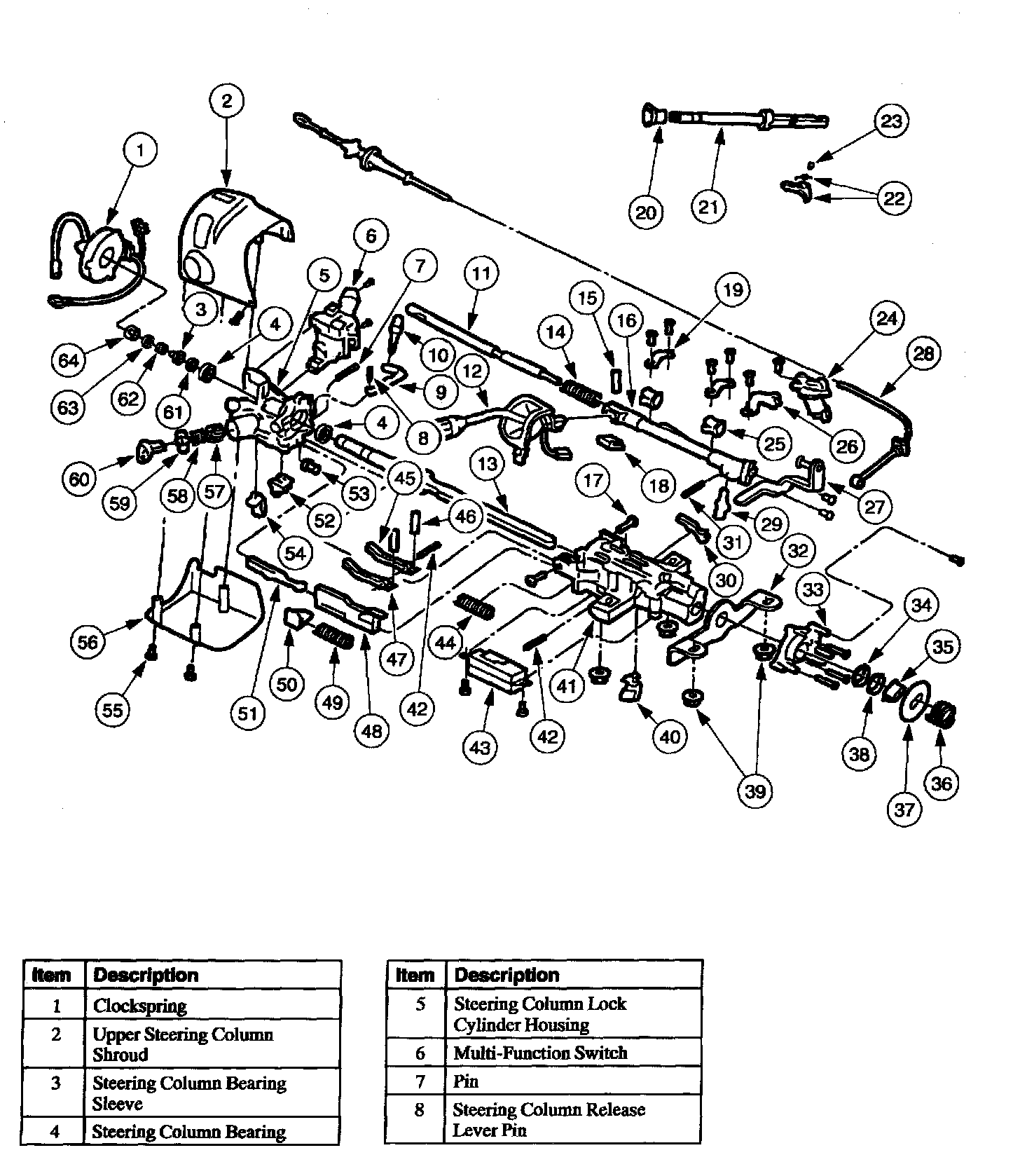

Steering Column

Steering Column

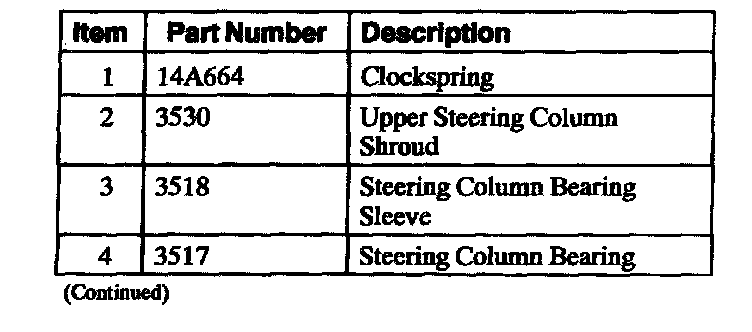

Part 1 of 5

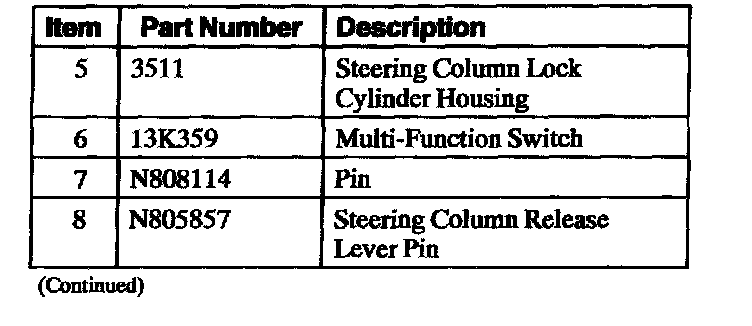

Part 2 of 5





Part 3 of 5





Part 4 of 5

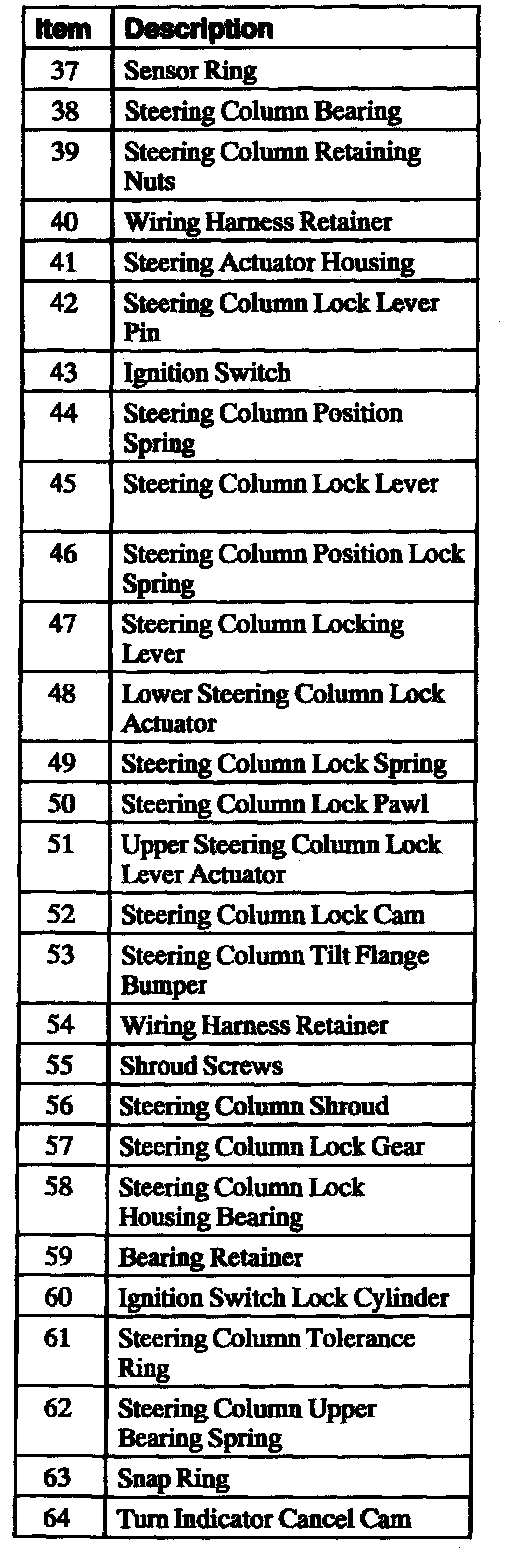

Part 5 of 5
