Electronic Automatic Temperature Control (EATC)

REMOVAL
1. Disconnect the battery ground cable.







2. Detach the center instrument panel finish panel.
1 Rotate the center instrument panel finish panel vents inward.
2 Through the vent openings, grasp the center instrument panel finish panel and pull outward.
3 Detach the center instrument panel finish panel.







3. Disconnect the Passenger Air Bag Deactivation (PAD) switch electrical connector.







4. If equipped, disconnect the 4WD control switch connector. Remove the center instrument panel finish panel.

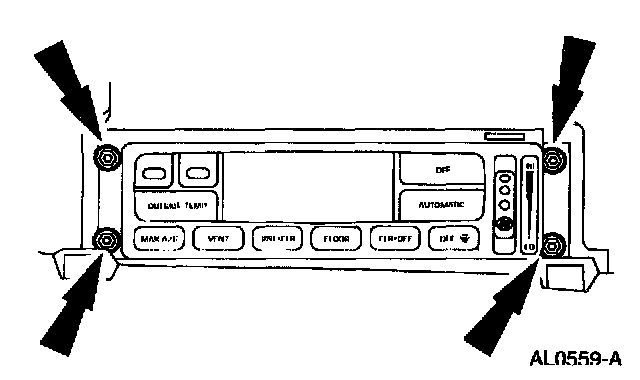

5. Remove the screws.

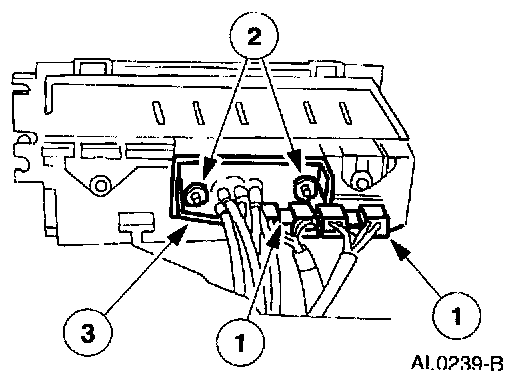

6. Remove the EATC module.
1 Disconnect the electrical connectors.
2 Remove the nuts.
3 Disconnect the vacuum harness connector and remove the EATC module.

INSTALLATION
1. To install, reverse the removal procedure.
