Engine Temperature Sensor: Service and Repair

REMOVAL
1. Remove the intake manifold.

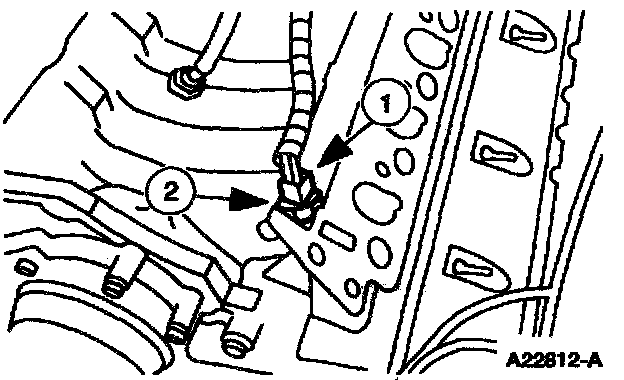

2. Remove the Cylinder Head Temperature (CHT) sensor.
1 Disconnect the connector.
2 Remove the CHT sensor.

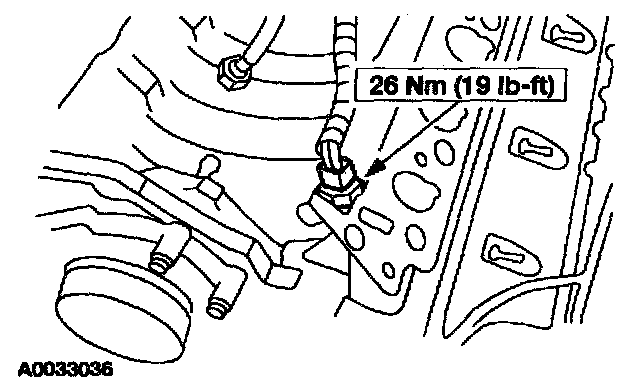

INSTALLATION







1. To install, reverse the removal procedure.
