Home >> Ford >> 2002 >> F 150 4WD Pickup V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transfer Case >> Four Wheel Drive Selector Relay >> Transfer Case Relay Module

April 5, 2026: LEMON Manuals is launched! Read the announcement.

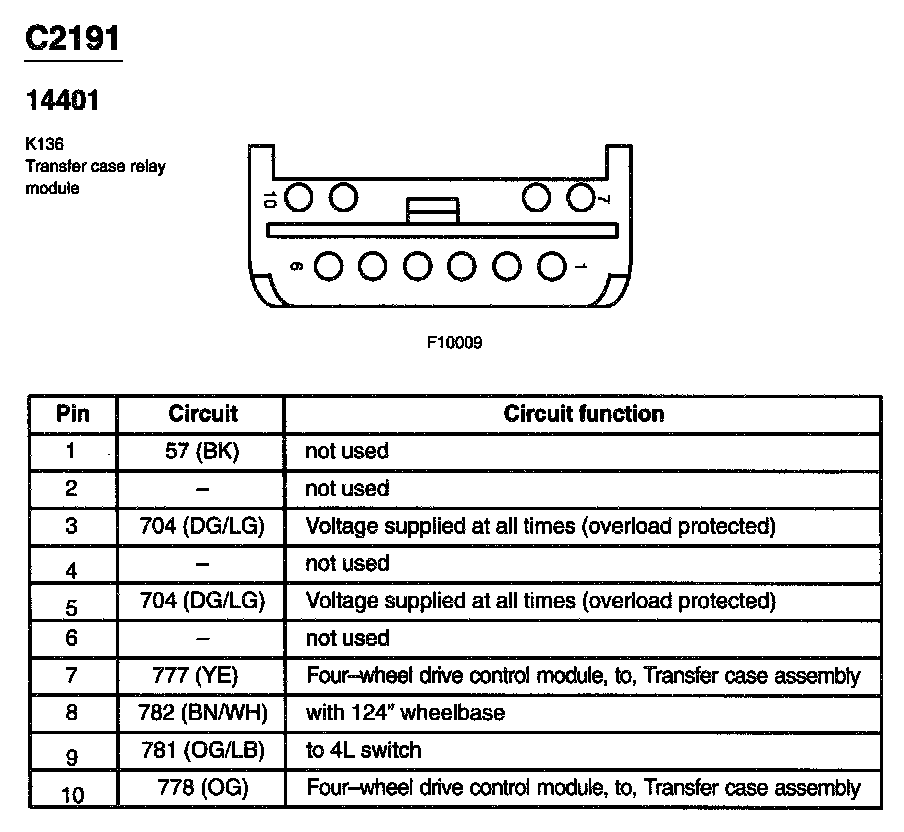

Transfer Case Relay Module
