Ford 8.8 Inch Front Axle
>>
Front Axle Assembly -Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

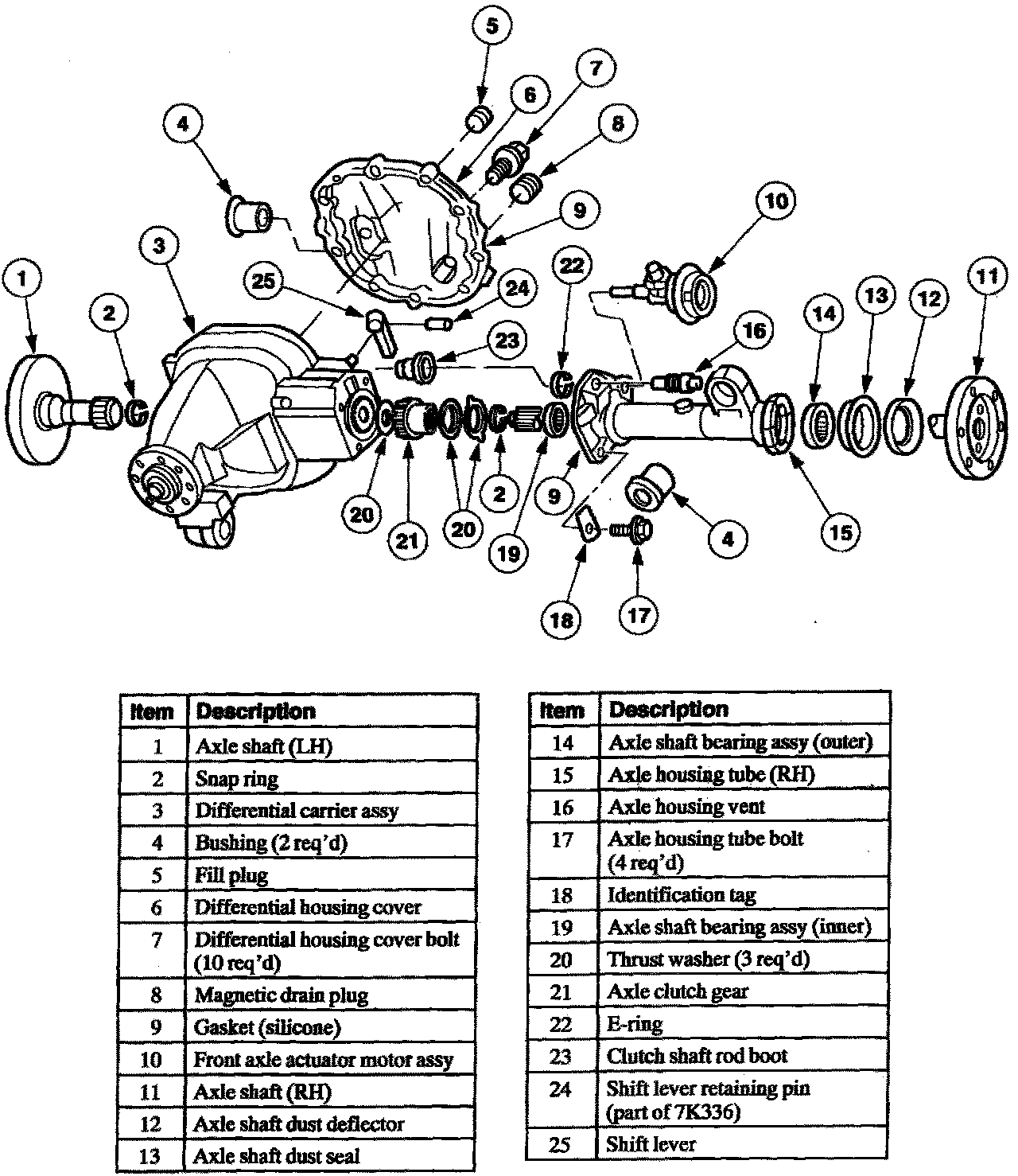

Front Axle Assembly -Exploded View
