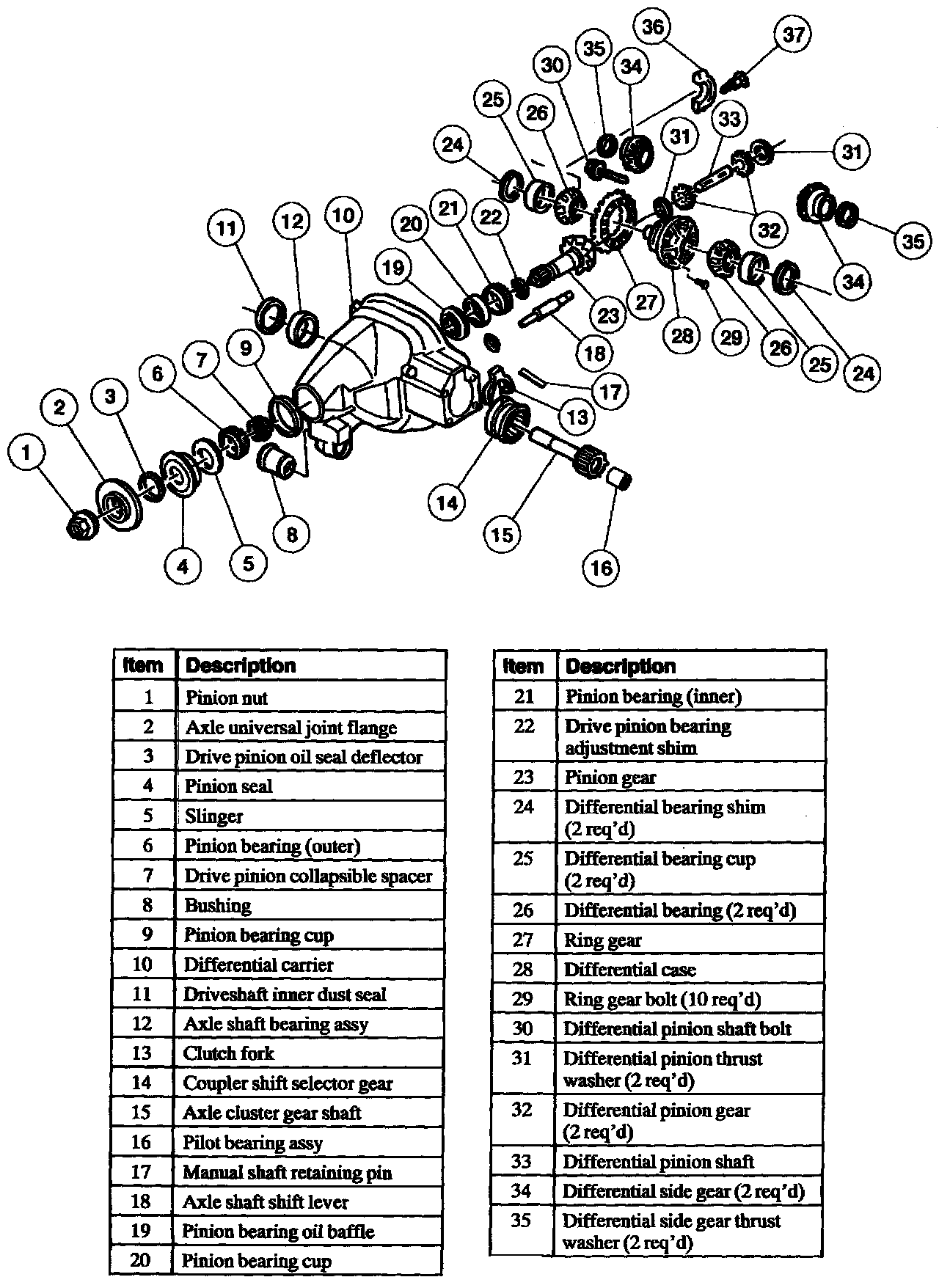

Front Differential-Exploded View
Front Differential-Exploded View
Part 1 of 3
Part 2 of 3

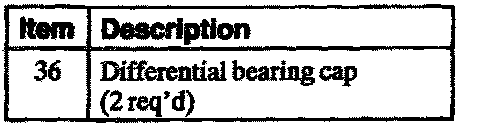

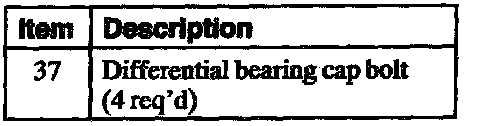

Part 3 of 3
