Ignition Switch: Service and Repair
Ignition SwitchRemoval

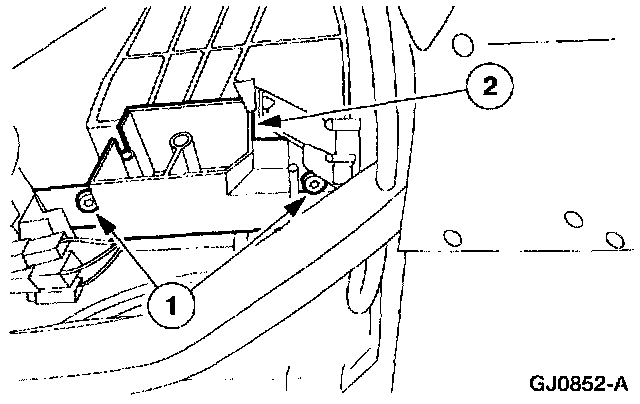

1. Disconnect the battery ground cable.
2. Remove the instrument panel steering column cover.
3. Disconnect the ignition switch electrical connector.
1. Loosen the bolt.
2. Disconnect the electrical connector.

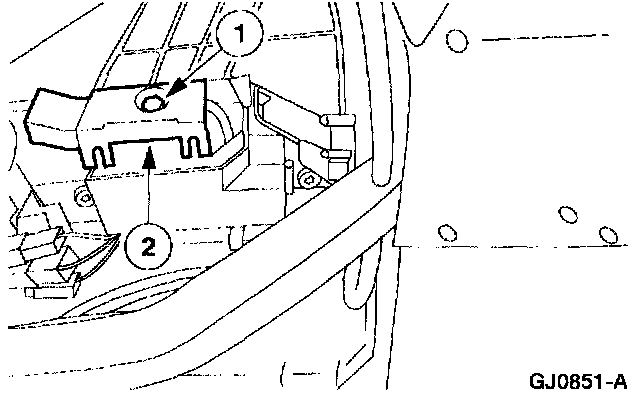

4. Remove the ignition switch.
1. Remove the screws.
2. Remove the ignition switch.

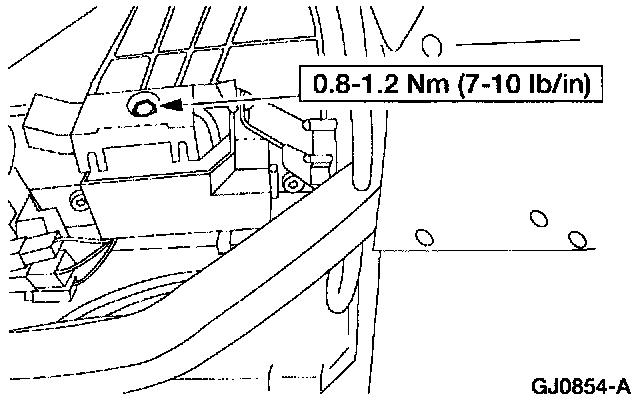

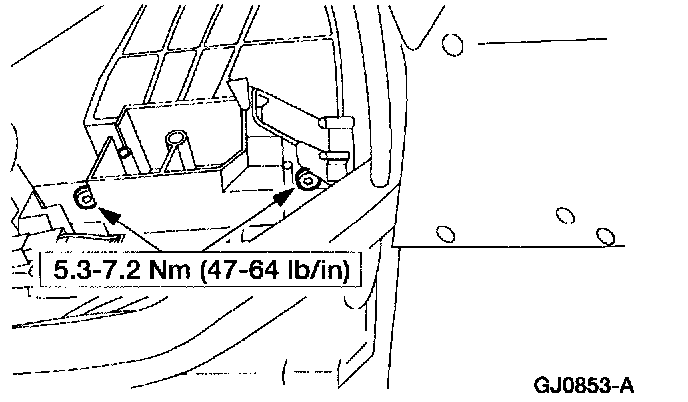

Installation
1. NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi.) or more to relearn the strategy.
To install, reverse the removal procedure.
