ABS Control Module Parameter Identification (PID) Index

ABS Module Parameter Identification (PID) Index

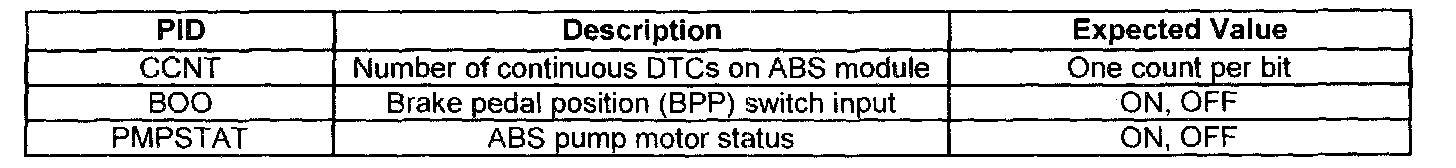

Part 1 of 2

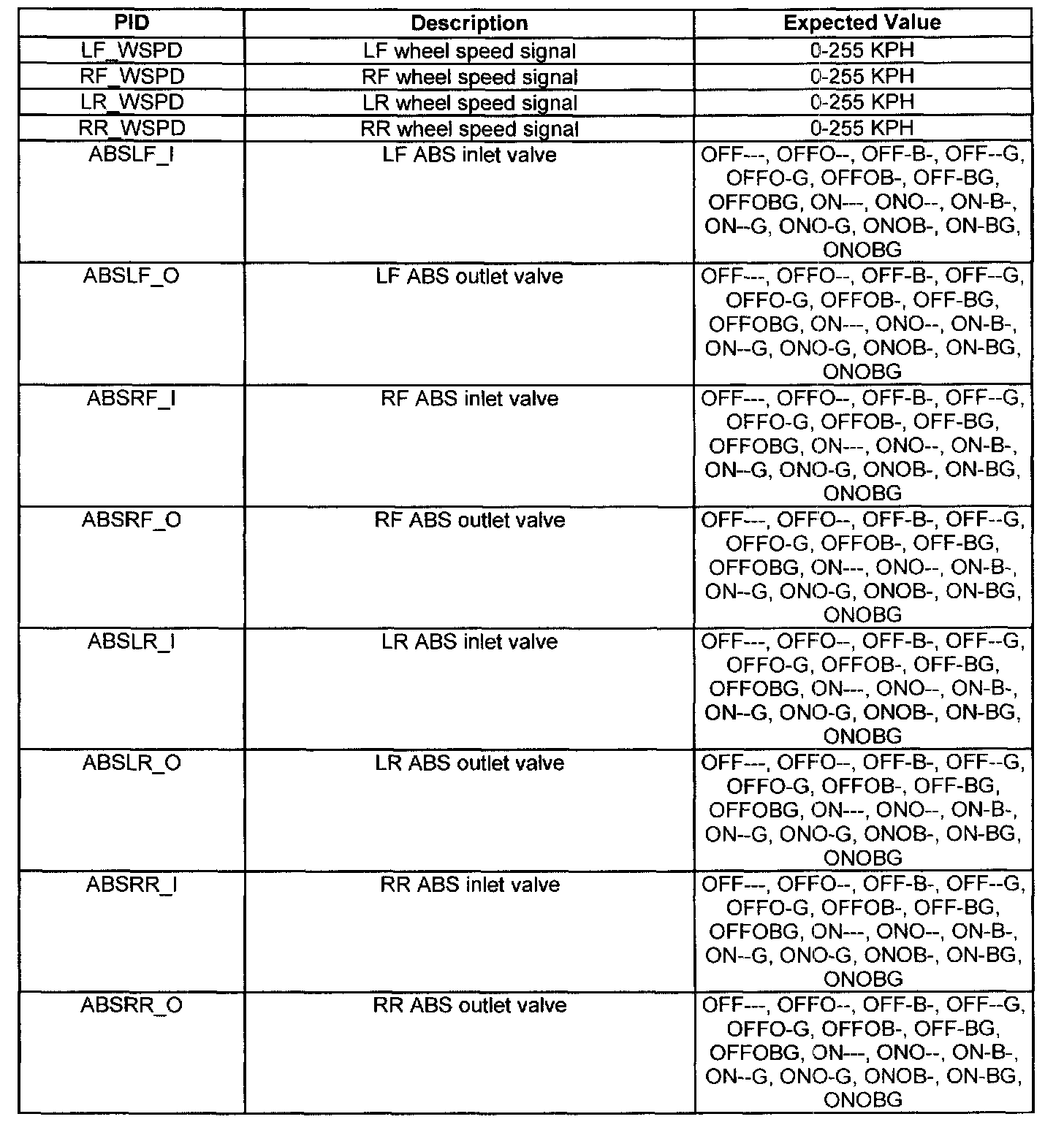

Part 2 of 2
