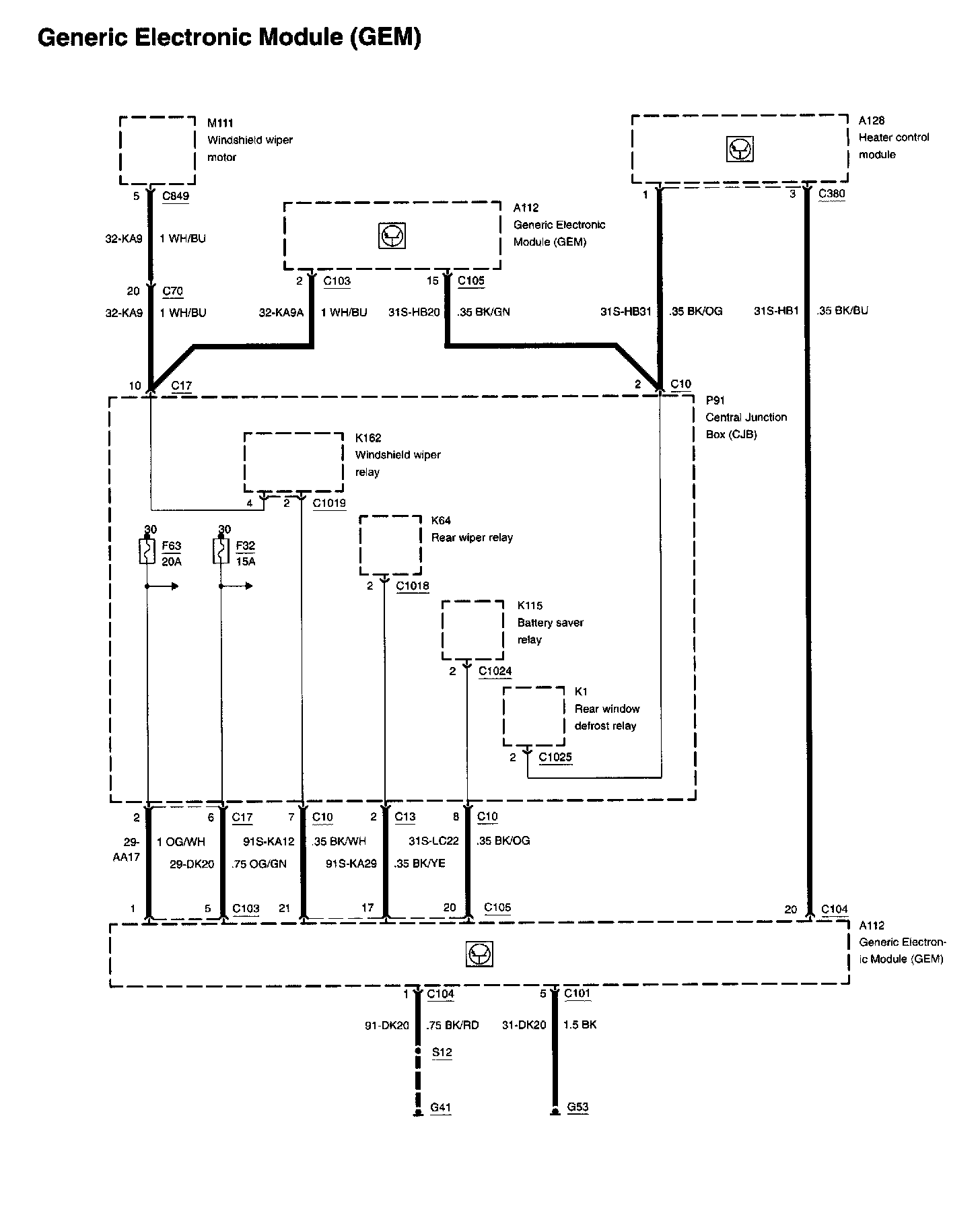

General Module

DETAILED DIAGRAMS

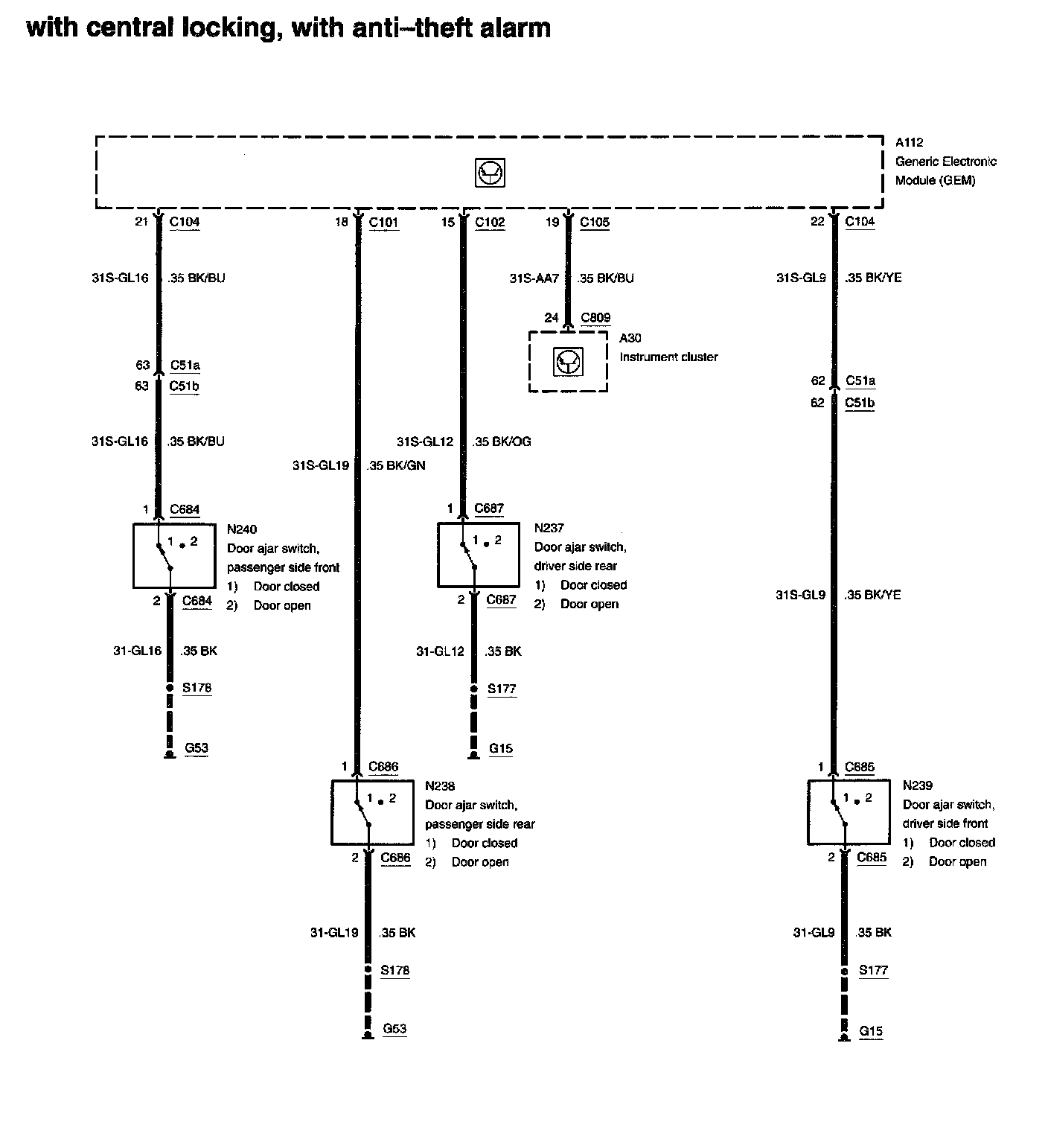

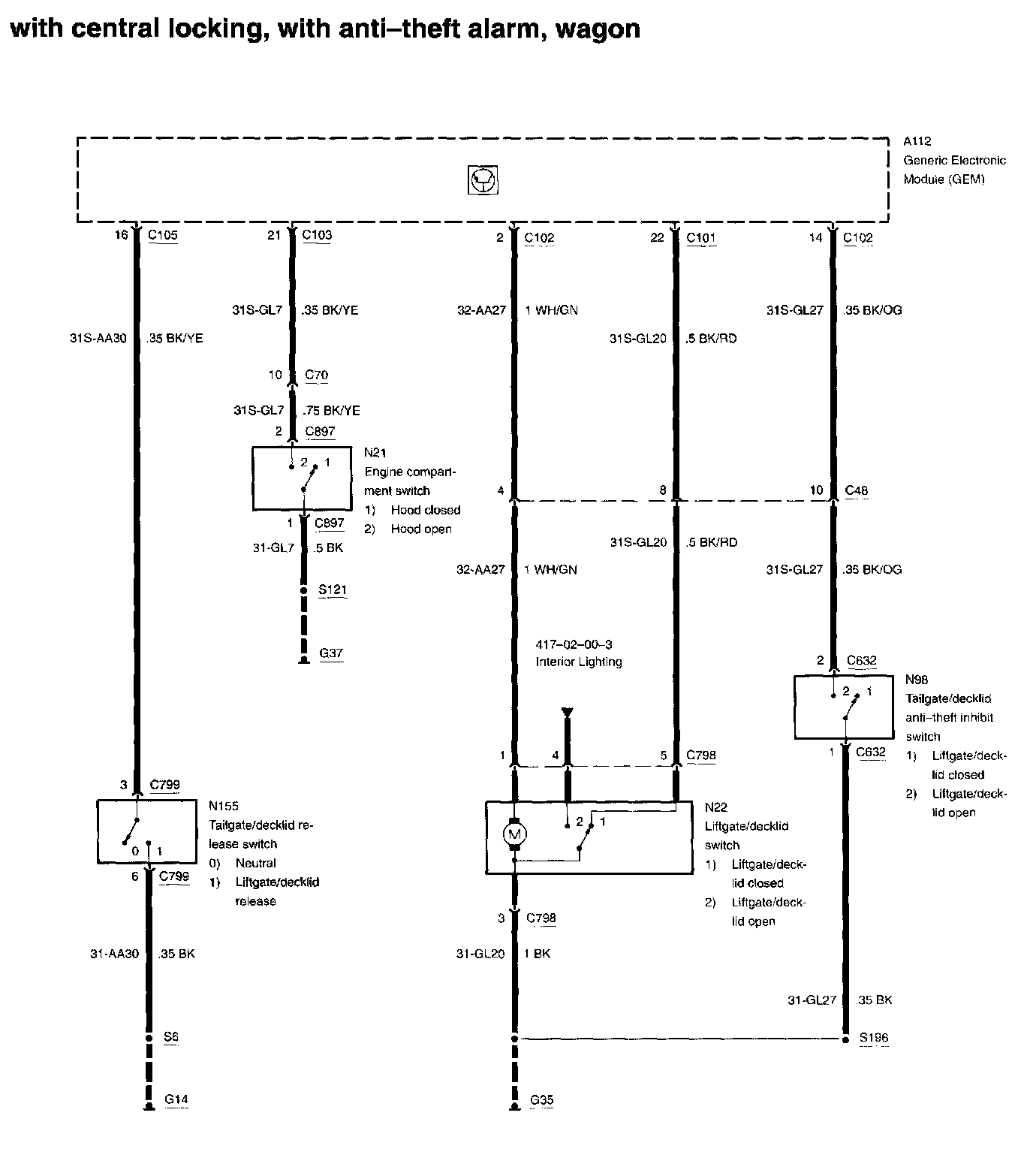

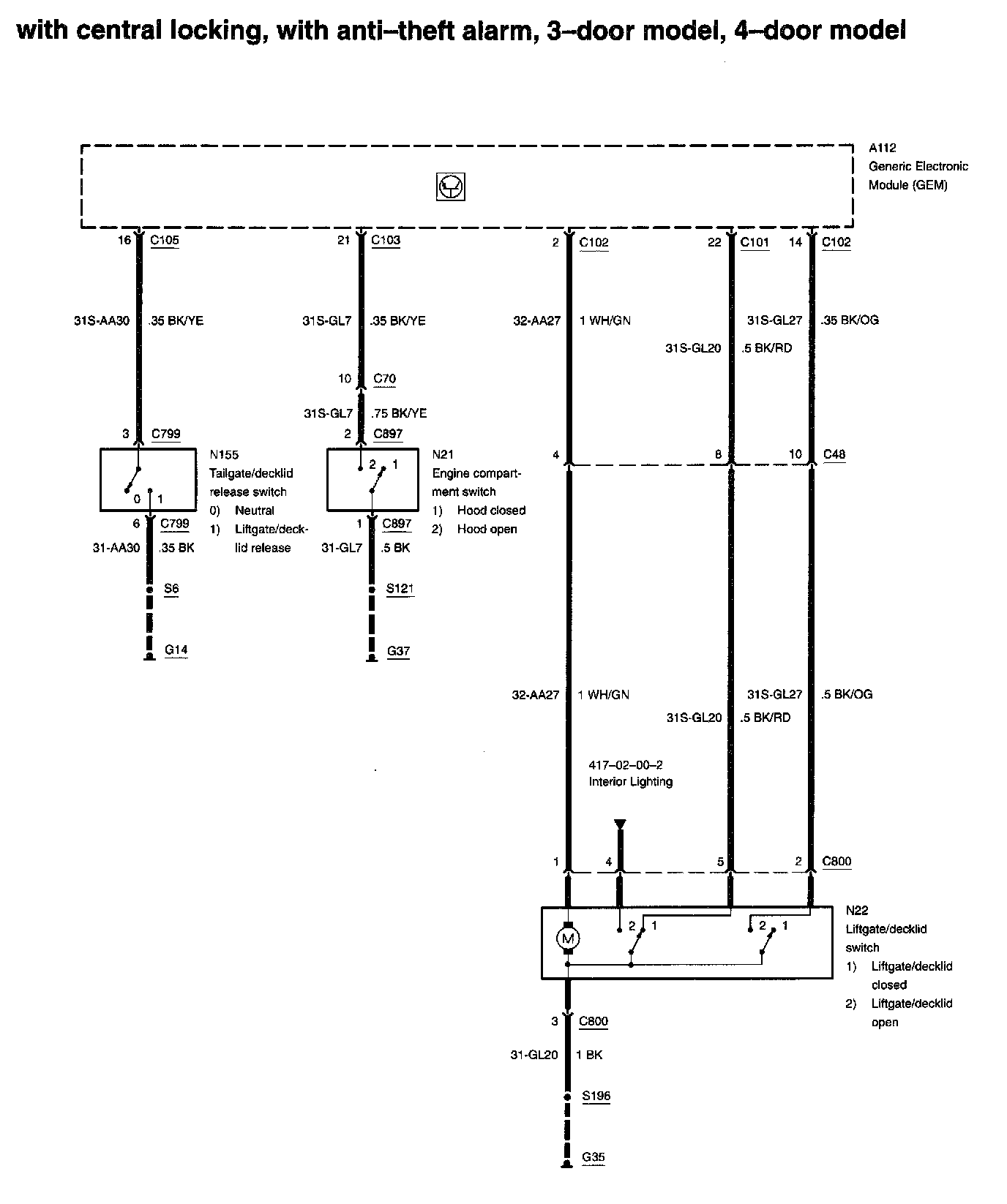

Diagram 419-10-00-1:

Diagram 419-10-00-2:

Diagram 419-10-00-3:

Diagram 419-10-00-4:

Diagram 419-10-00-5:

Diagram 419-10-00-6:

Diagram 419-10-00-7:

RELATED DIAGRAMS

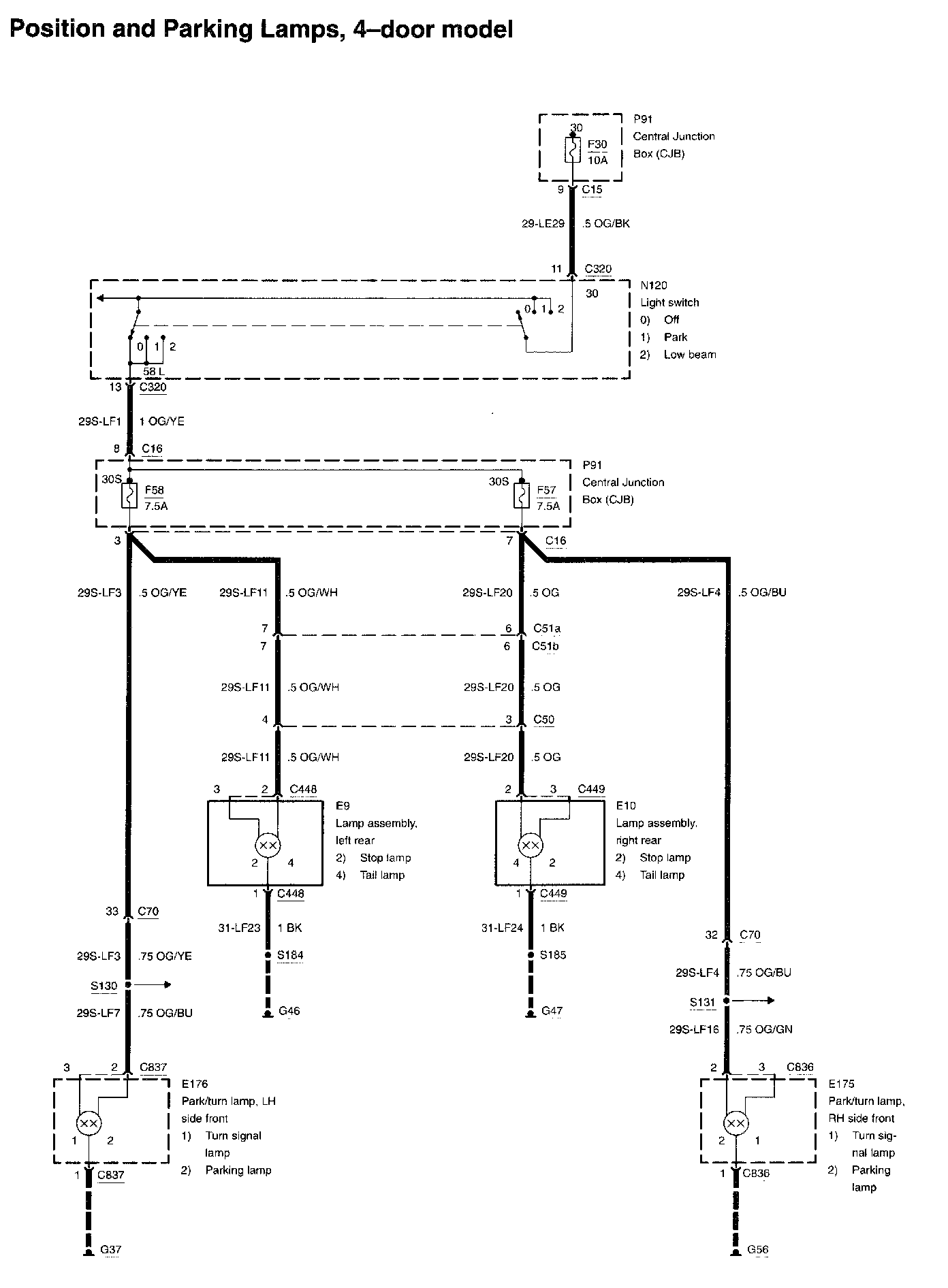

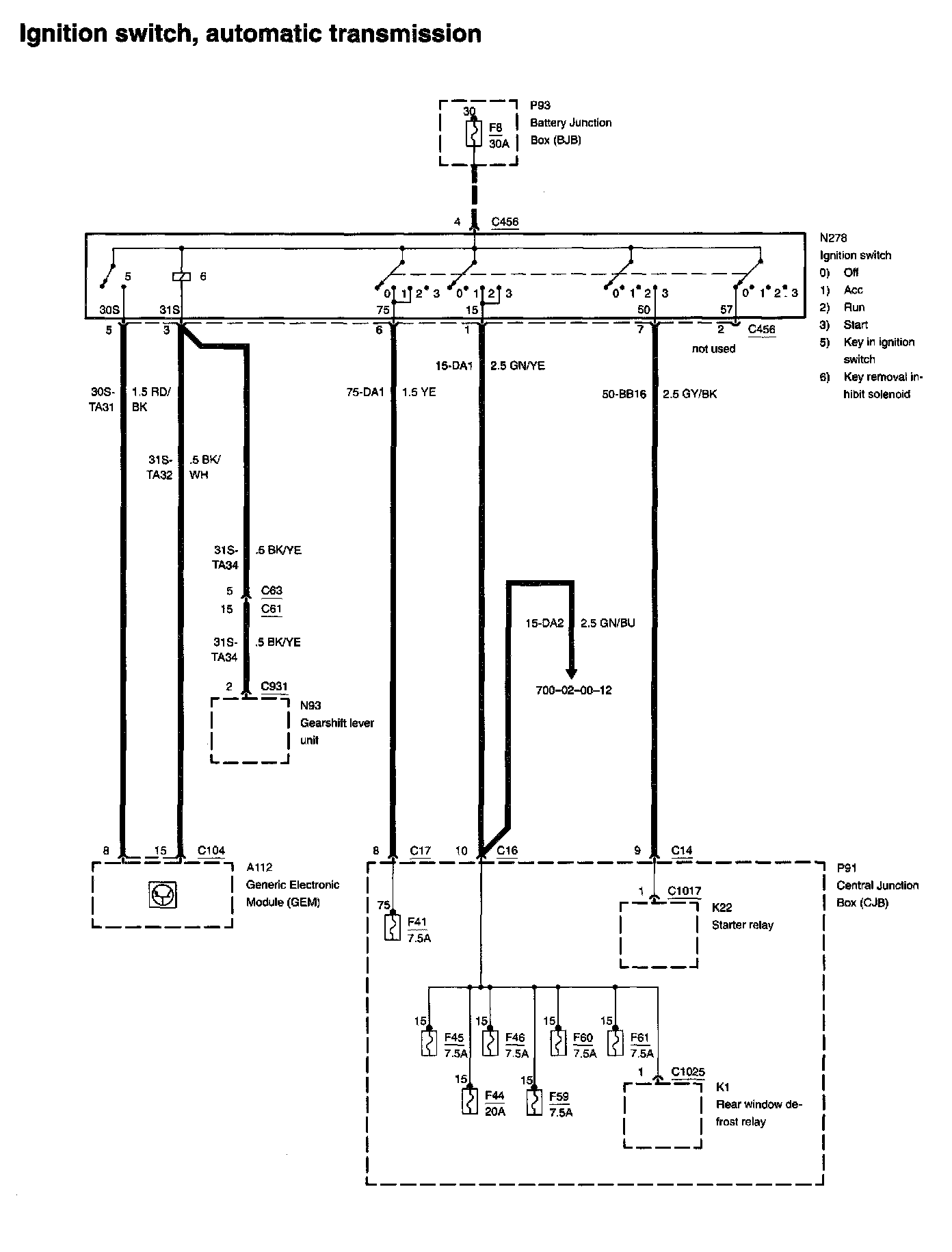

Diagram 413-06-00-1:

Diagram 415-01-00-1:

Diagram 415-01-00-3:

Diagram 417-01-00-3:

Diagram 417-01-00-7:

Diagram 417-01-00-14:

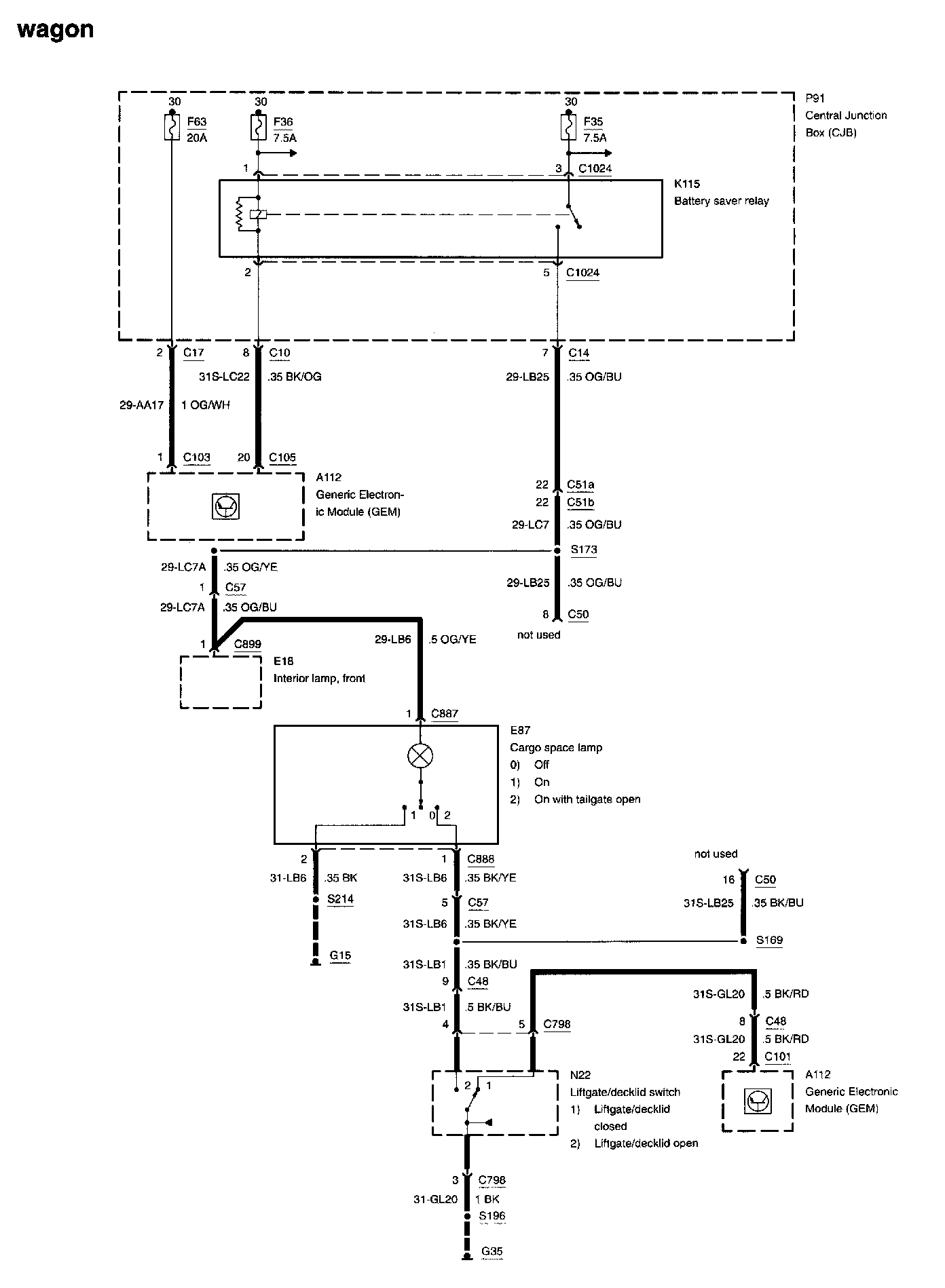

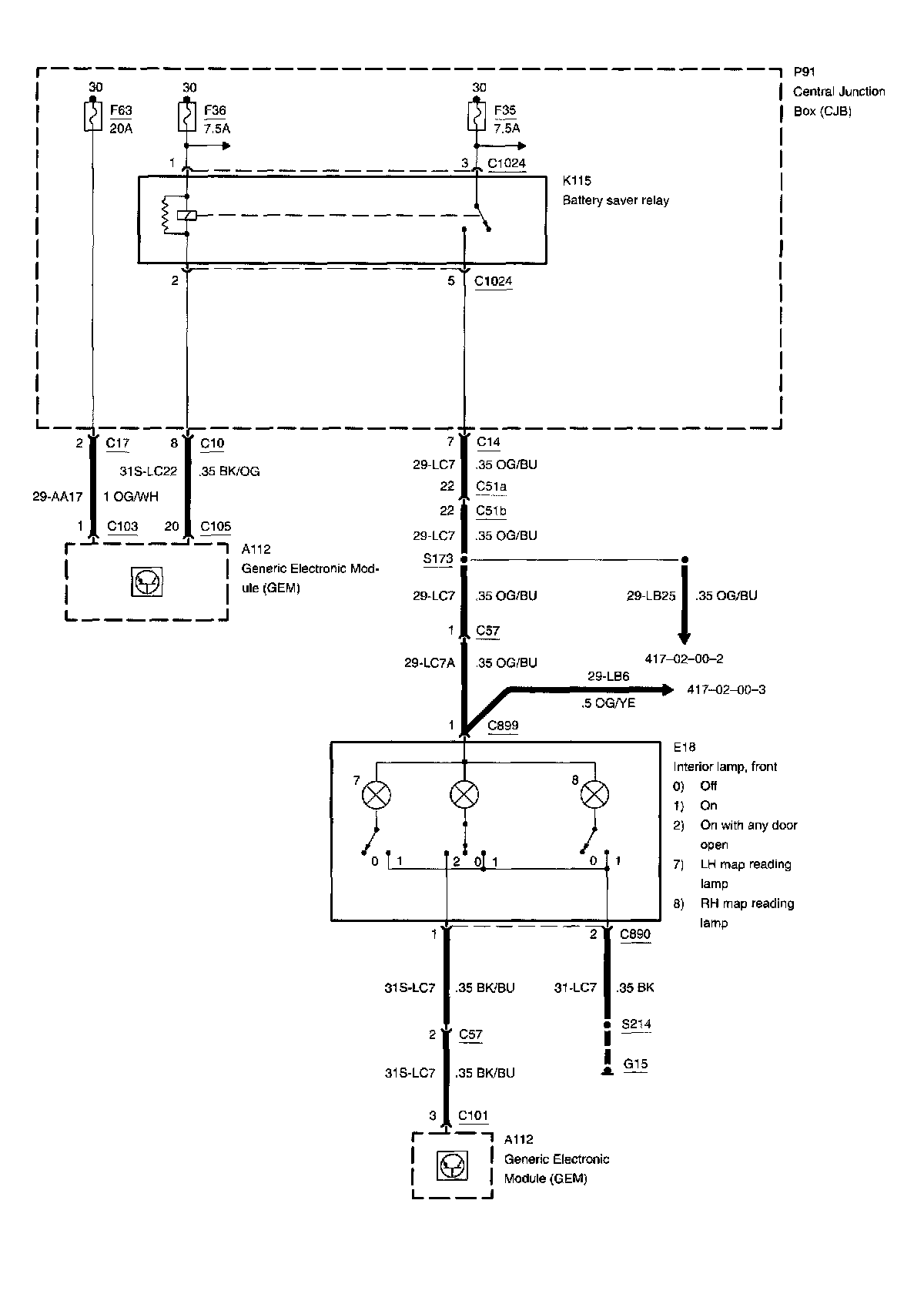

Diagram 417-02-00-1:

Diagram 417-02-00-3:

Diagram 417-02-00-4:

Diagram 418-00-00-1:

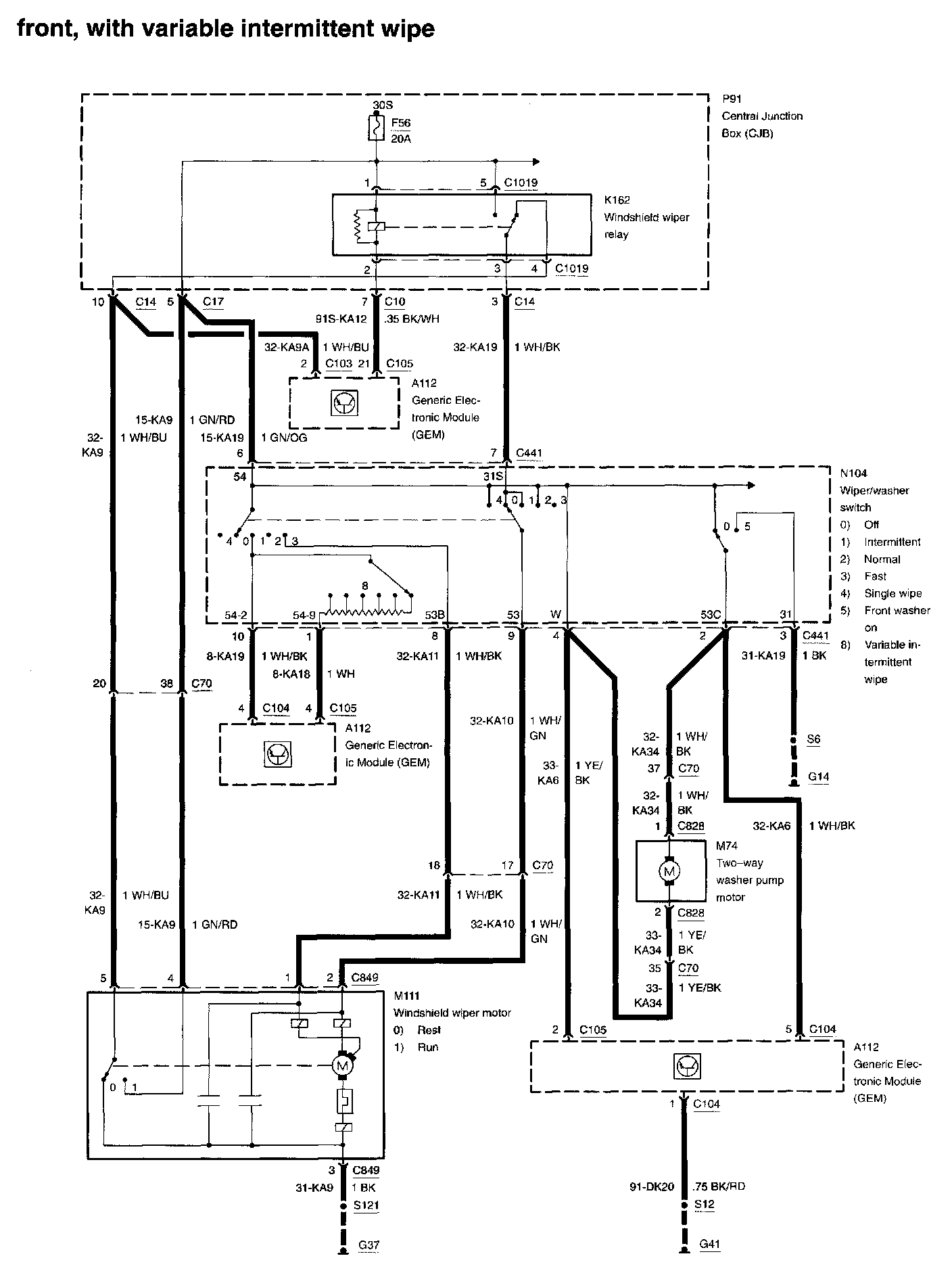

Diagram 501-14a-00-1:

Diagram 501-14a-00-2:

Diagram 501-14a-00-4:

Diagram 501-14a-00-5:

Diagram 501-14a-00-6:

Diagram 501-14a-00-7:

Diagram 501-16-00-1:

Diagram 501-16-00-2:

Diagram 700-02-00-11:
