Pinpoint Test G: The Rear Electronic Module (Rem) Does Not Respond To The Diagnostic Tool
WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

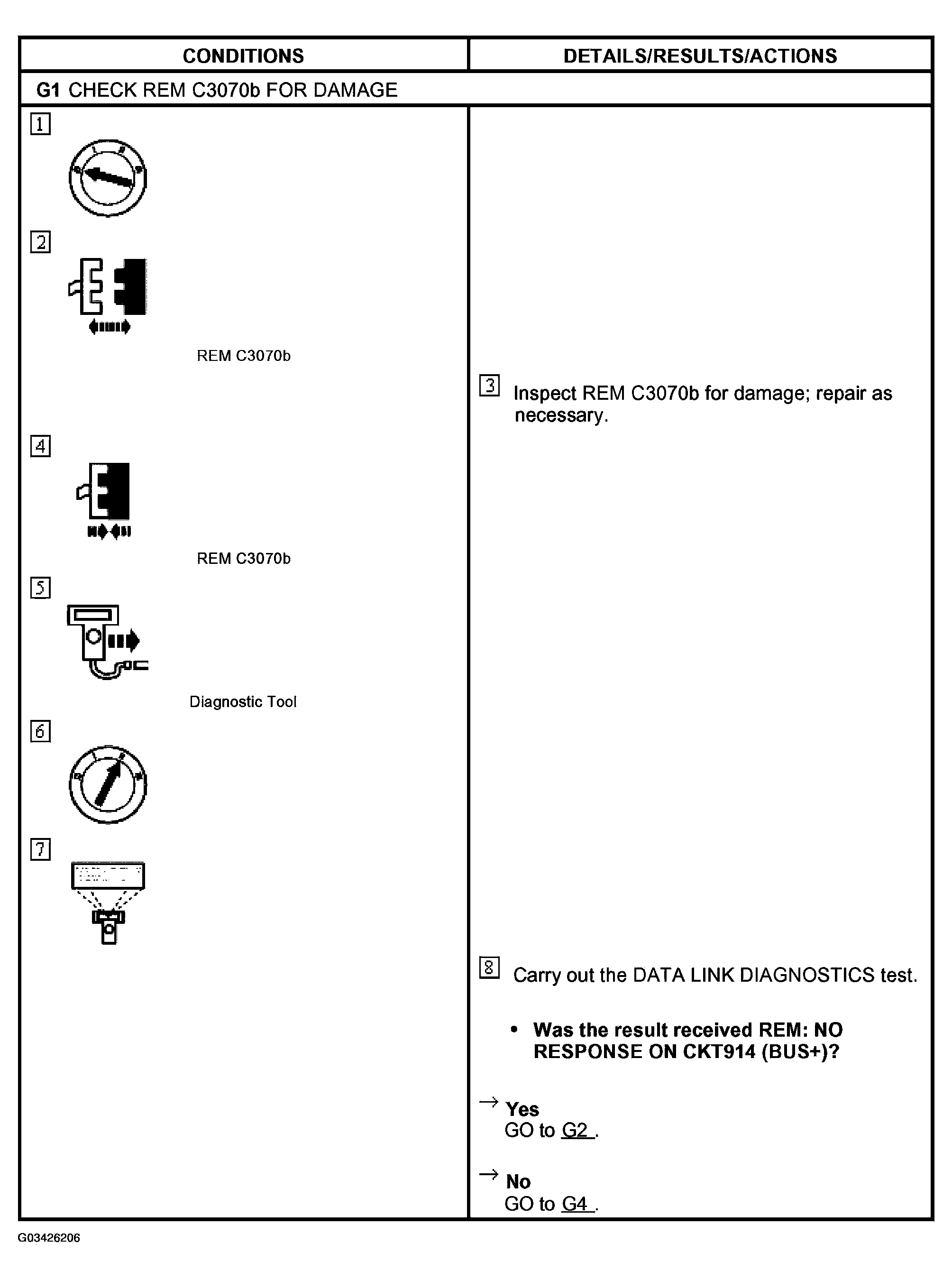

Fig 1: Pinpoint Test G Chart - Rear Electronic Module Does Not Respond To Diagnostic Tool (G1)
Courtesy of FORD MOTOR CO.

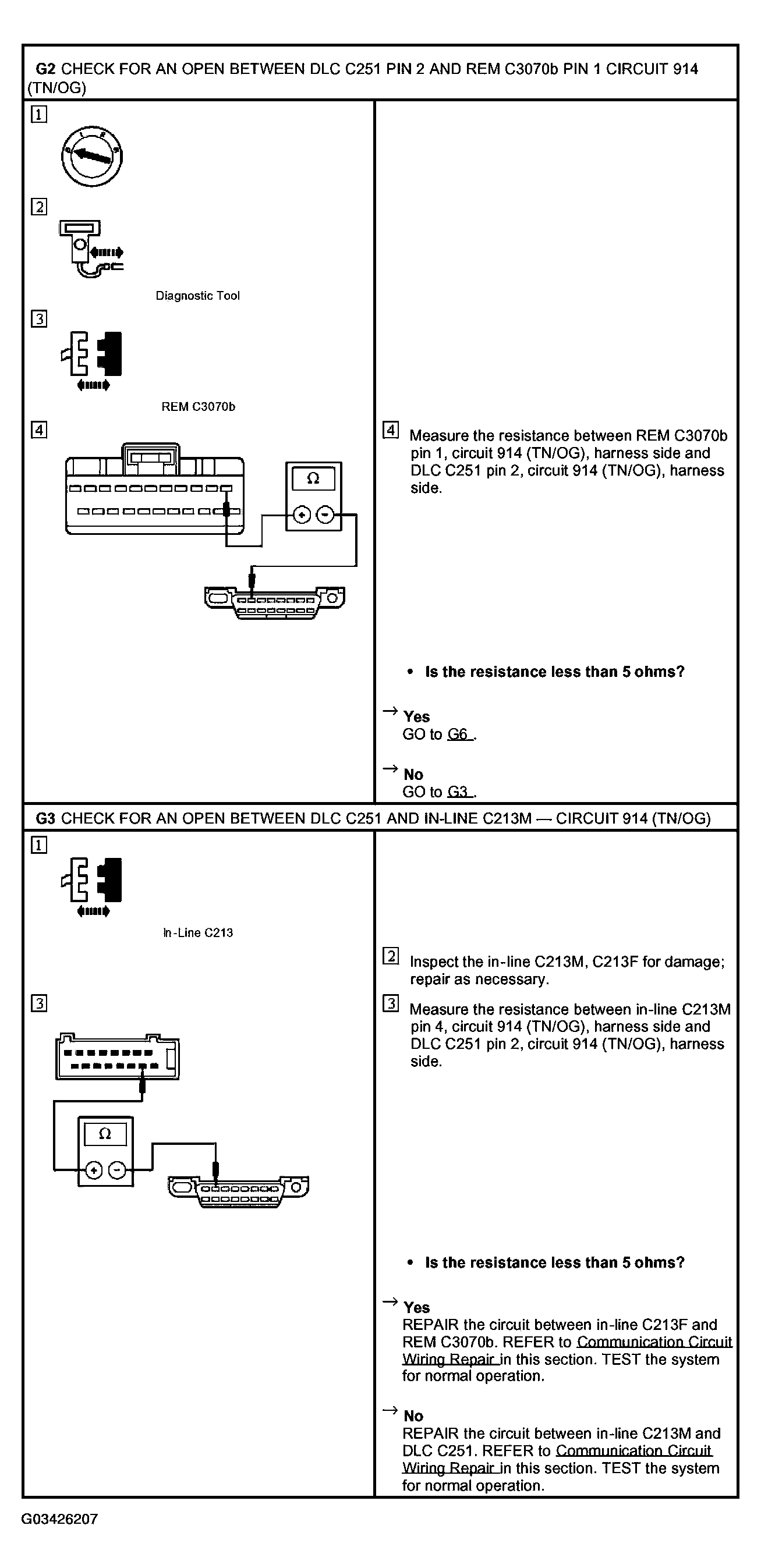

Fig 2: Pinpoint Test G Chart - Rear Electronic Module Does Not Respond To Diagnostic Tool (G2 & G3)
Courtesy of FORD MOTOR CO.

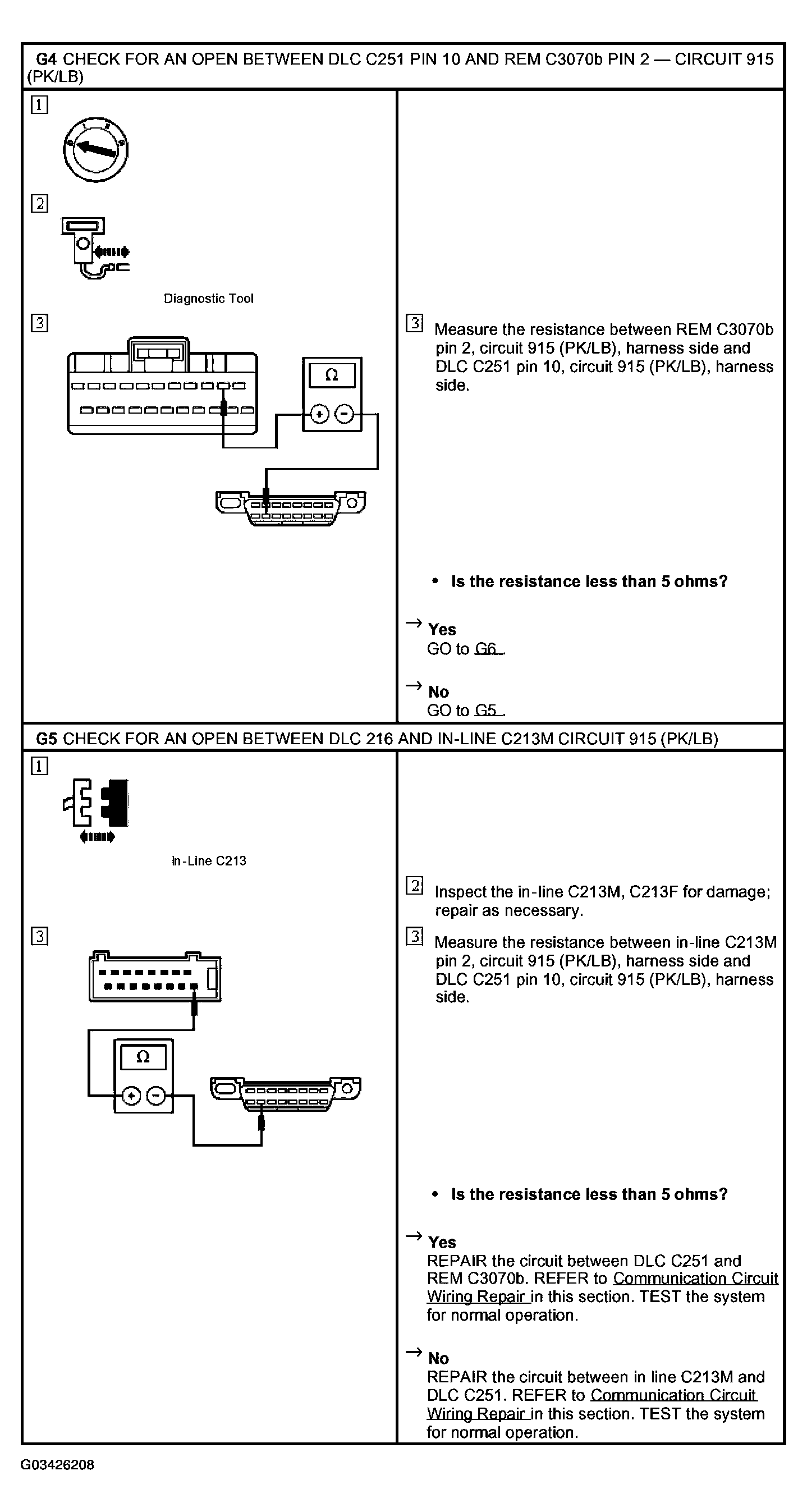

Fig 3: Pinpoint Test G Chart - Rear Electronic Module Does Not Respond To Diagnostic Tool (G4 & G5)
Courtesy of FORD MOTOR CO.

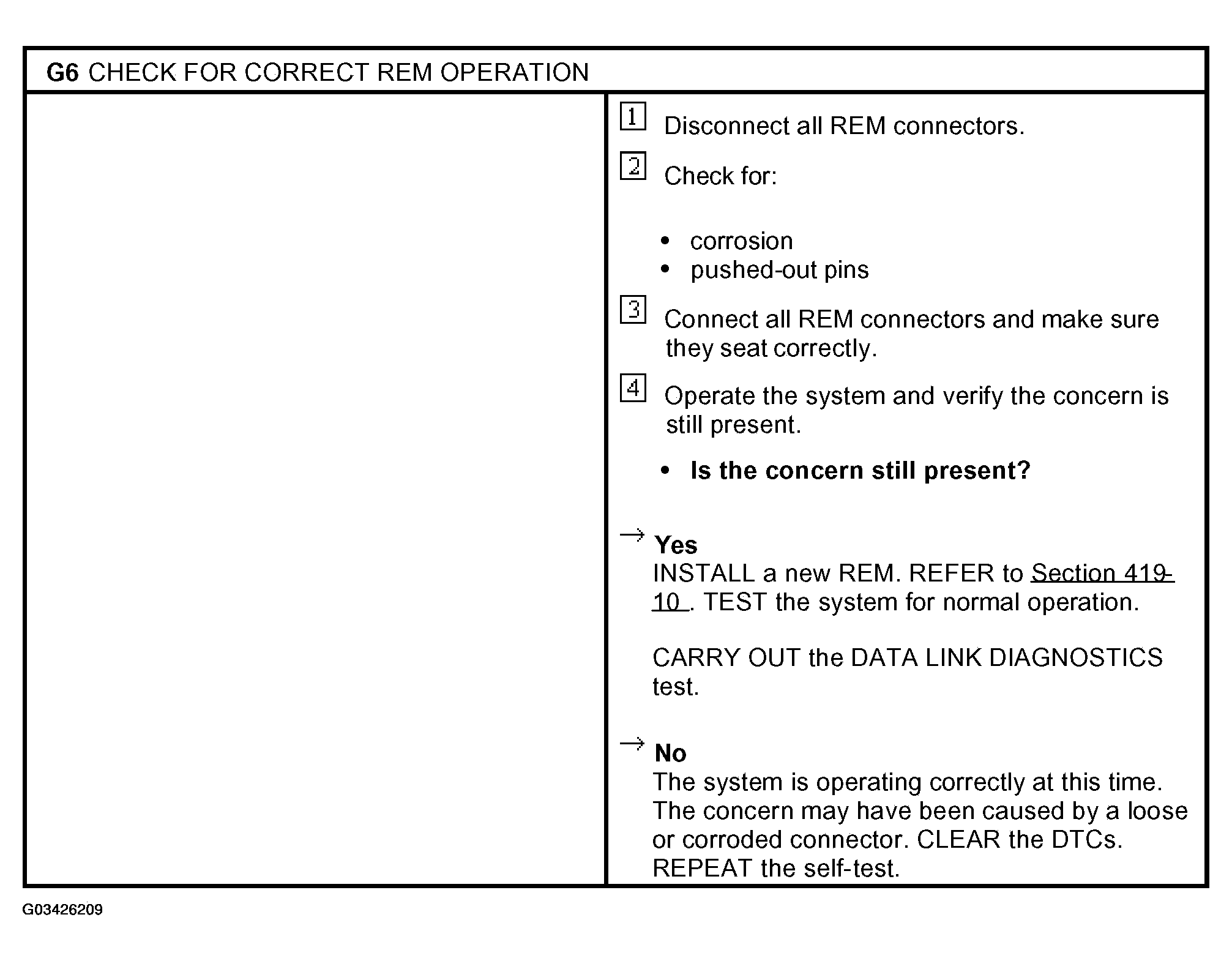

Fig 4: Pinpoint Test G Chart - Rear Electronic Module Does Not Respond To Diagnostic Tool (G6)
