Pinpoint Test H: The Next Generation Speed Control (NGSC) Servo Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

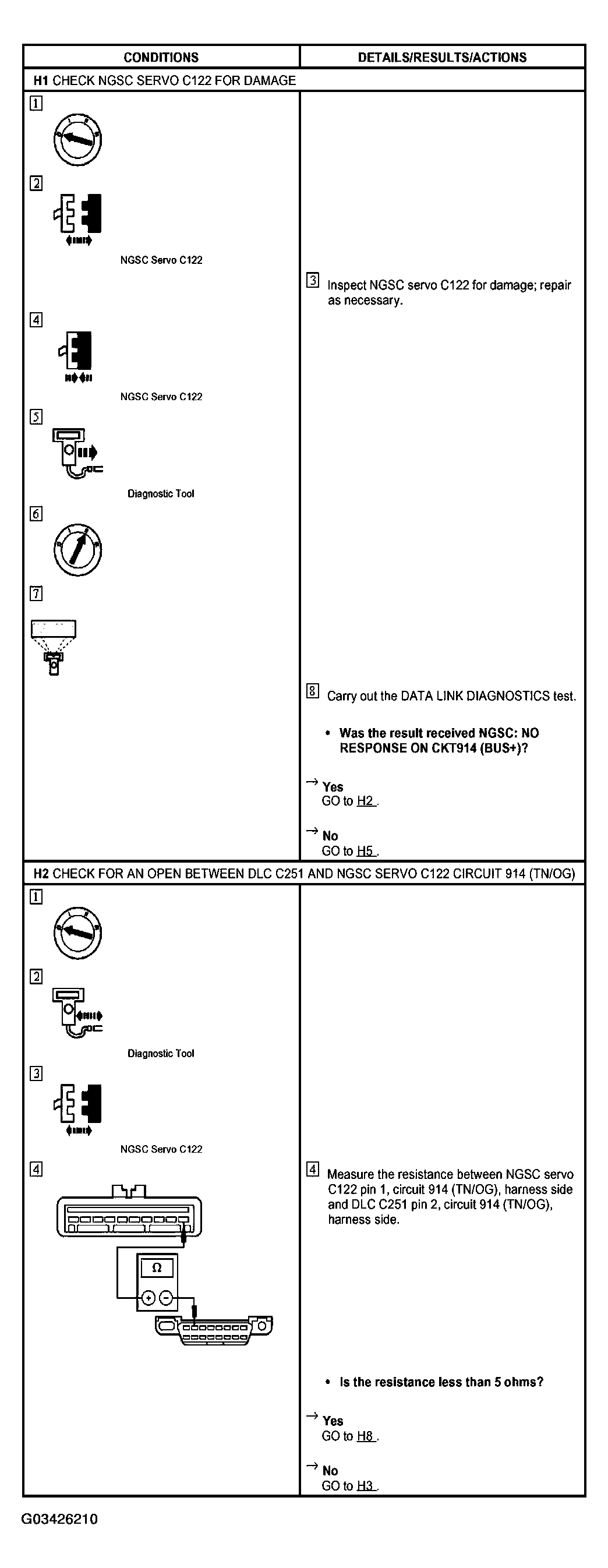

Fig 1: Pinpoint Test H Chart - Next Generation Speed Control Servo Does Not Respond To Diagnostic Tool (H1 & H2)
G03426210Courtesy of FORD MOTOR CO.

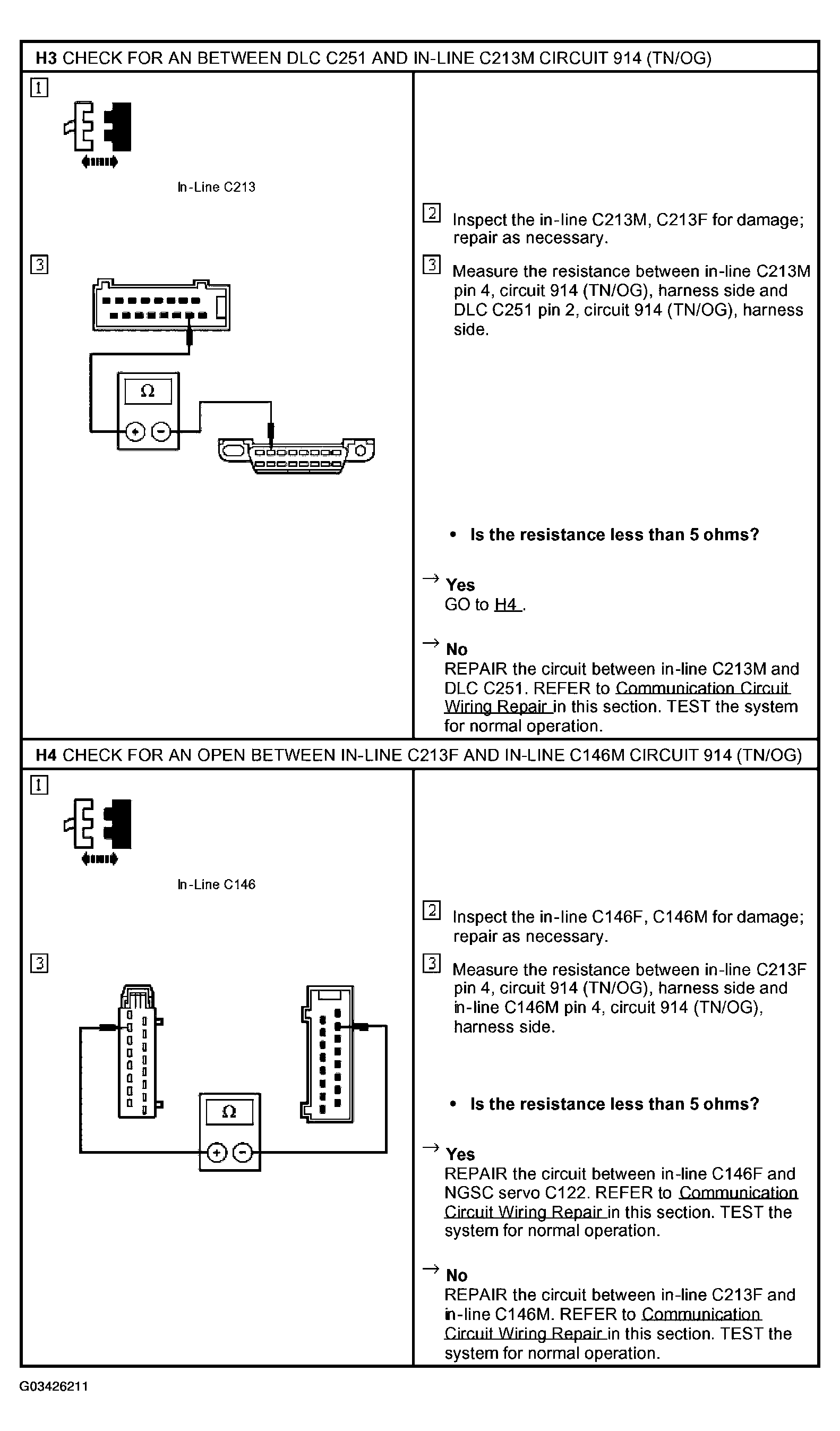

Fig 2: Pinpoint Test H Chart - Next Generation Speed Control Servo Does Not Respond To Diagnostic Tool (H3 & H4)
G03426211Courtesy of FORD MOTOR CO.

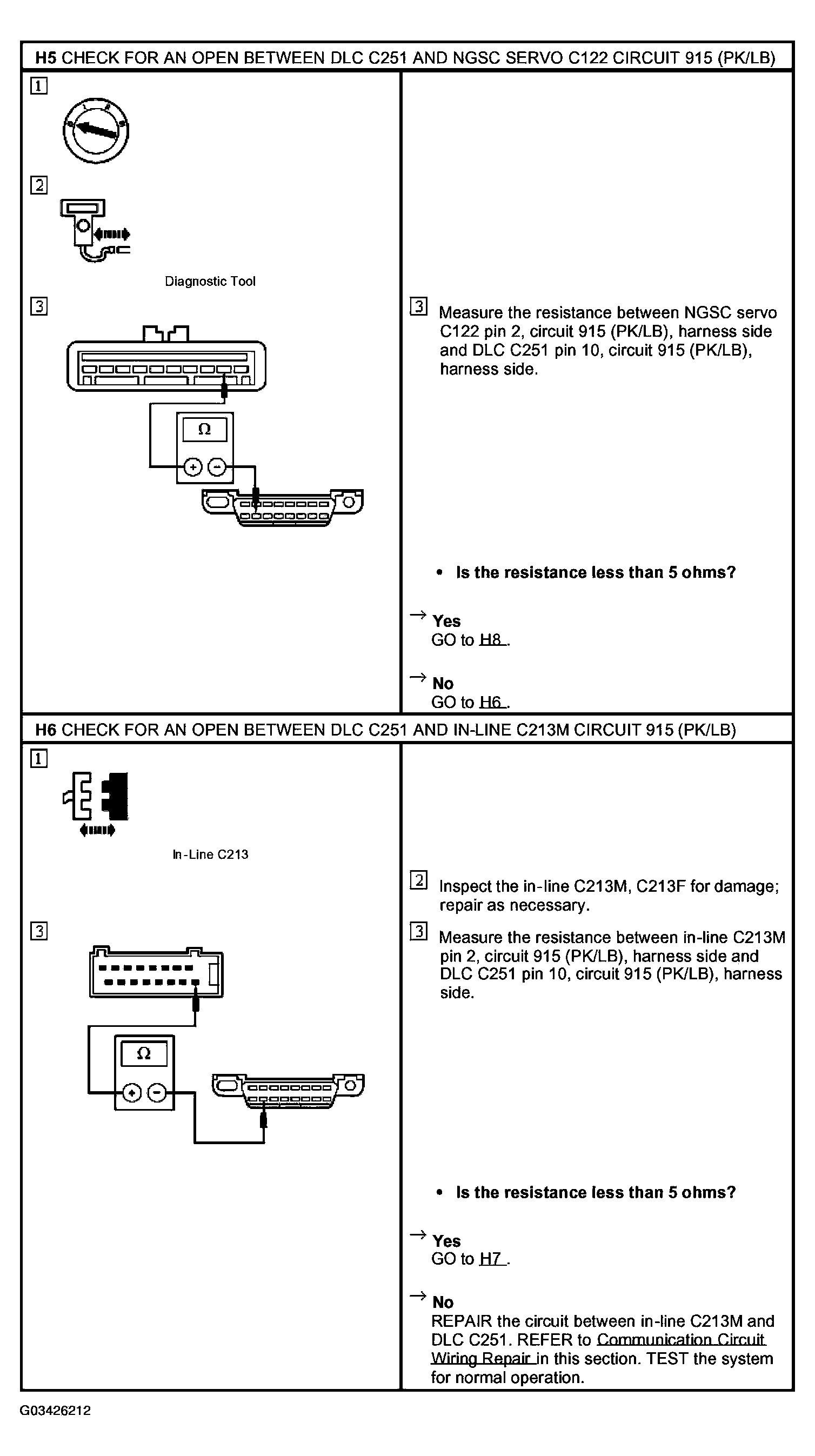

Fig 3: Pinpoint Test H Chart - Next Generation Speed Control Servo Does Not Respond To Diagnostic Tool (H5 & H6)
G03426212Courtesy of FORD MOTOR CO.

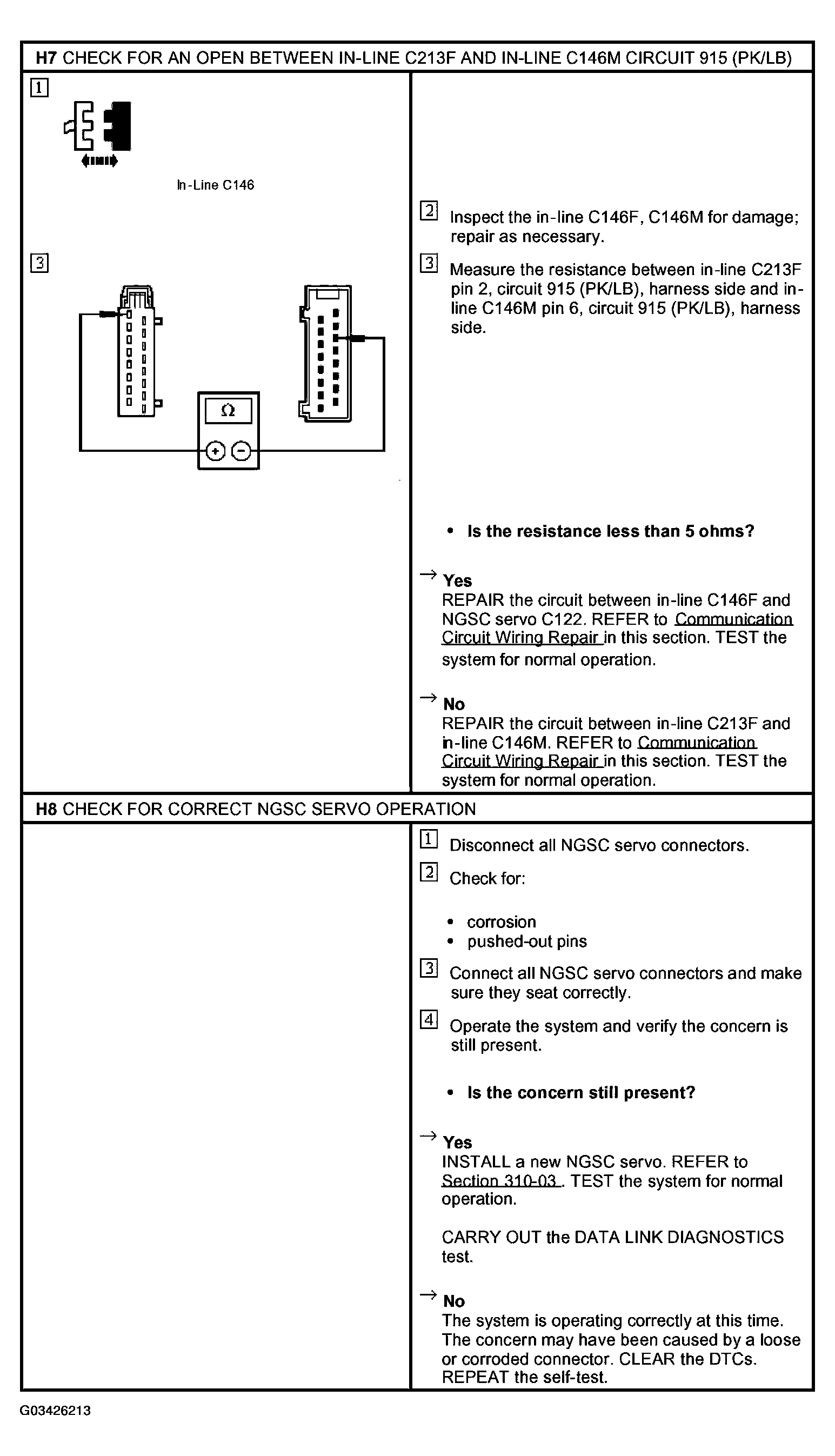

Fig 4: Pinpoint Test H Chart - Next Generation Speed Control Servo Does Not Respond To Diagnostic Tool (H7 & H8)
G03426213Courtesy of FORD MOTOR CO.
