Intermediate One-Way Clutch: Assembly

WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The intermediate one-way clutch must rotate counterclockwise when installed on the reverse clutch drum and will make a ratchet sound.

Install the intermediate one-way clutch.
1. Install the intermediate one-way clutch.
2. Install the snap ring.

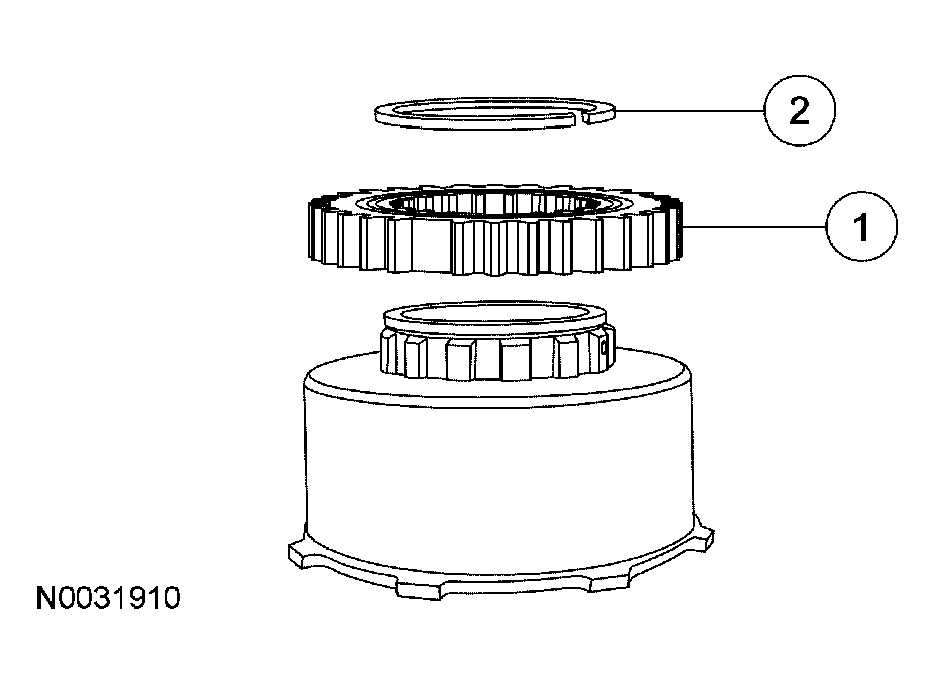

  Fig 1: Installing Intermediate One-Way Clutch
  Courtesy of FORD MOTOR CO.
