Line Pressure Chart

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

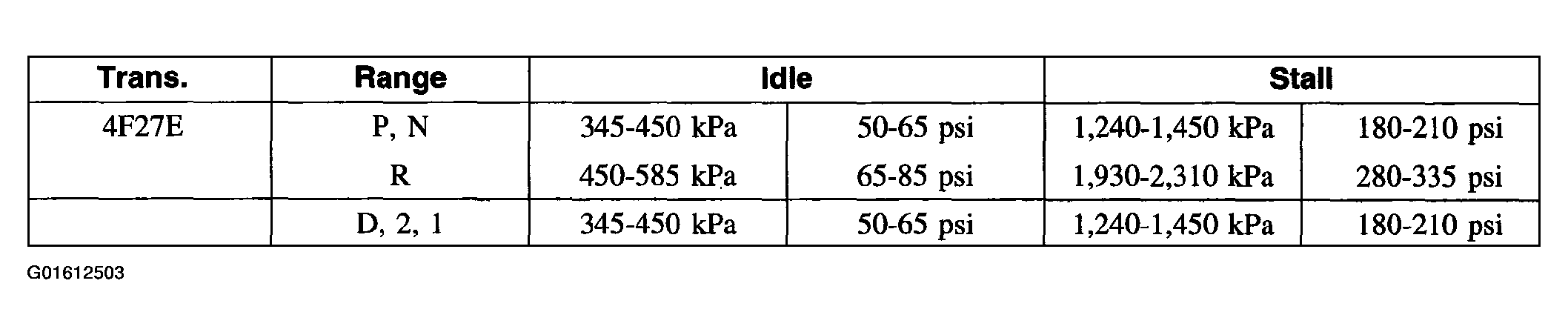

Fig 1: Line Pressure Chart
G01612503Courtesy of FORD MOTOR CO.
