Pinpoint Test C: The Air Conditioning Does Not Operate In Air Distribution Control Switch Position Defrost

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

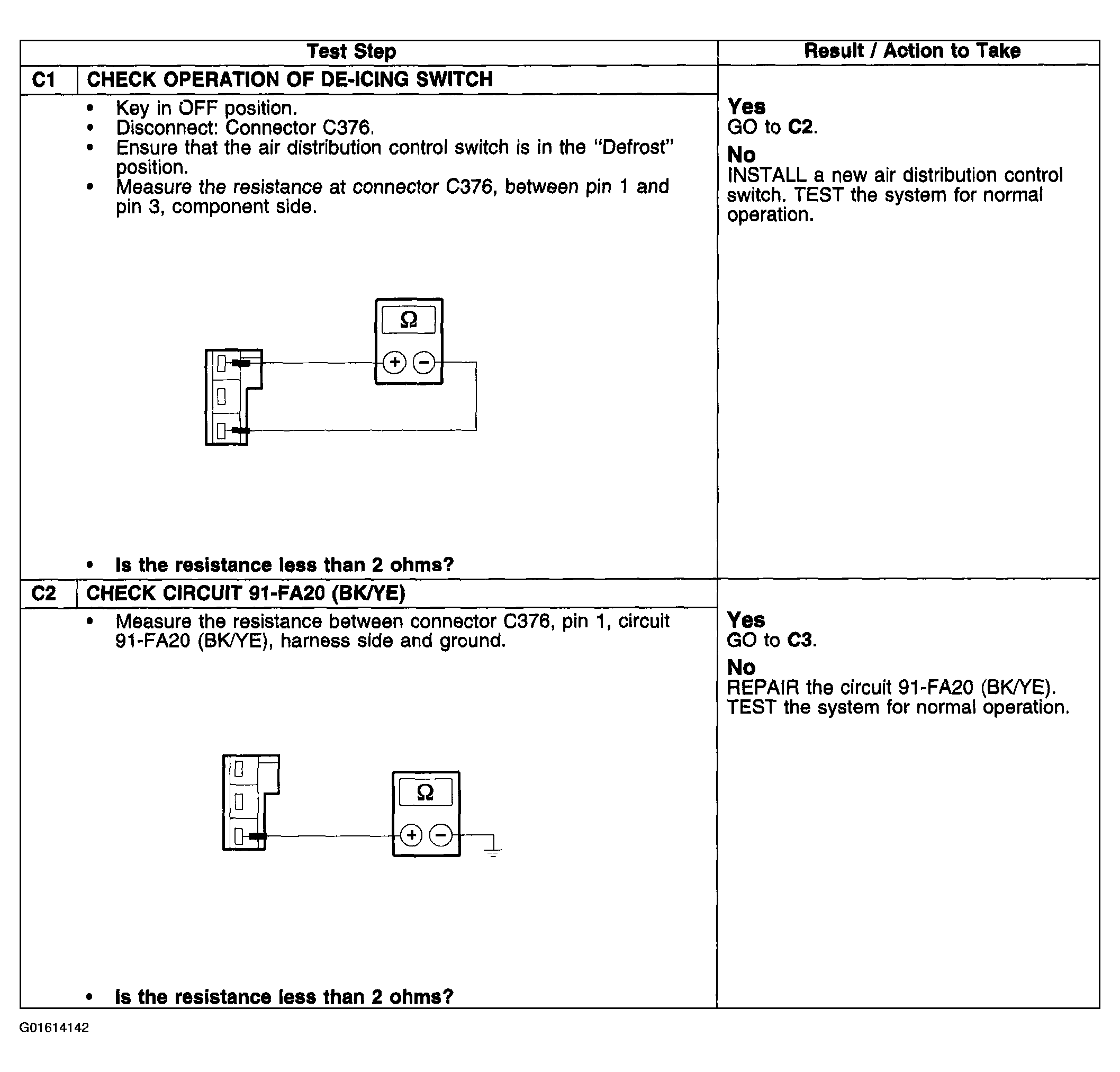

Fig 1: Pinpoint Test C: Air Conditioning Does Not Operate In Air Distribution Control Switch Position Defrost (C1-C2)

Courtesy of FORD MOTOR CO.

Fig 2: Pinpoint Test C: Air Conditioning Does Not Operate In Air Distribution Control Switch Position Defrost (C3)

Courtesy of FORD MOTOR CO.
