Pinpoint Test A: No Communication With The Module - Front Electronic Module (Fem)
WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Pinpoint Test A: No Communication With Module - Front Electronic Module (A1)
Courtesy of FORD MOTOR CO.

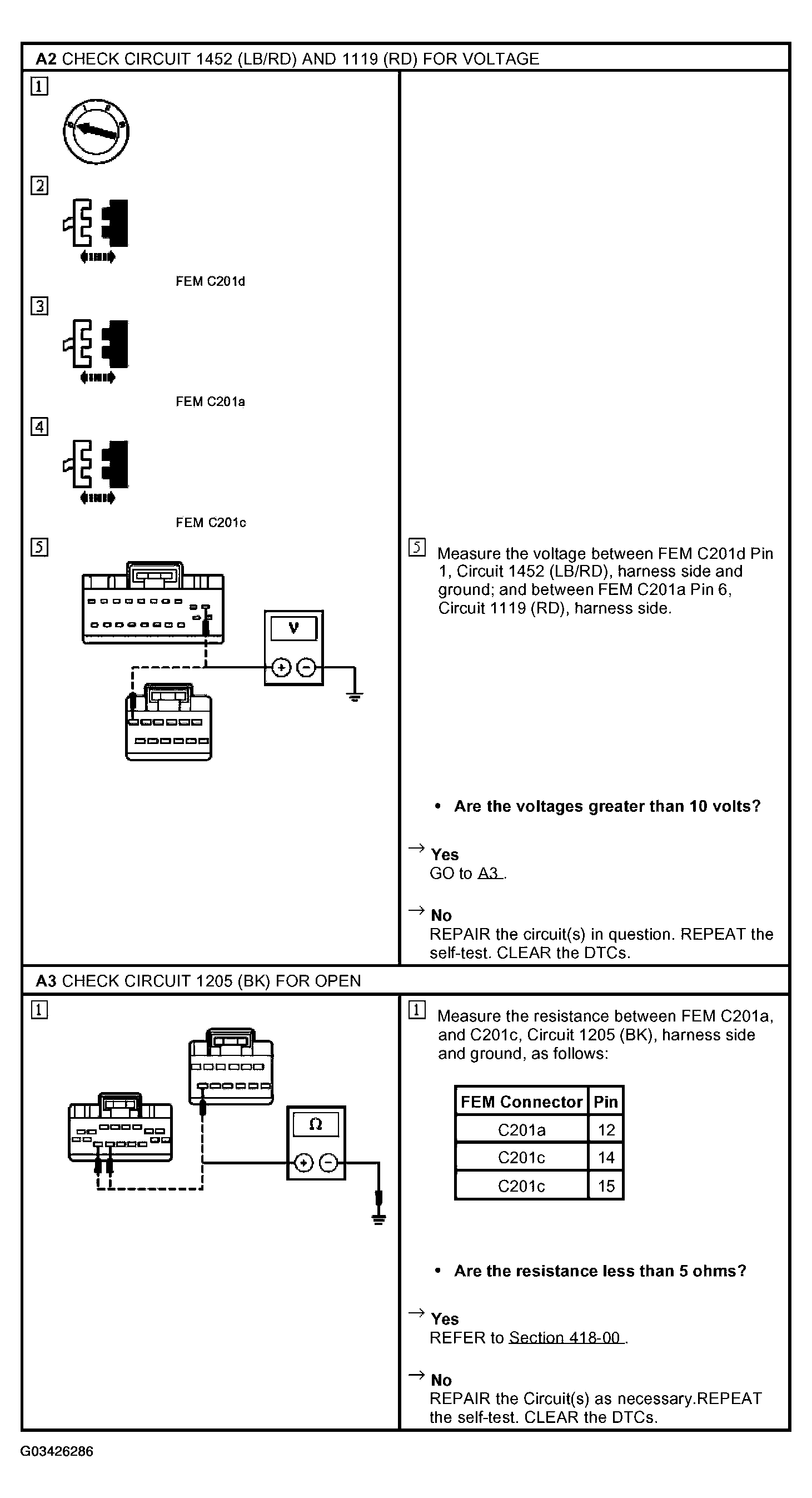

Fig 2: Pinpoint Test A: No Communication With Module - Front Electronic Module (A2 & A3)
