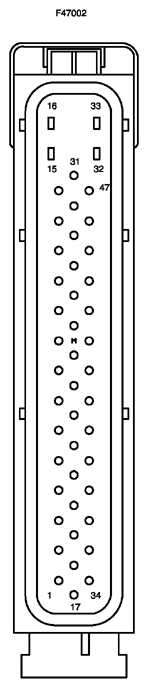

| 1 |
7-CF32 (YE) |
Voltage D.C. supplied at all times (sensor) |
| 2 |
8-CF32 (WH) |
Sensor signal |
| 3 |
- |
not used |
| 4 |
8-CF34 (WH/BU) |
Sensor signal |
| 5 |
7-CF34 (YE/BU) |
Voltage D.C. supplied at all times (sensor) |
| 6 |
49S-CF68 (BU/RD) |
Pulsed power feed (overload protected), switched |
| 7 |
49S-CF6 (BU) |
Pulsed power feed (overload protected), switched |
| 8 |
15S-CF68 (GN/BU) |
Voltage, ignition switch in Start or Run (not overload protected), switched |
| 9 |
91S-CF54 (BK/WH) |
Ground, switched |
| 10 |
7-CF64 (YE/BK) |
Voltage D.C. supplied at all times (sensor) |
| 11 |
9-CF67 (BN/RD) |
Sensor signal return (reference/ground) |
| 12 |
7-CF65 (YE/VT) |
Voltage D.C. supplied at all times (sensor) |
| 13 |
9-CF66 (BN/BU) |
Sensor signal return (reference/ground) |
| 14 |
- |
not used |
| 15 |
91-CF6 (BK/YE) |
Ground |
| 16 |
30-CF6A (RD) |
Voltage supplied at all times (not overload protected) |
| 17 |
8-EE6A (WH) |
Sensor signal |
| 18 |
4-EG6 (GY) |
Data link, bus positive |
| 19 |
5-EG6 (BU) |
Data link, bus negative |
| 20 |
31S-CF71 (BK/BU) |
Ground, switched |
| 21 |
15S-CF58 (GN/OG) |
Voltage, ignition switch in Start or Run (not overload protected), switched |
| 22 |
15-CF6A (GN/YE) |
Voltage, ignition switch in Start or Run (not overload protected) |
