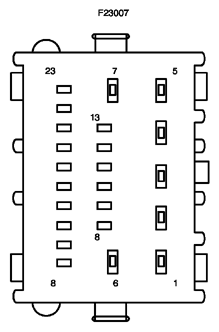

| 1 |
32-AA59B (WH/BK) |
Switched between: Battery voltage, Ground or Open |
| 32-AA59A (WH/BK) |
Switched between: Battery voltage, Ground or Open |
| 2 |
33-KA6 (YE/BK) |
Switched between: Battery voltage, Ground or Open |
| 3 |
32-KA35 (WH/RD) |
Switched between: Battery voltage, Ground or Open |
| 4 |
8-KA18 (WH) |
Sensor signal |
| 5 |
32-AA59A (WH/BK) |
Switched between: Battery voltage, Ground or Open |
| 32-AA59B (WH/BK) |
Switched between: Battery voltage, Ground or Open |
| 6 |
- |
not used |
| 7 |
- |
not used |
| 8 |
- |
not used |
| 9 |
- |
not used |
| 10 |
- |
not used |
| 11 |
- |
not used |
| 12 |
- |
not used |
| 13 |
- |
not used |
| 14 |
- |
not used |
| 15 |
31S-HB20 (BK/GN) |
Ground, switched |
| 16 |
31S-AA30 (BK/YE) |
Ground, switched |
| 17 |
91S-KA29 (BK/YE) |
Ground, switched |
| 18 |
31S-GE49 (BK/BU) |
Ground, switched |
| 19 |
31S-AA7 (BK/BU) |
Ground, switched |
| 20 |
31S-LC22 (BK/OG) |
Ground, switched |
| 21 |
91S-KA12 (BK/WH) |
Ground, switched |
| 91S-KA12 (BK/WH) |
Ground, switched |
| 22 |
29S-LG43 (OG/WH) |
Battery voltage, hot at all times (not fused and primary fused), switched |
| 23 |
91-AA17 (BK/WH) |
Antenna |
