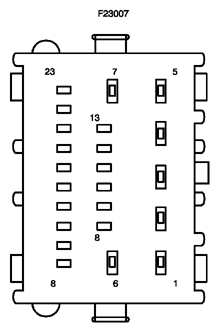

| 1 |
29-AA17 (OG/WH) |
Voltage supplied at all times (overload protected) |
| 2 |
32-KA9A (WH/BU) |
Switched between: Battery voltage, Ground or Open |
| 3 |
49S-LG18 (BU) |
Pulsed power feed (overload protected), switched |
| |
49S-LG20 (BU/WH) |
Pulsed power feed (overload protected), switched |
| 4 |
49S-LG3 (BU) |
Pulsed power feed (overload protected), switched |
| 5 |
29-DK20 (OG/GN) |
Voltage supplied at all times (overload protected) |
| 6 |
- |
not used |
| 7 |
- |
not used |
| 8 |
- |
not used |
| 9 |
- |
not used |
| 10 |
- |
not used |
| 11 |
- |
not used |
| 12 |
- |
not used |
| 13 |
- |
not used |
| 14 |
- |
not used |
| 15 |
- |
not used |
| 16 |
- |
not used |
| 17 |
- |
not used |
| 18 |
- |
not used |
| 19 |
- |
not used |
| 20 |
- |
not used |
| 21 |
31S-GL7 (BK/YE) |
Ground, switched |
| 22 |
- |
not used |
| 23 |
31S-HB7A (BK/BU) |
Ground, switched |
