Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly/Is Blocked

WARNING: This page is about a different car, the 2003 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

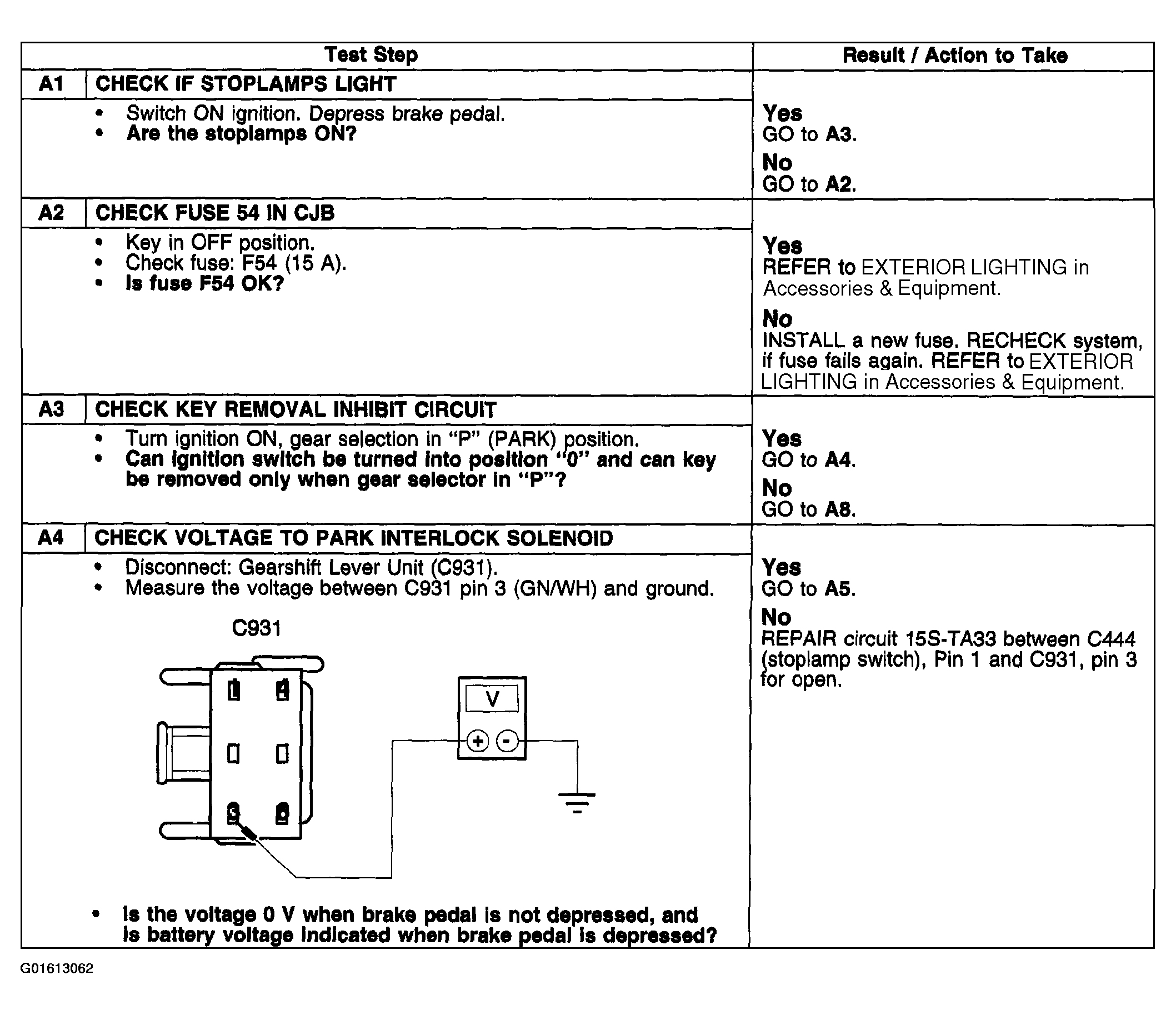

Fig 1: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly/Is Blocked (A1-A4)

Courtesy of FORD MOTOR CO.

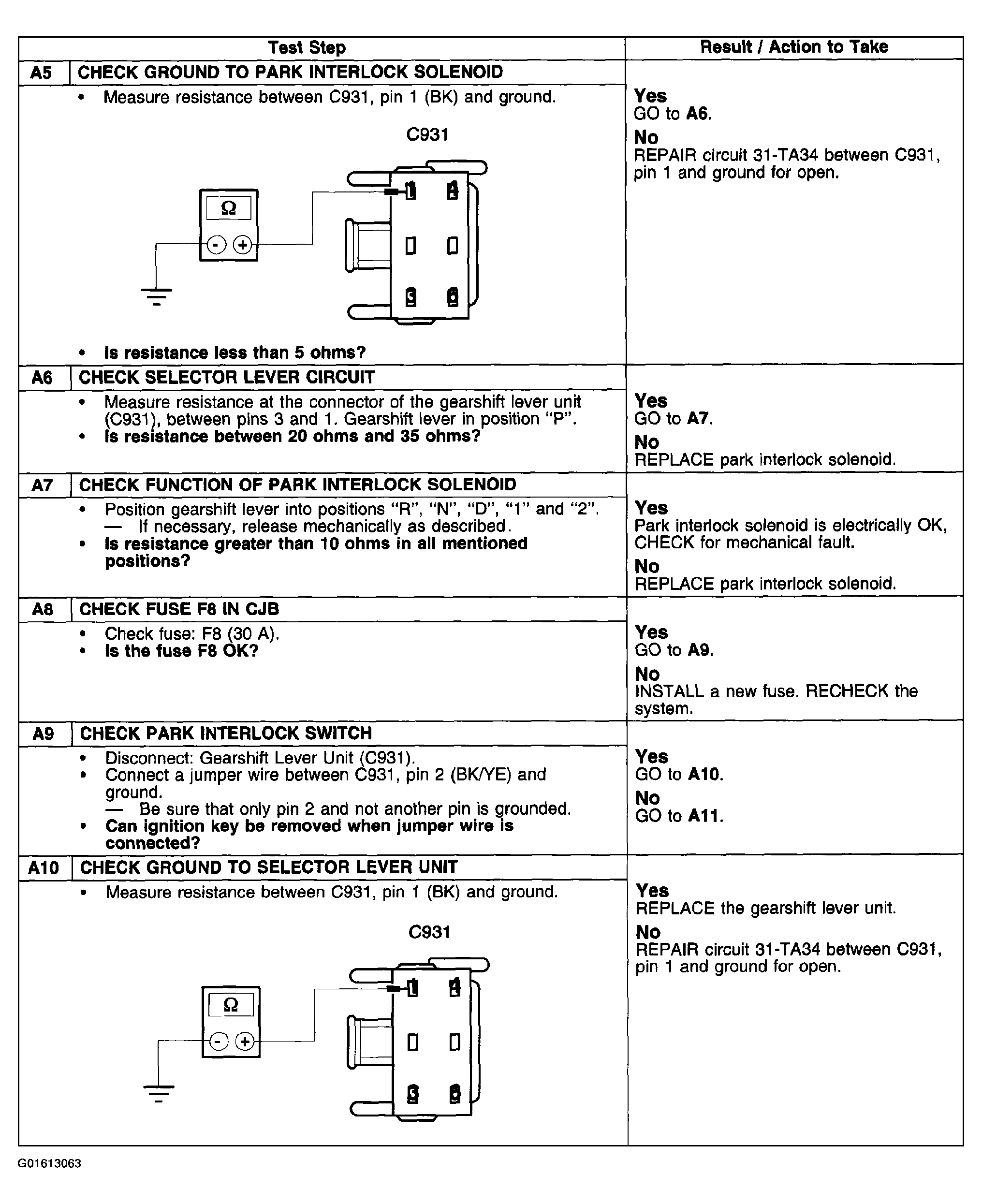

Fig 2: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly/Is Blocked (A5-A10)

Courtesy of FORD MOTOR CO.

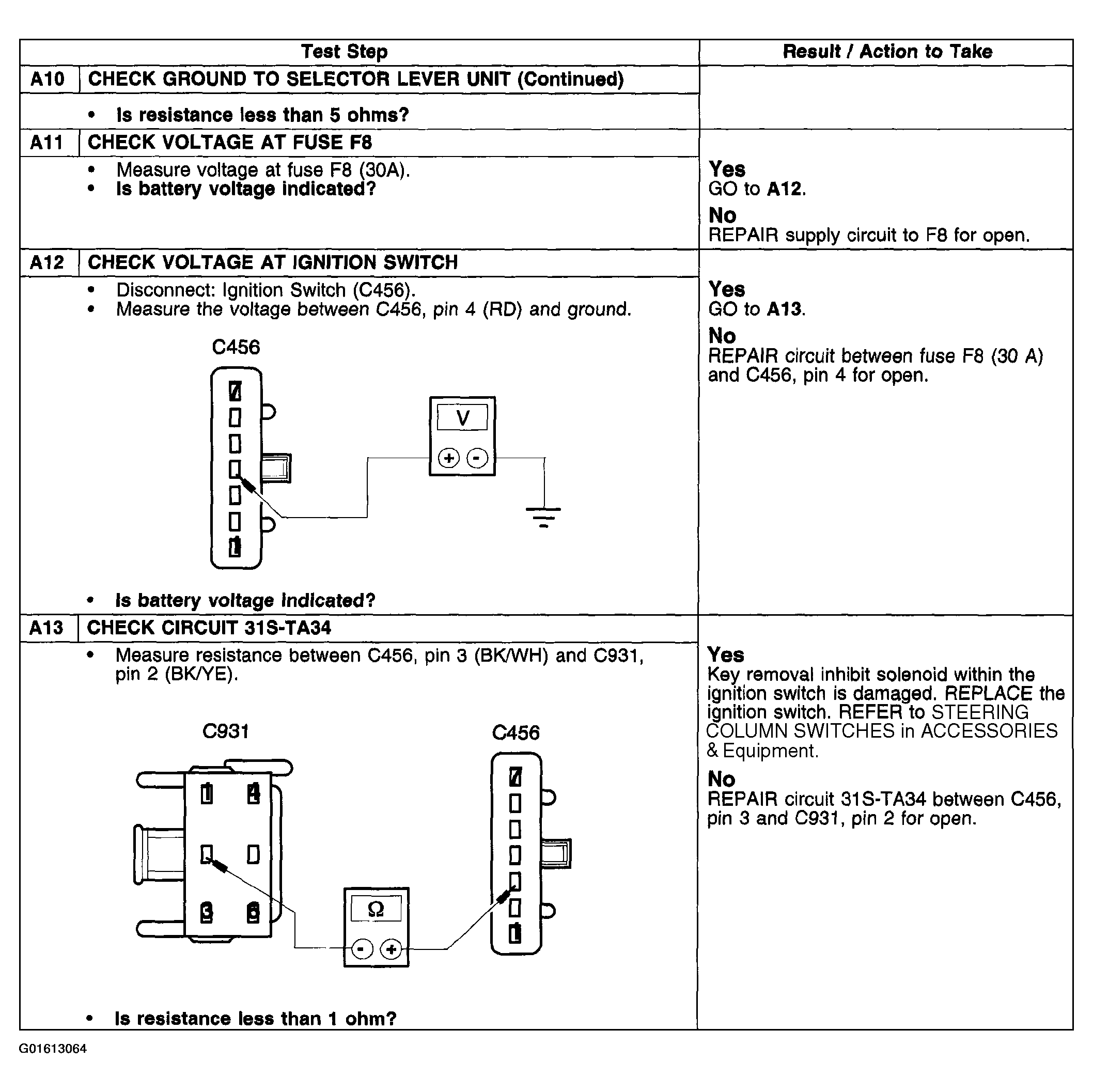

Fig 3: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly/Is Blocked (A10-A13)

Courtesy of FORD MOTOR CO.
