Component Locations

COMPONENT LOCATIONS

Component	Location
Central Junction Box	Behind Left Side Of Instrument Panel, Next to Generic Electronic Module
Generic Electronic Module	Behind Left Side Of Instrument Panel, Next To Central Junction Box
Outside Rearview Mirror	On Driver Door & Passenger Door
Outside Rearview Mirror Motor	Inside Each Mirror Assembly
Power Mirror Control Switch	On Driver Door Panel

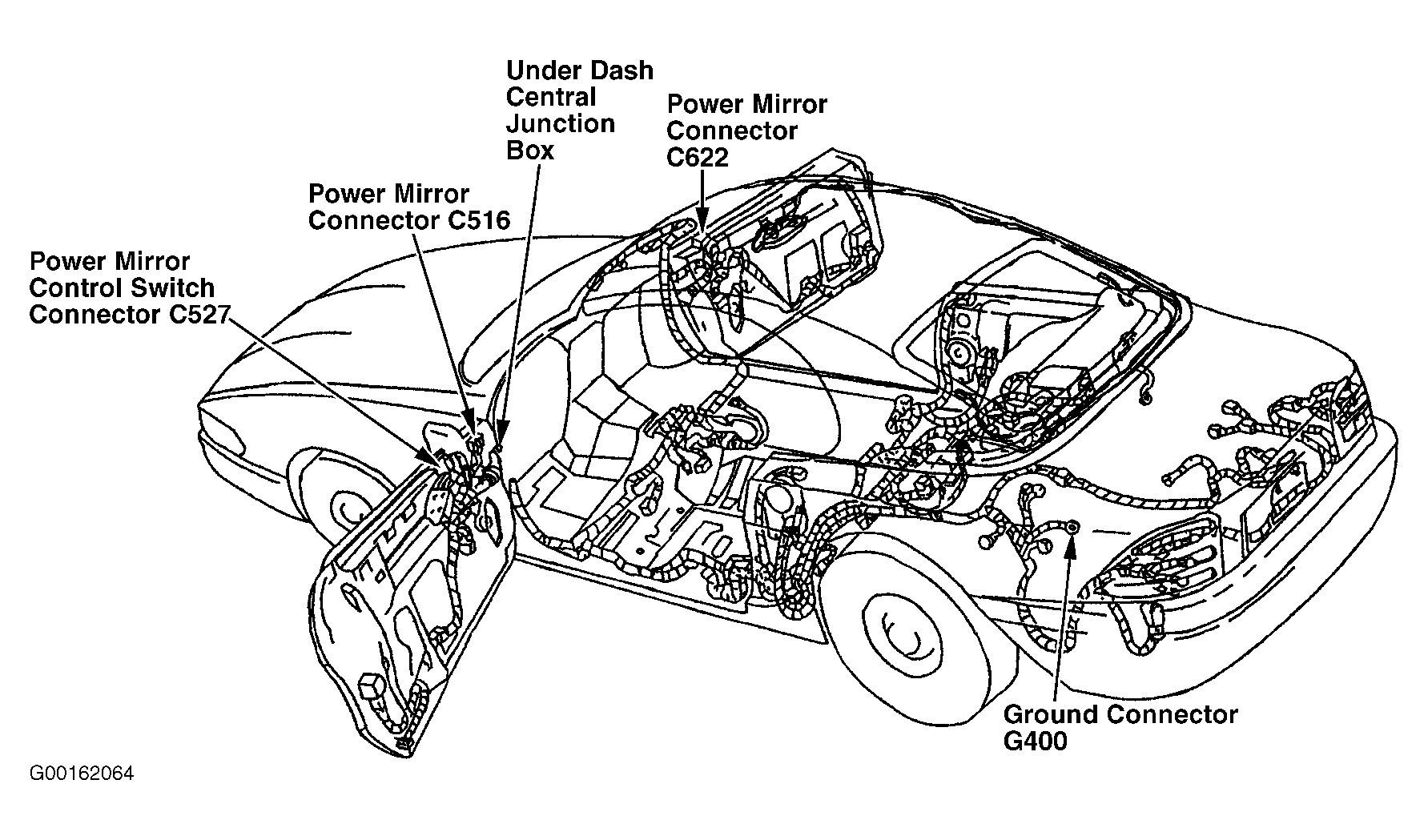

Fig 1: Locating Power Mirrors System Components & Connectors

Courtesy of FORD MOTOR CO.

Fig 2: Identifying Central Junction Box Fuses

Courtesy of FORD MOTOR CO.
