Disassembly And Assembly: Gear: Assembly
- Install the steering gear in the special tools.
Steering Gears Equipped With Travel Restrictors
- Install the travel restrictors.
- Install new travel restrictors as necessary.
All Steering Gears

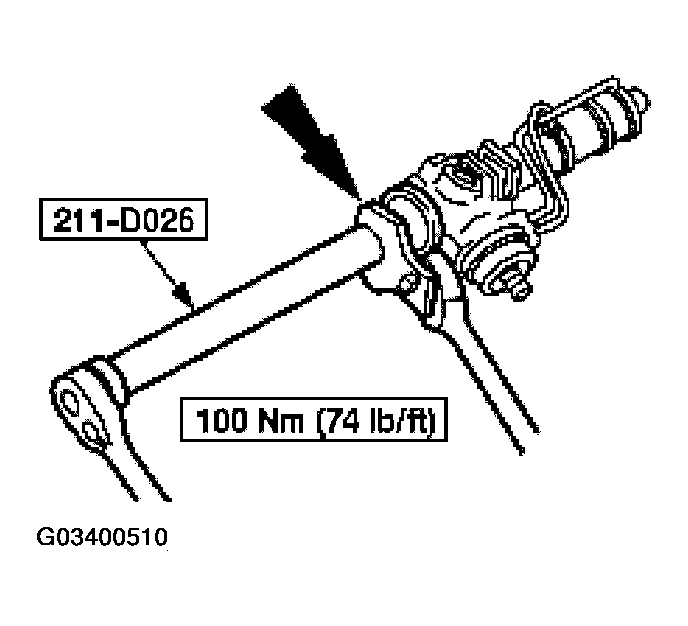

- Place the steering gear at the center position. Install a crowfoot on the flat of the steering gear. Using the special tool install the front wheel spindle tie-rods.
- Thoroughly clean the steering gear of any foreign material.
- Install the front suspension steering ball stud dust seals and clamps.

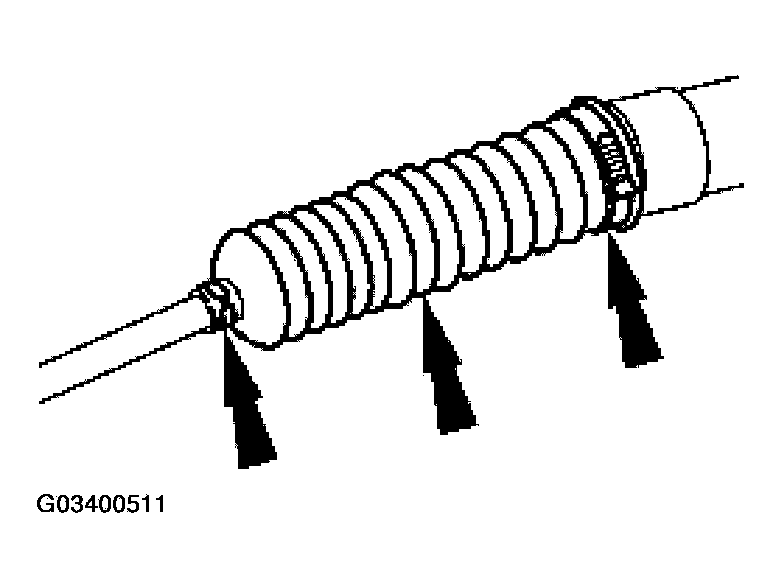

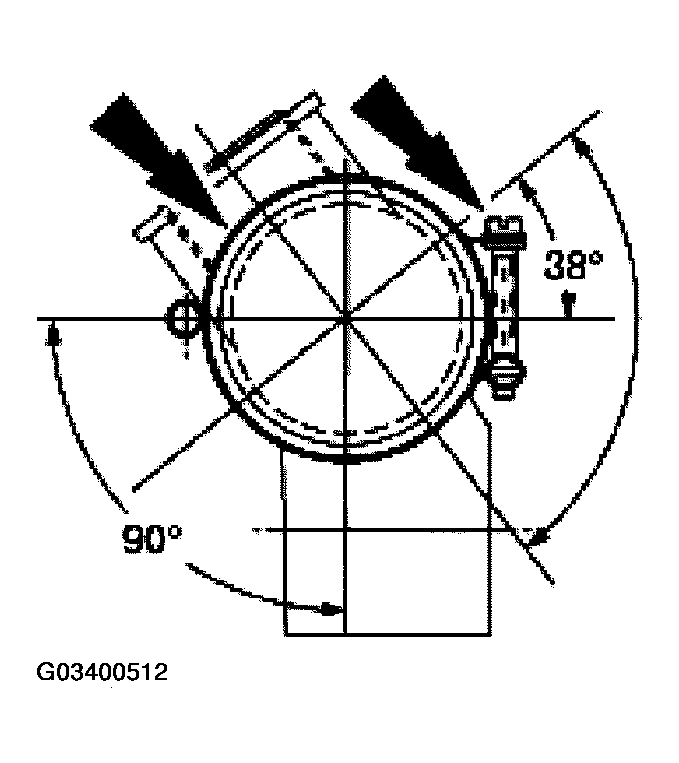

- Position the front suspension steering ball stud seals and steering gear rack tubes as shown in Fig 2 .
- Install new front suspension steering ball stud dust seals and clamps as necessary.
- To prevent the front suspension steering ball stud dust seals from twisting during toe adjustment, apply grease to the groove in the front wheel spindle tie-rods and uniformly to the inner-diameter of the front suspension steering ball stud dust seals.

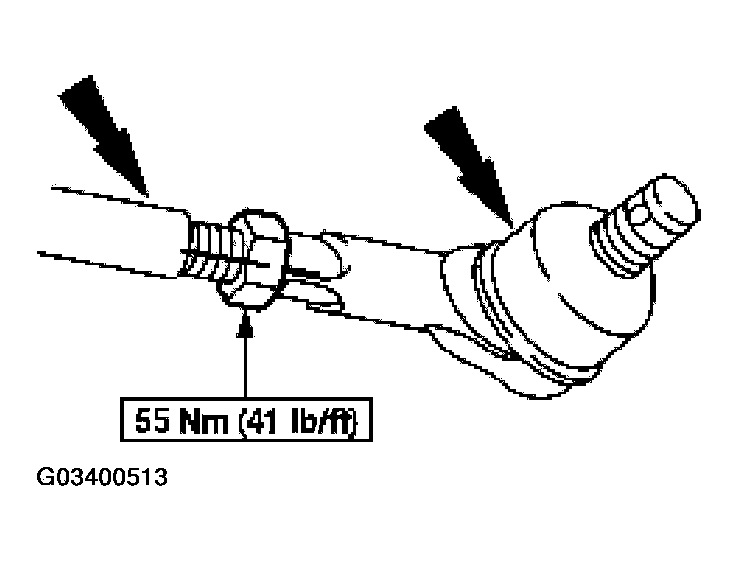

- Install the nut and the tie-rods ends. Align the marks.
- Apply silicone dielectric compound to the front wheel spindle tie-rod threads.
- Remove the steering gear from the special tools.

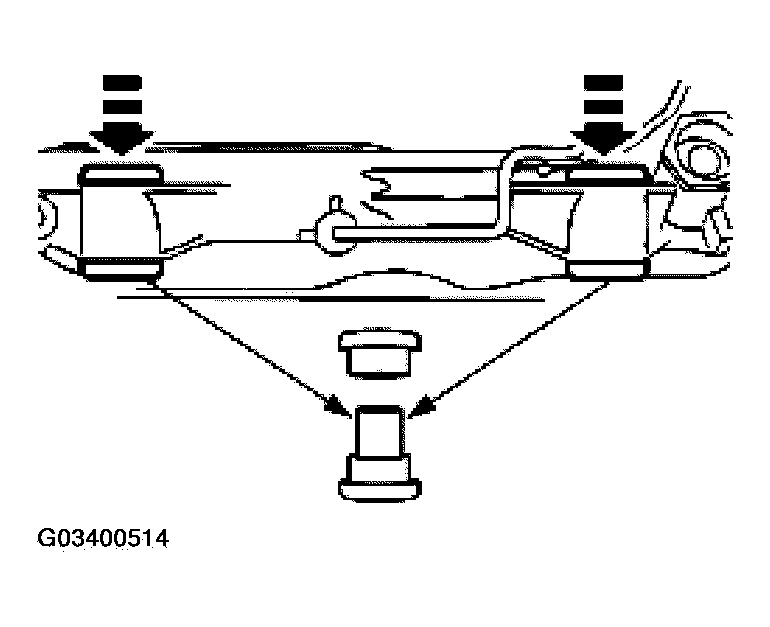

- Install the steering gear mounting bracket housing insulators.
- Install new steering gear mounting bracket housing insulators as necessary.
- The large end of the metal sleeve must be positioned downward.
- Check that the mounting surfaces are clean and free of foreign material.
CAUTION:
Place the steering gear at the center position. Use a crowfoot on the flat of the rack gear to resist rotation and prevent damage to the steering gear during removal and installation of the front wheel spindle tie-rods.
CAUTION:
Use care not to damage the front suspension steering ball stud dust seals. If the front suspension steering ball stud dust seals are damaged, this will allow contamination into the steering gear and cause leakage.
